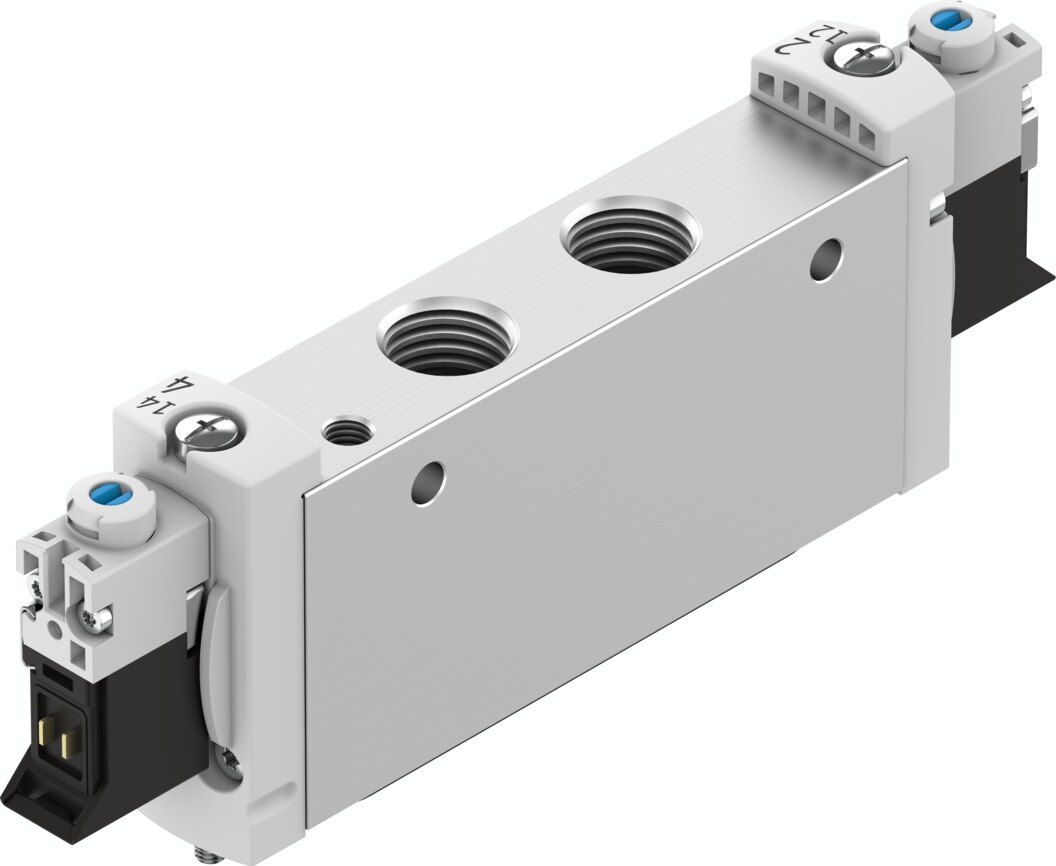

Festo VUVG-L18 Solenoid Valve - 4052568223151

Festo VUVG-L18 Solenoid Valve. Pneumatic solenoid valves (Technique / Pneumatics / Pneumatics - Valves). Supplied under manufacturer part number 574430, EAN 4052568223151, HS code 8481.20, country of origin Germany.

Valve function

5/2-way, double solenoid

Type of actuation

Electrical

Valve size

18 mm

Standard nominal flow rate (standardised to DIN 1343)

1380 l/min

pneumatic working port

G1/4

Operating voltage

24 V DC

Operating pressure

0.15 ... 0.8 MPa (1.5 ... 8 bar)

Design

Piston gate valve

Approval

RCM; c UL us - Recognised (Oil)

CE mark (see declaration of conformity)

To EU EMC Directive; To EU Low Voltage Directive; In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)

To UK RoHS instructions; To UK regulations for electrical equipment

Degree of protection

IP40; IP65; With plug socket

Nominal size

7.3 mm

Exhaust-air function

Can be throttled

Sealing principle

Soft

Mounting position

Any

Manual override

Detenting; Non-detenting; Concealed

Type of piloting

Piloted

Pilot air supply

Internal

Symbol

00992897

lap

Overlap

Pilot pressure

0.15 ... 0.8 MPa (1.5 ... 8 bar)

Switching time reversal

11 ms

Duty cycle

100%

Max. positive test pulse with 0 signal

700 µs

Max. negative test pulse with 1 signal

900 µs

Characteristic coil data

24 V DC: 1.0 W; 24 V DC: low-current phase 0.3 W, high-current phase 1.0 W

Permissible voltage fluctuations

+/-10%

Operating medium

Compressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot medium

Lubricated operation possible (in which case lubricated operation will always be required)

Vibration resistance

Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6

Restrictions for environmental and media temperature

-5 - 50 °C; Without holding current reduction

Shock resistance

Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Cleanroom suitability, measured according to ISO 14644-14

Class 5 according to ISO 14644-1

Media temperature

-5 ... 60 °C

Ambient temperature

-5 ... 60 °C

Product weight

164 g

Electrical connection

Via electrical sub-base

Type of mounting

On manifold rail; With through-hole

Pneumatic connection, port 1

G1/4

Pneumatic connection, port 2

G1/4

Pneumatic connection, port 3

G1/4

Pneumatic connection, port 4

G1/4

Pneumatic connection, port 5

G1/4

Material seals

HNBR; NBR

Material housing

Wrought aluminium alloy

EAN / GTIN

4052568223151

Festo type code

VUVG-L18-B52-T-G14-1P3

Festo order number

574430

Product type

Pneumatic solenoid valves

Product group

Pneumatics

Carbon footprint (EPD)

3.3327 kg CO2e per pcs

Country of origin

Germany

Customs tariff code (EU CN)

84812090

HS code

8481.20

Manufacturer part number

574430

HS Code

8481.20

• EAN 4052568223151
• MPN 574430
