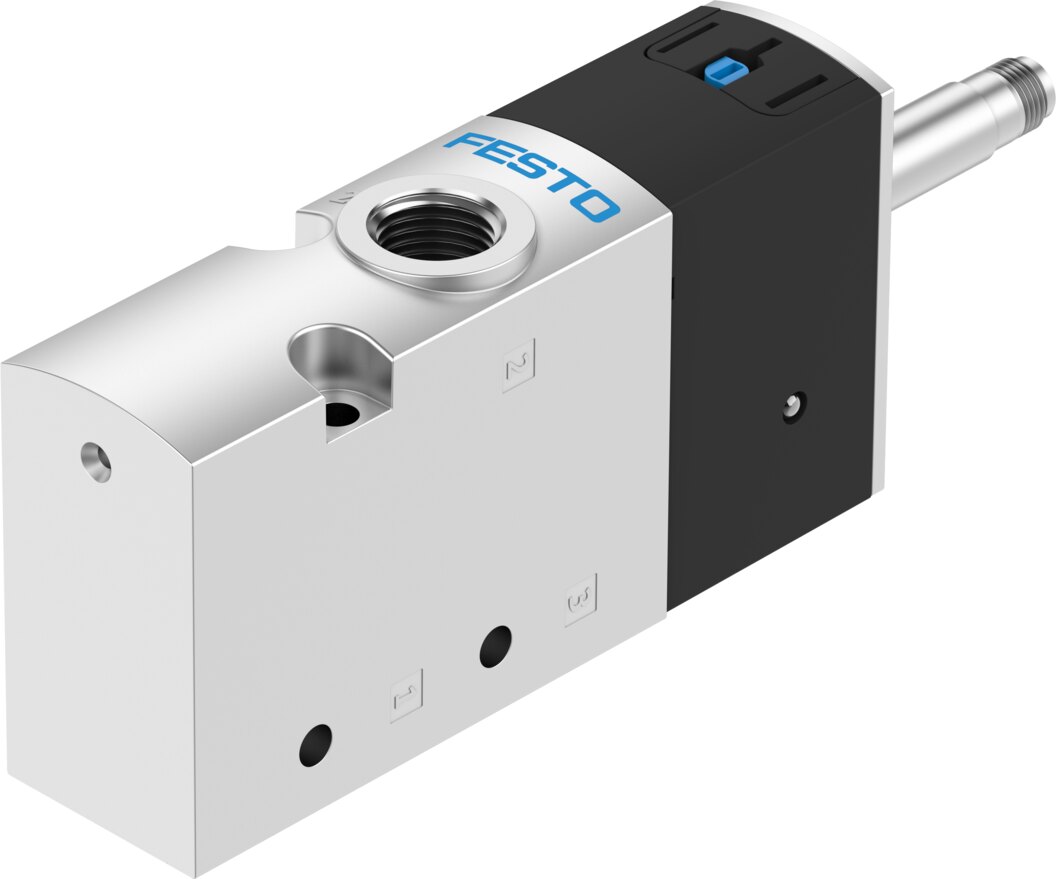

Festo VUVS-L25 Solenoid Valve closed monostable 3/2 - 1/4 NPT", El, Mechanical spring, VUVS-L25-M32C-MD-N14-FN

Festo VUVS-L25 Solenoid Valve closed monostable 3/2. Pneumatic solenoid valves (Technique / Pneumatics / Pneumatics - Valves). Principal data: thread 1/4 NPT", activation El, return Mechanical spring, supplier type designation VUVS-L25-M32C-MD-N14-FN. Supplied under manufacturer part number 8193001, EAN 4052568642174, HS code 8481.20, country of origin China.

Valve function

3/2-way, single solenoid, closed Type of actuation: Electrical Valve size: 26.5 mm Standard nominal flow rate (standardised to DIN 1343): 1000 l/min pneumatic working port: 1/4 NPT Operating pressure: 0.25 ... 0.8 MPa (2.5 ... 8 bar) Design: Piston gate valve Type of reset: Mechanical spring Exhaust-air function: Can be throttled Sealing principle: Soft Mounting position: Any Manual override: Detenting Type of piloting: Piloted Pilot air supply: Internal Flow direction: Non-reversible Symbol: 00991041 lap: Overlap Pilot pressure: 0.25 ... 0.8 MPa (2.5 ... 8 bar) b value: 0.3 C value: 4.8 l/sbar Switching time off: 125 ms Switching time on: 29 ms Explosion protection: The information in the certificate must be observed!; Zone 1 (ATEX); Zone 2 (ATEX); Zone 21 (ATEX); Zone 22 (ATEX) Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4] Note on operating and pilot medium: Lubricated operation possible (in which case lubricated operation will always be required) Vibration resistance: Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 Shock resistance: Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 LABS (PWIS) conformity: VDMA24364-B1/B2-L Cleanroom suitability, measured according to ISO 14644-14: Class 6 according to ISO 14644-1 Media temperature: -10 ... 60 °C Pilot medium: Compressed air to ISO 8573-1:2010 [7:4:4] Ambient temperature: -10 ... 60 °C Product weight: 246 g Breather connection: Not ducted Pneumatic connection, port 1: 1/4 NPT Pneumatic connection, port 2: 1/4 NPT Pneumatic connection, port 3: 1/4 NPT material seals: HNBR; NBR material housing: Die-cast aluminium; painted material piston slide: Wrought aluminium alloy material screws: Galvanised steel EAN / GTIN: 4052568642174 Festo type code: VUVS-L25-M32C-MD-N14-FN Festo order number: 8193001 Product type: Pneumatic solenoid valves Product group: Pneumatics Thread: 1/4 NPT" Activation: El Return: mechanical spring Carbon footprint (EPD): 5.1165 kg CO2e per pcs Country of origin: China Customs tariff code (EU CN): 84812090 HS code: 8481.20 Manufacturer part number: 8193001

HS Code

8481.20

• EAN 4052568642174
• MPN 8193001
