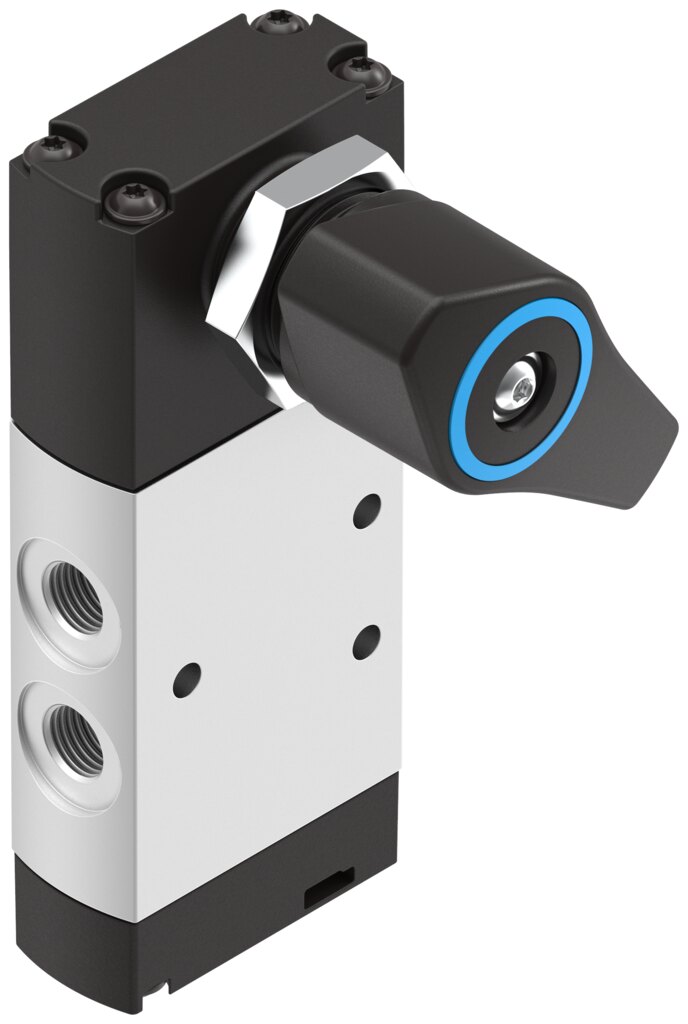

Festo VHEF-ES Selector valve 5/2 - Rotary knob, Rotary knob, 1/8", VHEF-ES-B52-G18
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo VHEF-ES Selector valve 5/2. Pneumatic Valve Manual (Technique / Pneumatics / Pneumatics - Valves). Principal data: return Rotary knob, activation Rotary knob, thread 1/8", supplier type designation VHEF-ES-B52-G18. Supplied under manufacturer part number 4106816, EAN 4052568291310, HS code 8481.20, country of origin Hungary.
Technical Specifications
- Valve function
- 5/2-way, double solenoid
- Type of actuation
- Manual
- Construction width
- 20 mm
- Standard nominal flow rate (standardised to DIN 1343)
- 750 l/min
- pneumatic working port
- G1/8
- Operating pressure
- -0.095 ... 1 MPa (-0.95 ... 10 bar)
- Design
- Piston gate valve
- Nominal size
- 5.2 mm
- Exhaust-air function
- Can be throttled
- Instructions on use
- Actuate manually only
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting
- Type of piloting
- Direct
- Flow direction
- Reversible
- Symbol
- 00995881
- lap
- Overlap
- Max. switching frequency
- 0.5 Hz
- Explosion protection
- Zone 1 (ATEX); Zone 2 (ATEX); Zone 21 (ATEX); Zone 22 (ATEX)
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:-:-]
- Note on operating and pilot medium
- Lubricated operation possible (in which case lubricated operation will always be required)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Media temperature
- -10 ... 60 °C
- Ambient temperature
- -10 ... 60 °C
- Actuating torque
- 0.2 Nm
- Max. force on actuation
- 200 N
- Max. lateral force on actuation
- 200 N
- Product weight
- 235 g
- Type of mounting
- With through-hole
- Pneumatic connection, port 1
- G1/8
- Pneumatic connection, port 2
- G1/8
- Pneumatic connection, port 3
- G1/8
- Pneumatic connection, port 4
- G1/8
- Pneumatic connection, port 5
- G1/8
- Material cover
- Reinforced PA
- Material seals
- NBR
- Material housing
- Anodised wrought aluminium alloy
- Material lever
- Reinforced PA
- EAN / GTIN
- 4052568291310
- Festo type code
- VHEF-ES-B52-G18
- Festo order number
- 4106816
- Product type
- Pneumatic Valve Manual
- Product group
- Pneumatics
- Return
- Rotary knob
- Activation
- Rotary knob
- Thread
- 1/8"
- Working pressure
- 10 bar
- Temperature min
- -10 °C
- Temperature max
- 60 °C
- Carbon footprint (EPD)
- 2.0615 kg CO2e per pcs
- Country of origin
- Hungary
- Customs tariff code (EU CN)
- 84812090
- HS code
- 8481.20
- Manufacturer part number
- 4106816
Standards & Compliance
- HS Code
- 8481.20
Cross References
- EAN 4052568291310
- MPN 4106816
