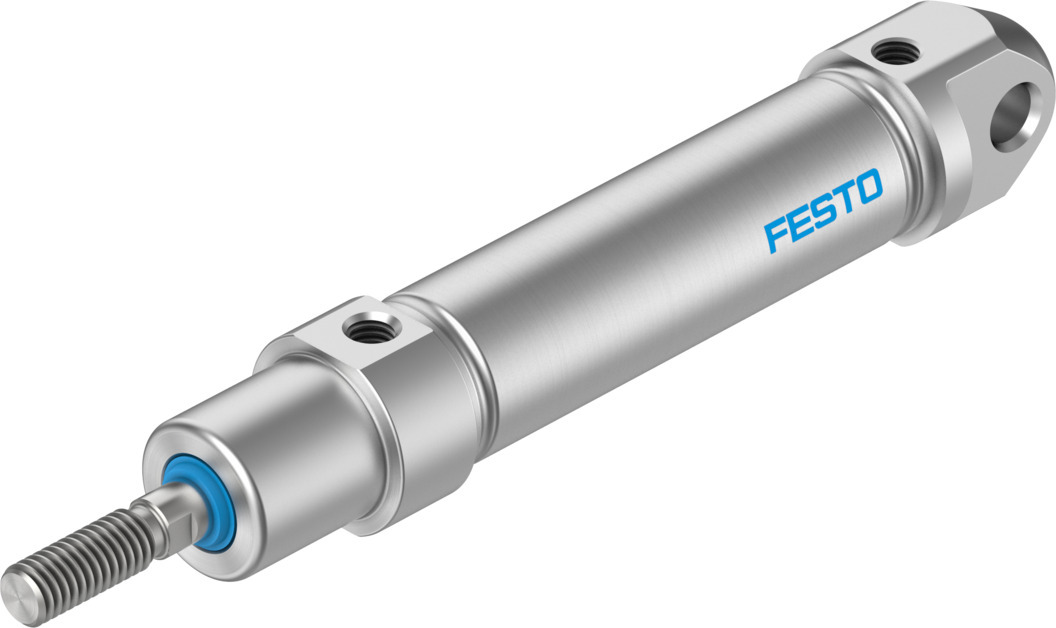

Festo CRDSNU Standard cylinder double-acting - 16mm, M5", 80mm, CRDSNU-B-16-80-P-A-MG-A1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo CRDSNU Standard cylinder double-acting. Pneumatic ISO Air Cylinder (Technique / Pneumatics / Pneumatic Cylinders). Principal data: diameter 16 mm, port size M5", stroke rate 80 mm, supplier type designation CRDSNU-B-16-80-P-A-MG-A1. Supplied under manufacturer part number 8073763, EAN 4052568298036, HS code 8412.31, country of origin India.
Technical Specifications
- Stroke
- 80 mm
- Piston diameter
- 16 mm
- Based on standard
- ISO 6432
- Cushioning
- Elastic cushioning rings/plates at both ends
- Mounting position
- Any
- Design
- Piston; Piston rod; Cylinder barrel
- Position detection
- Via proximity switch
- Symbol
- 00991217
- Operating pressure
- 0.1 ... 1 MPa (1 ... 10 bar)
- Mode of operation
- Double-acting
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Note on operating and pilot medium
- Lubricated operation possible (in which case lubricated operation will always be required)
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Suitable for use with food
- See supplementary material information
- Ambient temperature
- 0 ... 80 °C
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke
- 104 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke
- 121 N
- Moving mass for 0 mm stroke
- 21 g
- Additional moving mass per 10 mm stroke
- 2.2 g
- Basic weight for 0 mm stroke
- 130 g
- Additional weight per 10 mm stroke
- 4.8 g
- Type of mounting
- With accessories
- Pneumatic connection
- M5
- Material cover
- High-alloy stainless steel
- Material piston rod
- High-alloy stainless steel
- Material cylinder barrel
- High-alloy stainless steel
- EAN / GTIN
- 4052568298036
- Festo type code
- CRDSNU-B-16-80-P-A-MG-A1
- Festo order number
- 8073763
- Product type
- Pneumatic ISO Air Cylinder
- Product group
- Pneumatics
- Port Size
- M5"
- Carbon footprint (EPD)
- 2.2986 kg CO2e per pcs
- Country of origin
- India
- Customs tariff code (EU CN)
- 84123100
- HS code
- 8412.31
- Manufacturer part number
- 8073763
