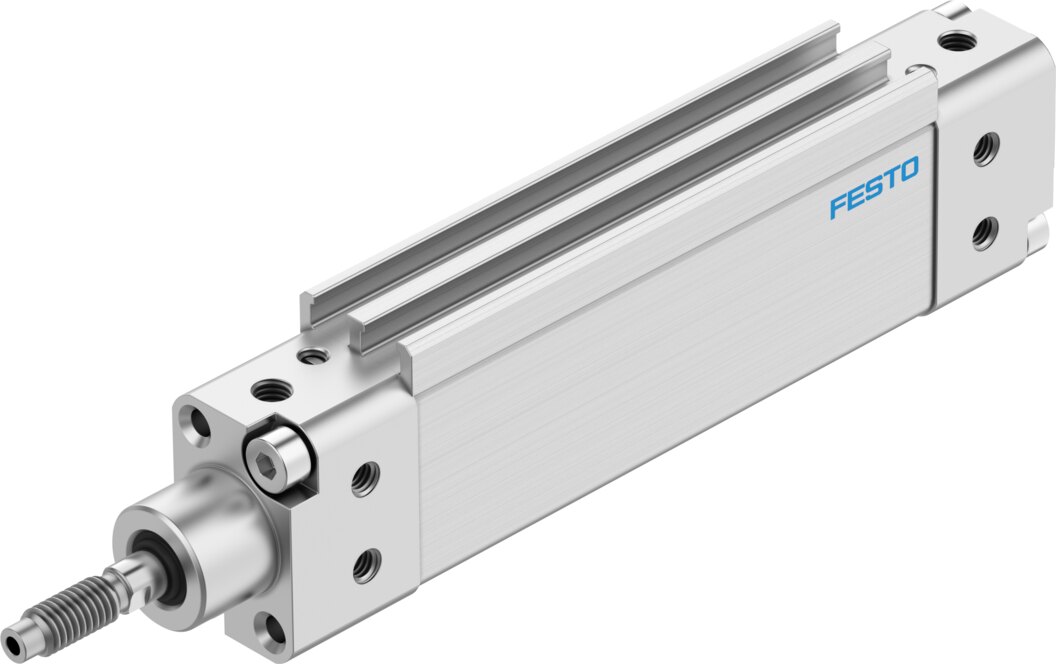

Festo DZH Flat cylinder - 16mm, 100mm, DZH-16-100-PPV-A
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo DZH Flat cylinder. Pneumatics VDMA air cylinder (Technique / Pneumatics / Pneumatic Cylinders). Principal data: diameter 16 mm, stroke rate 100 mm, supplier type designation DZH-16-100-PPV-A. Supplied under manufacturer part number 151149, EAN 4052568116934, HS code 8412.31, country of origin Germany.
Technical Specifications
- Stroke
- 100 mm
- Piston diameter
- 16 mm; Equivalent diameter
- Piston rod thread
- M6
- Torsional backlash at piston rod +/-
- 3.1 deg
- Cushioning
- Pneumatic cushioning, adjustable at both ends
- Mounting position
- Any
- Mode of operation
- Double-acting
- Design
- Piston; Piston rod; Profile barrel
- Position detection
- Via proximity switch
- Symbol
- 00991235
- Variants
- Piston rod at one end
- Protection against torque/guide
- Oval piston
- Operating pressure
- 0.1 ... 1 MPa (1 ... 10 bar)
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Note on operating and pilot medium
- Lubricated operation possible (in which case lubricated operation will always be required)
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -20 ... 80 °C
- Cushioning length
- 14 mm
- Max. torque for protection against torsion
- 0.5 Nm
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke
- 104 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke
- 121 N
- Moving mass
- 60 g
- Product weight
- 269 g
- Additional weight per 10 mm stroke
- 12 g
- Basic weight for 0 mm stroke
- 148 g
- Type of mounting
- With female thread; With accessories
- Pneumatic connection
- M5
- Material cover
- Aluminium
- Material seals
- TPE-U(PU)
- Material housing
- Aluminium
- Material piston seal
- TPE-U(PU)
- Material piston rod
- High-alloy steel
- EAN / GTIN
- 4052568116934
- Festo type code
- DZH-16-100-PPV-A
- Festo order number
- 151149
- Product type
- Pneumatics VDMA air cylinder
- Product group
- Pneumatics
- Diameter
- 16 mm
- Carbon footprint (EPD)
- 5.2885 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84123100
- HS code
- 8412.31
- Manufacturer part number
- 151149
Standards & Compliance
- HS Code
- 8412.31
Cross References
- EAN 4052568116934
- MPN 151149
