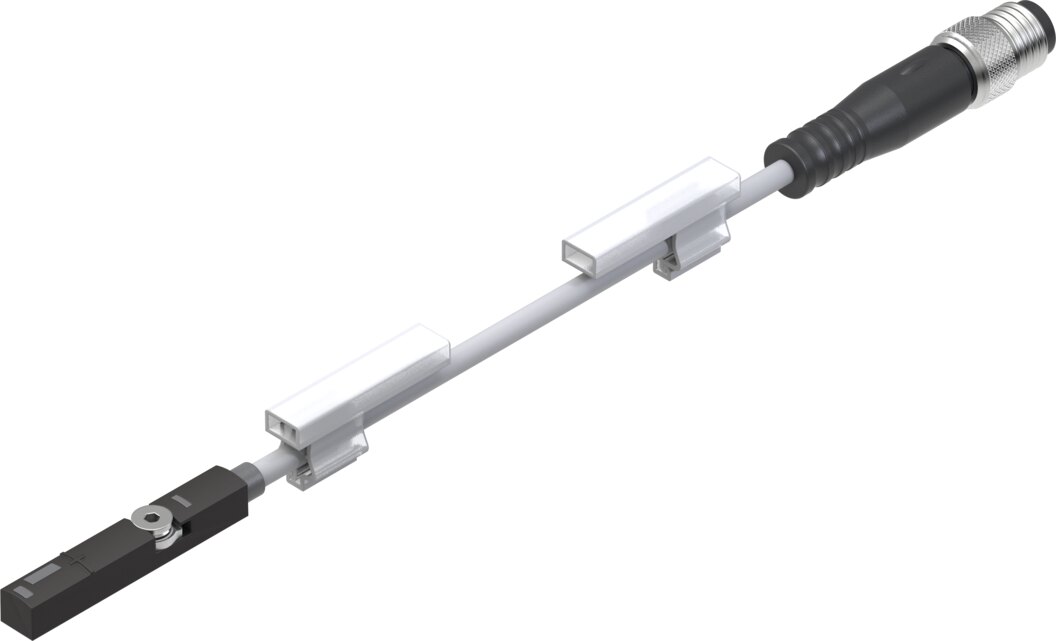

Festo SME Cylinder sensor - 0.3M, SME-8M-DS-24V-K-0,3-M8D
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo SME Cylinder sensor. Pneumatic reed contacts/cables/brackets (Technique / Pneumatics / Pneumatic Cylinders). Principal data: cable length 0.3 m, supplier type designation SME-8M-DS-24V-K-0.3-M8D. Supplied under manufacturer part number 543861, EAN 4052568091774, HS code 8536.50, country of origin Bulgaria.
Technical Specifications
- Symbol
- 00991619
- Approval
- RCM; c UL us - Listed (Oil)
- CE mark (see declaration of conformity)
- To EU EMC Directive; In accordance with EU RoHS Directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC; To UK RoHS instructions
- Special characteristics
- Oil-resistant
- Instructions on use
- https://www.festo.com/Drive-Sensor-Overview
- Measuring principle
- Magnetic reed
- Ambient temperature
- -40 ... 70 °C
- Switching output
- Contacting, bipolar
- Switching element function
- N/O contact
- Max. output current
- 500 mA
- Max. output current using mounting kits
- 80 mA
- Max. switching capacity AC
- 10 VA
- Max. switching capacity DC
- 10 W
- Max. switching capacity DC using mounting kits
- 2.4 W
- Max. switching capacity AC using mounting kits
- 2.4 VA
- Voltage drop
- 1.17 V
- Short circuit current rating
- No
- Overload protection
- Not provided
- Operational voltage range AC
- 5 ... 30 V
- Operational voltage range DC
- 5 ... 30 V
- Reverse polarity protection
- No
- Electrical connection 1, connection type
- Cable with plug
- Electrical connection 1, connector system
- M8x1, A-coded, to EN 61076-2-104
- Electrical connection 1, number of connections/cores
- 3
- Electrical connection 1, type of mounting
- Screw-type lock; Rotatable
- Electrical connection 1, compatible type of mounting
- Compatible with rotatable/non-rotatable screw-type lock
- Electrical connection 1, connection pattern
- 00991155
- Connection outlet orientation
- In-line
- Material electrical contact
- Gold-plated copper alloy
- Material connector housing
- TPE-U(PU)
- Material screw-type lock
- Brass, nickel-plated
- Test conditions cable
- Bending strength: to Festo standard; Test conditions on request; Energy chain: > 5 million cycles, bending radius 75 mm
- Cable length
- 0.3 m
- Cable characteristic
- Standard/suitable for energy chains
- Material cable sheath
- TPE-U(PUR)
- Type of mounting
- Screw-clamped; Insertable in the slot from above
- Product weight
- 8.9 g
- Material housing
- PA; High-alloy stainless steel
- Switching status indication
- Yellow LED
- Ambient temperature with moving cable
- -5 ... 70 °C
- Degree of protection
- IP65; IP68
- LABS (PWIS) conformity
- VDMA24364-B2-L
- EAN / GTIN
- 4052568091774
- Festo type code
- SME-8M-DS-24V-K-0,3-M8D
- Festo order number
- 543861
- Product type
- Pneumatic reed contacts/cables/brackets
- Product group
- Pneumatics
- Carbon footprint (EPD)
- 0.0919 kg CO2e per pcs
- Country of origin
- Bulgaria
- Customs tariff code (EU CN)
- 85365019
- HS code
- 8536.50
- Manufacturer part number
- 543861
