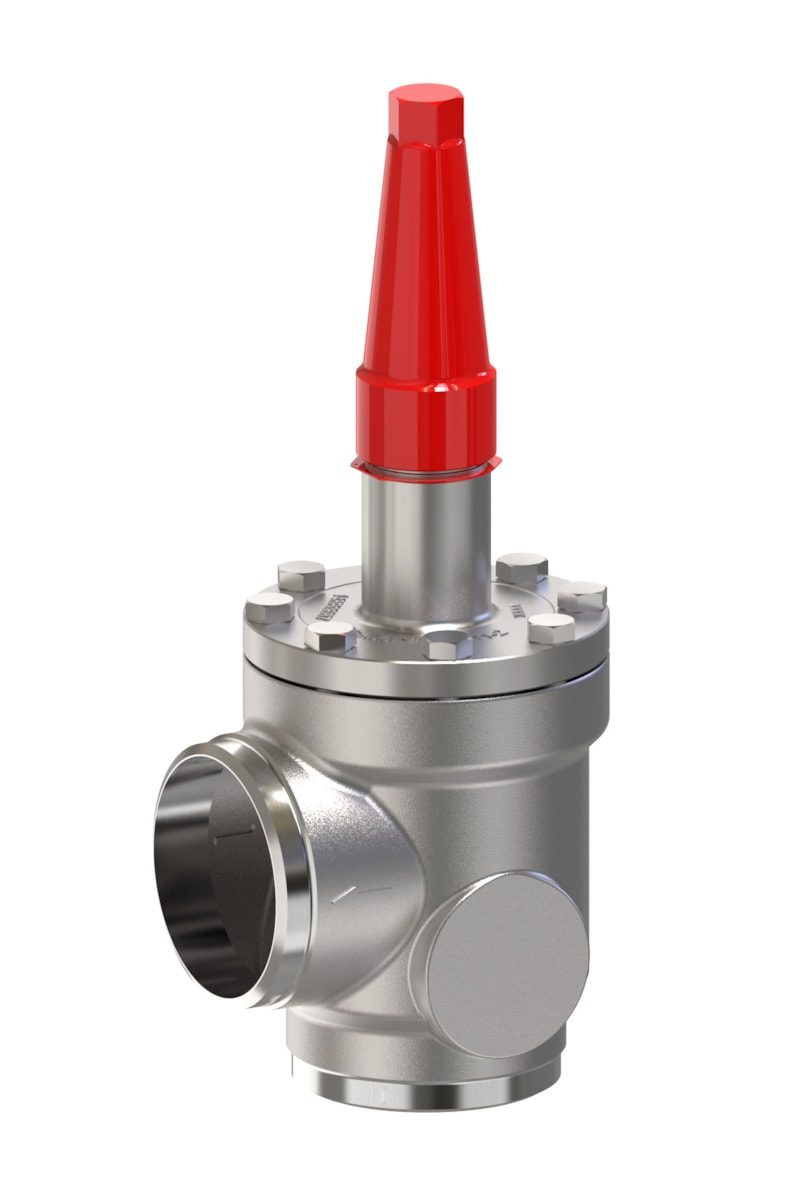

Danfoss SVA-S SS 150 angleway shut-off (stop) valve, 150 mm (6 in) butt weld ASME B 36.19M Schedule 40, stainless steel, 50 bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss SVA-S SS 150 shut-off (stop) valve for the SVL Flexline industrial-refrigeration range, store code 148B7007. Stainless-steel angleway body with butt weld connections both ends to ASME B 36.19M Schedule 40. The SVA-S is a hand-operated shut-off (stop) valve in the Danfoss SVL Flexline range for industrial refrigeration, used to isolate liquid, suction, hot-gas and oil lines. The globe-pattern body uses a back-seating spindle so the packing can be serviced while the plant stays in operation; shut-off is bi-directional (bi-flow). Applicable to R717 (ammonia), R744 (CO2), HFC/HCFC refrigerants and oils. Nominal size 150 mm (6 in); flow coefficient Kv 785 m3/h (Cv 910.6 gal/min). Top equipment: Cap. Maximum working pressure 50 bar g (725 psig); media temperature -60 to 150 C (-76 to 302 F). Net weight 40.7 kg, gross weight 56.5 kg. Conformity assessment PED 2014/68/EU, Category III. Specifications per Danfoss store code 148B7007. EAN 5715162477397.
Technical Specifications
- Type
- SVA-S SS 150 shut-off (stop) valve (SVL Flexline), stainless steel
- Code number
- 148B7007
- Series
- SVA-S SS
- Nominal size
- 150 mm (6 in)
- Flow direction body
- Angleway
- Connection
- butt weld both ends, ASME B 36.19M Schedule 40
- Flow
- bi-directional (bi-flow)
- Top equipment
- Cap
- Flow coefficient Kv
- 785 m3/h (Cv 910.6 gal/min)
- Housing material
- stainless steel
- Maximum working pressure
- 50 bar g (725 psig)
- Media temperature range
- -60 to 150 C (-76 to 302 F)
- Applicable media
- R717 (ammonia), R744 (CO2), HFC/HCFC refrigerants and oils
- Weight
- net weight 40.7 kg, gross weight 56.5 kg
- Conformity assessment
- PED 2014/68/EU, Category III
- Approvals
- CE, EAC
- EAN
- 5715162477397
- Net weight
- 40.7 Kilogram
- Product group
- Shut-off and regulating valves
- Approval
- CE
- Body material
- Stainless steel
- CE mark
- Yes
- China RoHS compliance
- Yes
- Colour Paint
- Reddish brown
- Connection material
- Stainless steel
- Connection standard
- ASME B 36.19M SCHEDULE 40
- Cv value [gal/min]
- 910.6 gal/min
- Direction
- Angleway
- Equipment
- Cap
- EU RoHS compliance
- Yes
- Flow direction
- Bi-flow
- Flow direction indicator
- Embossed 1-way arrow
- Fluid Group
- 1
- Inlet connection size [in]
- 6 in
- Inlet connection size [mm]
- 150 mm
- Inlet connection type
- Butt weld
- Kv value [m³/h]
- 785 m³/h
- Max. Working Pressure [bar]
- 50 bar
- Max. Working Pressure [psig]
- 725 psig
- Neck
- Standard
- Outlet connection size [in]
- 6 in
- Outlet connection size [mm]
- 150 mm
- Outlet connection type
- Butt weld
- PED category
- III
- REACH Candidate List substances
- No
- Refrigerants
- R113
- Temperature range [°C] [max]
- 150 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 302 °F
- Temperature range [°F] [min]
- -76 °F
- Valve version
- Standard version
Standards & Compliance
- Standard
- ASME B 36.19M Schedule 40
- Size / Series
- 150 mm
- Material
- Stainless steel
- Pressure Rating
- 50 bar
- Temperature Range
- -60 to 150 C
- HS Code
- 8481.80
Compatibility & Fitment
Danfoss SVL Flexline SVA-S SS 150. This code is the angleway SVA-S SS 150 with butt weld (ASME B 36.19M Schedule 40) ends and cap top. Socket-weld (ASME B 16.11), EN 10220 and ASME B 36.19M/B 36.10M weld-end preparations are not interchangeable — confirm the mating pipe schedule/OD before ordering. Shares the SVL Flexline platform with SVA-S/SVA-L shut-off, REG-SA/REG-SB regulating, SCA-X/CHV-X check valves and FIA strainers of the same nominal size.
