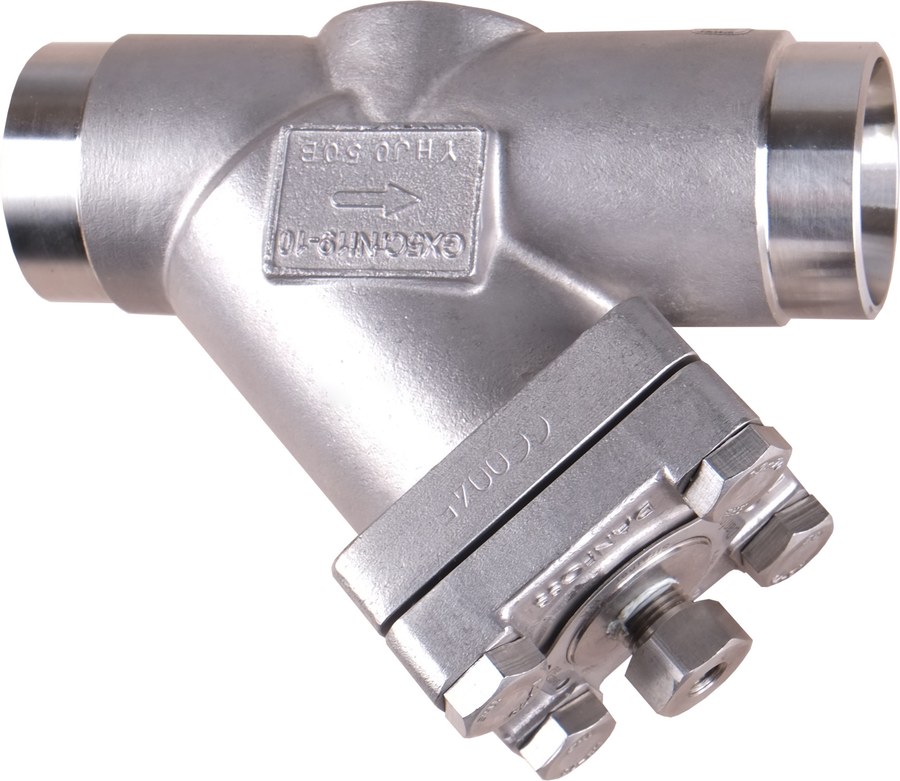

Danfoss FIA SS 32 straightway strainer, 32 mm (1 1/4 in) socket weld ASME B 16.11, stainless steel, 52 bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss FIA SS 32 strainer for the SVL Flexline industrial-refrigeration range, store code 148B7008. Stainless-steel straightway body with socket weld connections both ends to ASME B 16.11. The FIA is an in-line strainer (filter) in the Danfoss SVL Flexline range that protects downstream valves, pumps and compressors from pipe scale and weld debris; the replaceable insert is available in 38, 72, 100, 150, 250 and 500 micron and in a pleated version for higher dirt-holding. Applicable to R717 (ammonia), R744 (CO2), HFC/HCFC refrigerants and oils. Nominal size 32 mm (1 1/4 in); flow coefficient Kv 17.6-24.7 m3/h depending on insert (Cv 77.49-108.75 gal/min). Top equipment: Cover. Maximum working pressure 52 bar g (754 psig); media temperature -60 to 150 C (-76 to 302 F). Net weight 3 kg, gross weight 3.6 kg. Conformity assessment PED 2014/68/EU, Category II. Specifications per Danfoss store code 148B7008. EAN 5702424644857.
Technical Specifications
- Type
- FIA SS 32 strainer (SVL Flexline), stainless steel
- Code number
- 148B7008
- Series
- FIA SS
- Nominal size
- 32 mm (1 1/4 in)
- Flow direction body
- Straightway
- Connection
- socket weld both ends, ASME B 16.11
- Strainer inserts (ordered separately)
- 38 / 72 / 100 / 150 / 250 / 500 micron, plain or pleated
- Top equipment
- Cover
- Flow coefficient Kv (per insert)
- 17.6-24.7 m3/h (Cv 77.49-108.75 gal/min)
- Housing material
- stainless steel
- Maximum working pressure
- 52 bar g (754 psig)
- Media temperature range
- -60 to 150 C (-76 to 302 F)
- Applicable media
- R717 (ammonia), R744 (CO2), HFC/HCFC refrigerants and oils
- Weight
- net weight 3 kg, gross weight 3.6 kg
- Conformity assessment
- PED 2014/68/EU, Category II
- Approvals
- CE
- EAN
- 5702424644857
- Net weight
- 3 Kilogram
- Product group
- Strainers
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Yes
- Colour Paint
- Reddish brown
- Connection material
- Stainless steel
- Connection standard
- ASME B 16.11
- Cv value [gal/min] 100 plain
- 80.13 gal/min
- Cv value [gal/min] 100 pleated
- 105.23 gal/min
- Cv value [gal/min] 150 plain
- 77.49 gal/min
- Cv value [gal/min] 38 plain
- 85.86 gal/min
- Cv value [gal/min] 72 plain
- 83.21 gal/min
- Cv value [gal/min] 72 pleated
- 108.75 gal/min
- Direction
- Straightway
- Equipment
- Cover
- EU RoHS compliance
- Yes
- Flow direction indicator
- Embossed 1-way arrow
- Fluid Group
- 1
- Inlet connection size [in]
- 1 1/4 in
- Inlet connection size [mm]
- 32 mm
- Inlet connection type
- Socket weld
- Kv value [m3/h] µ100 plain
- 17.6 m³/h
- Kv value [m3/h] µ150 plain
- 18.2 m³/h
- Kv value [m3/h] µ150 pleated
- 23.9 m³/h
- Kv value [m3/h] µ250 plain
- 18.9 m³/h
- Kv value [m3/h] µ250 pleated
- 24.7 m³/h
- Kv value [m3/h] µ500 plain
- 18.9 m³/h
- Max. Working Pressure [bar]
- 52 bar
- Max. Working Pressure [psig]
- 754 psig
- Outlet connection size [in]
- 1 1/4 in
- Outlet connection size [mm]
- 32 mm
- Outlet connection type
- Socket weld
- PED category
- II
- REACH Candidate List substances
- No
- Refrigerants
- R113
- Temperature range [°C] [max]
- 150 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 302 °F
- Temperature range [°F] [min]
- -76 °F
- Valve version
- Standard version
Standards & Compliance
- Standard
- ASME B 16.11
- Size / Series
- 32 mm
- Material
- Stainless steel
- Pressure Rating
- 52 bar
- Temperature Range
- -60 to 150 C
- HS Code
- 8421.39
Compatibility & Fitment
Danfoss SVL Flexline FIA SS 32. This code is the straightway FIA SS 32 with socket weld (ASME B 16.11) ends and cover top. Socket-weld (ASME B 16.11), EN 10220 and ASME B 36.19M/B 36.10M weld-end preparations are not interchangeable — confirm the mating pipe schedule/OD before ordering. Shares the SVL Flexline platform with SVA-S/SVA-L shut-off, REG-SA/REG-SB regulating, SCA-X/CHV-X check valves and FIA strainers of the same nominal size.
