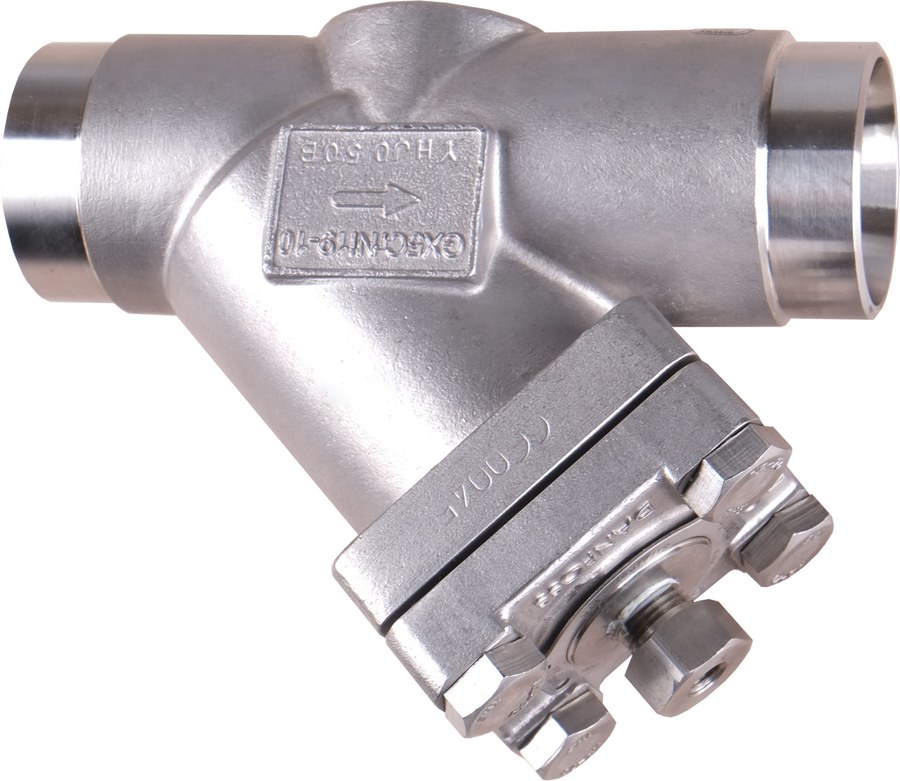

Danfoss FIA SS 50 straightway strainer, 50 mm (2 in) socket weld ASME B 16.11, stainless steel, 52 bar (code 148B7011)
Danfoss · HVAC & Refrigeration · Filters & Driers
Danfoss FIA SS 50 strainer for the SVL Flexline industrial-refrigeration range, store code 148B7011. Stainless-steel straightway body with socket weld connections both ends to ASME B 16.11. The FIA is an in-line strainer (filter) in the Danfoss SVL Flexline range that protects downstream valves, pumps and compressors from pipe scale and weld debris; the replaceable insert is available in 38, 72, 100, 150, 250 and 500 micron and in a pleated version for higher dirt-holding. Applicable to R717 (ammonia), R744 (CO2), HFC/HCFC refrigerants and oils. Nominal size 50 mm (2 in); flow coefficient Kv 34.5-50.2 m3/h depending on insert (Cv 151.9-221.02 gal/min). Top equipment: Cover. Maximum working pressure 52 bar g (754 psig); media temperature -60 to 150 C (-76 to 302 F). Net weight 3.45 kg, gross weight 3.85 kg. Conformity assessment PED 2014/68/EU, Category II. Specifications per Danfoss store code 148B7011. EAN 5715162460665.
Specifications
- Part number
- 148B7011
- HS code
- 8421.39
- Material
- Stainless steel
- Pressure rating
- 52 bar
- Temperature range
- -60 to 150 C
- Standard
- ASME B 16.11
- Standard size
- 50 mm
Compatibility
Danfoss SVL Flexline FIA SS 50. This code is the straightway FIA SS 50 with socket weld (ASME B 16.11) ends and cover top. Socket-weld (ASME B 16.11), EN 10220 and ASME B 36.19M/B 36.10M weld-end preparations are not interchangeable — confirm the mating pipe schedule/OD before ordering. Shares the SVL Flexline platform with SVA-S/SVA-L shut-off, REG-SA/REG-SB regulating, SCA-X/CHV-X check valves and FIA strainers of the same nominal size.
Standards
- ASME B 16.11
- PED 2014/68/EU
Approvals
