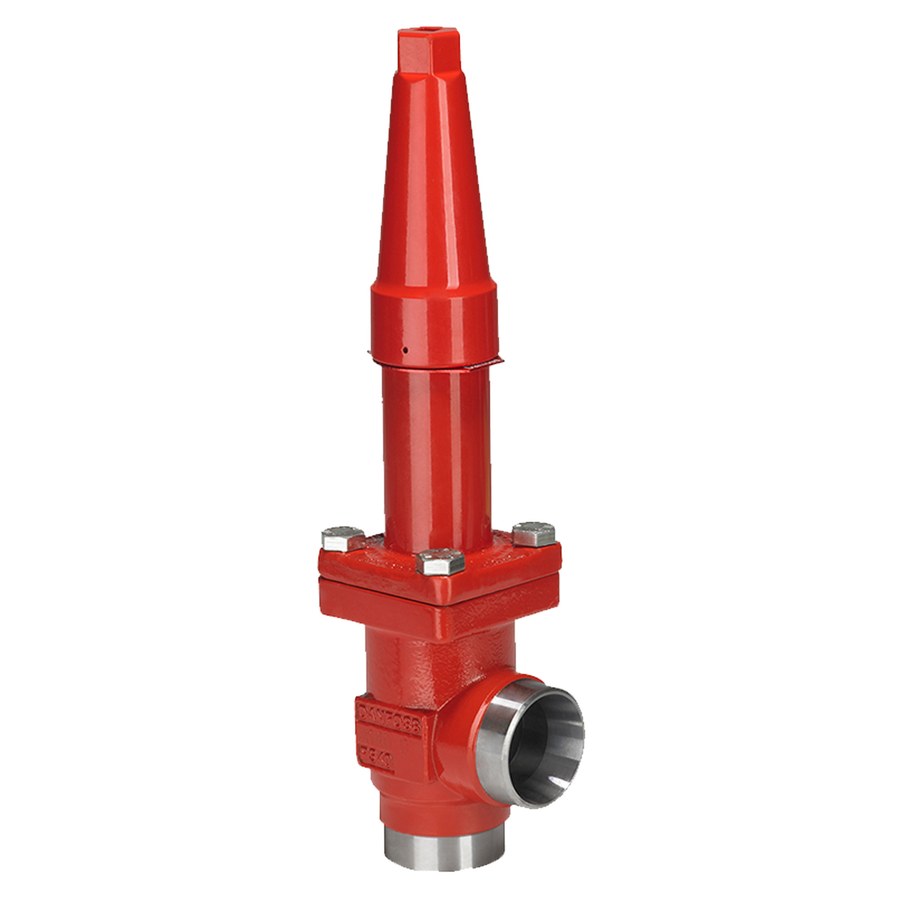

Danfoss SVA-L 20 angleway shut-off valve, 20 mm (3/4 in) NPT threaded, cap, 52 bar, steel
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss SVA-L 20 manually operated shut-off (stop) valve for the SVL Flexline industrial-refrigeration range. Long-neck (SVA-L) globe valve with angleway body and NPT threaded connections to ANSI/ASME B1.20.1; 20 mm (3/4 in) nominal size. Bi-flow; maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F); Kv 10 m3/h. Steel body suits HCFC, non-flammable HFC, R717 (ammonia) and R744 (CO2) systems. Fitted with a cap as supplied. Order a matching SVL Flexline valve body of the same size and direction when converting a welded housing, or install this complete valve directly into a threaded line.
Technical Specifications
- Type
- Shut-off valve, SVA-L 20 (long neck)
- Code number
- 148B5365
- Series
- SVL Flexline (SVA-L shut-off / stop valve)
- Product group
- Shut-off and regulating valves
- Nominal size
- 20 mm (3/4 in)
- Direction
- Angleway
- Connection
- NPT threaded (inlet and outlet)
- Connection standard
- ANSI/ASME B1.20.1
- Equipment
- Cap
- Flow
- Bi-flow
- Body material
- Steel
- Connection material
- Steel
- Kv value
- 10 m3/h (Cv 11.6 gal/min)
- Maximum working pressure
- 52 bar (754 psig)
- Media temperature range
- -60 to 150 C (-76 to 302 F)
- Applicable media
- HCFC, HFC, R717 (ammonia), R744 (CO2)
- Conformity assessment
- PED Article 4, paragraph 3 (sound engineering practice)
- Approvals
- CE, EAC
- Net weight
- 1.62 kg
- EAN
- 5702428469036
Standards & Compliance
- Size / Series
- 20 mm
- Material
- Steel
- Pressure Rating
- 52 bar
- Temperature Range
- -60 to 150 C
- HS Code
- 8481.80
Compatibility & Fitment
Danfoss SVA-L (long neck) shut-off valve for the SVL Flexline industrial-refrigeration range. Select by nominal size, body direction (angleway / straightway), connection (weld standard) and top equipment (handwheel or cap). The SVA-L is the long-neck variant of the SVA family; the manually operated globe valve seats on back-seating and is bi-flow. Butt weld, socket weld and NPT threaded end variants are separate codes and are not interchangeable; EN and ASME weld-end variants are also separate codes — confirm the mating pipe standard before ordering.
