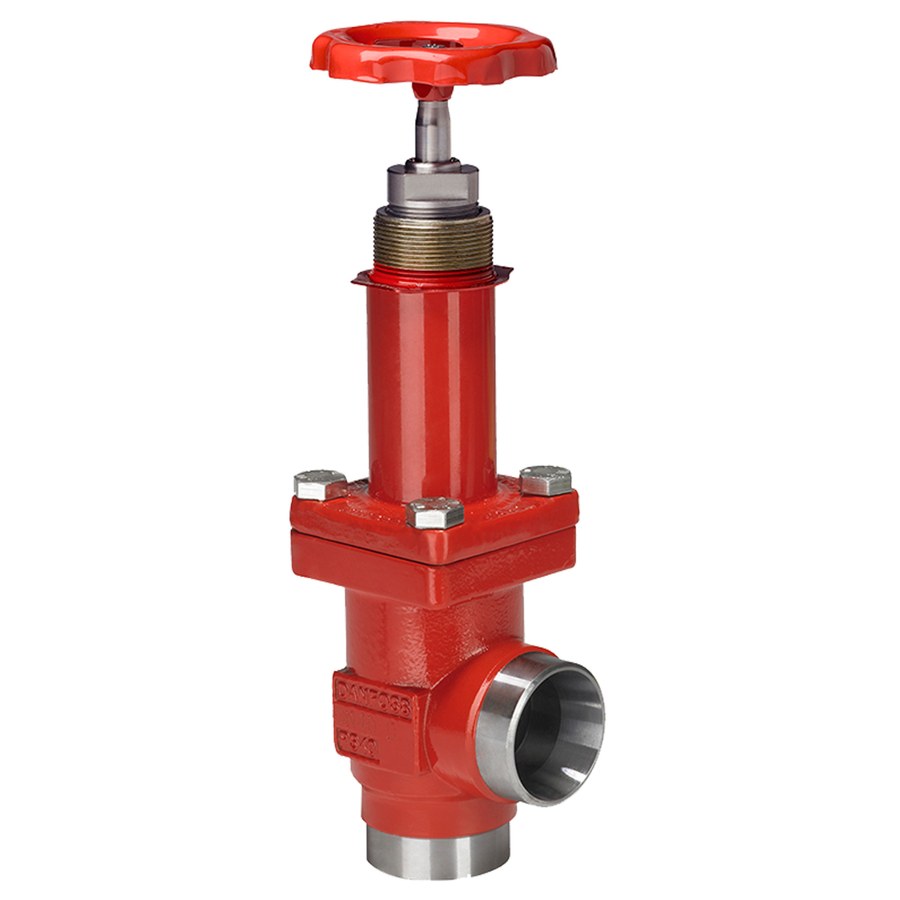

Danfoss SVA-L 20 angleway shut-off valve, 20 mm (3/4 in) NPT threaded, handwheel, 52 bar, steel (code 148B5364)
Danfoss · HVAC & Refrigeration · Globe Valves
Danfoss SVA-L 20 manually operated shut-off (stop) valve for the SVL Flexline industrial-refrigeration range. Long-neck (SVA-L) globe valve with angleway body and NPT threaded connections to ANSI/ASME B1.20.1; 20 mm (3/4 in) nominal size. Bi-flow; maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F); Kv 10 m3/h. Steel body suits HCFC, non-flammable HFC, R717 (ammonia) and R744 (CO2) systems. Fitted with a handwheel as supplied. Order a matching SVL Flexline valve body of the same size and direction when converting a welded housing, or install this complete valve directly into a threaded line.
Specifications
- Part number
- 148B5364
- HS code
- 8481.80
- Material
- Steel
- Pressure rating
- 52 bar
- Temperature range
- -60 to 150 C
- Standard size
- 20 mm
Compatibility
Danfoss SVA-L (long neck) shut-off valve for the SVL Flexline industrial-refrigeration range. Select by nominal size, body direction (angleway / straightway), connection (weld standard) and top equipment (handwheel or cap). The SVA-L is the long-neck variant of the SVA family; the manually operated globe valve seats on back-seating and is bi-flow. Butt weld, socket weld and NPT threaded end variants are separate codes and are not interchangeable; EN and ASME weld-end variants are also separate codes — confirm the mating pipe standard before ordering.
Approvals
