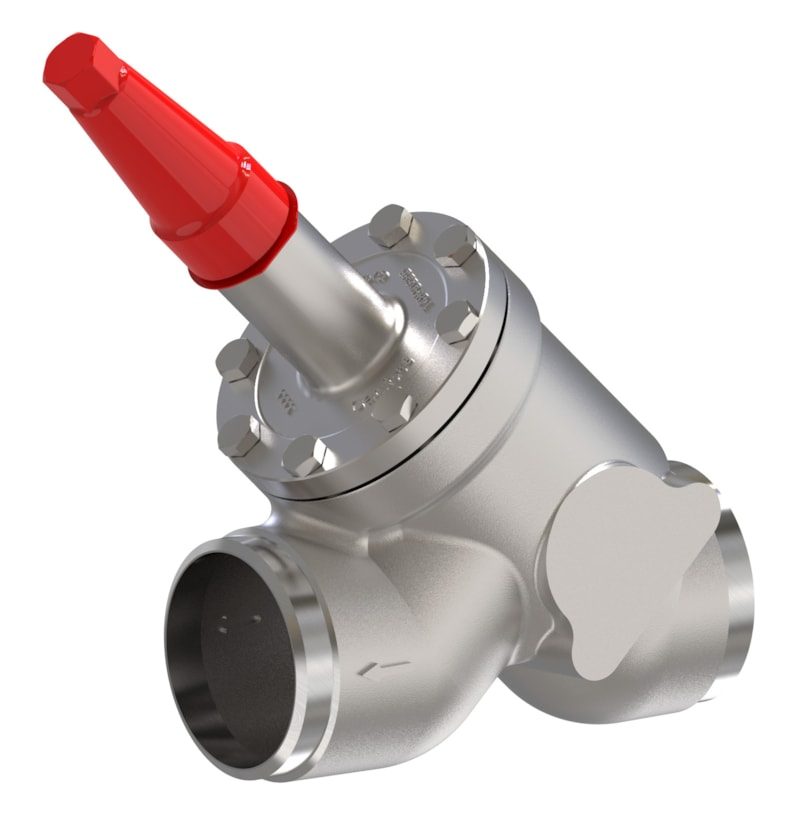

Danfoss SVA-S SS 100 straightway shut-off (stop) valve, 100 mm (4 in) butt weld ASME B 36.19M Schedule 40, stainless steel, 50 bar (code 148B7006)
Danfoss · HVAC & Refrigeration · Globe Valves
Danfoss SVA-S SS 100 shut-off (stop) valve for the SVL Flexline industrial-refrigeration range, store code 148B7006. Stainless-steel straightway body with butt weld connections both ends to ASME B 36.19M Schedule 40. The SVA-S is a hand-operated shut-off (stop) valve in the Danfoss SVL Flexline range for industrial refrigeration, used to isolate liquid, suction, hot-gas and oil lines. The globe-pattern body uses a back-seating spindle so the packing can be serviced while the plant stays in operation; shut-off is bi-directional (bi-flow). Applicable to R717 (ammonia), R744 (CO2), HFC/HCFC refrigerants and oils. Nominal size 100 mm (4 in); flow coefficient Kv 313 m3/h (Cv 363 gal/min). Top equipment: Cap. Maximum working pressure 50 bar g (725 psig); media temperature -60 to 150 C (-76 to 302 F). Net weight 21.4 kg, gross weight 24.8 kg. Conformity assessment PED 2014/68/EU, Category II. Specifications per Danfoss store code 148B7006. EAN 5715162460610.
Specifications
- Part number
- 148B7006
- HS code
- 8481.80
- Material
- Stainless steel
- Pressure rating
- 50 bar
- Temperature range
- -60 to 150 C
- Standard
- ASME B 36.19M Schedule 40
- Standard size
- 100 mm
Compatibility
Danfoss SVL Flexline SVA-S SS 100. This code is the straightway SVA-S SS 100 with butt weld (ASME B 36.19M Schedule 40) ends and cap top. Socket-weld (ASME B 16.11), EN 10220 and ASME B 36.19M/B 36.10M weld-end preparations are not interchangeable — confirm the mating pipe schedule/OD before ordering. Shares the SVL Flexline platform with SVA-S/SVA-L shut-off, REG-SA/REG-SB regulating, SCA-X/CHV-X check valves and FIA strainers of the same nominal size.
Standards
- ASME B 36.19M Schedule 40
- PED 2014/68/EU
