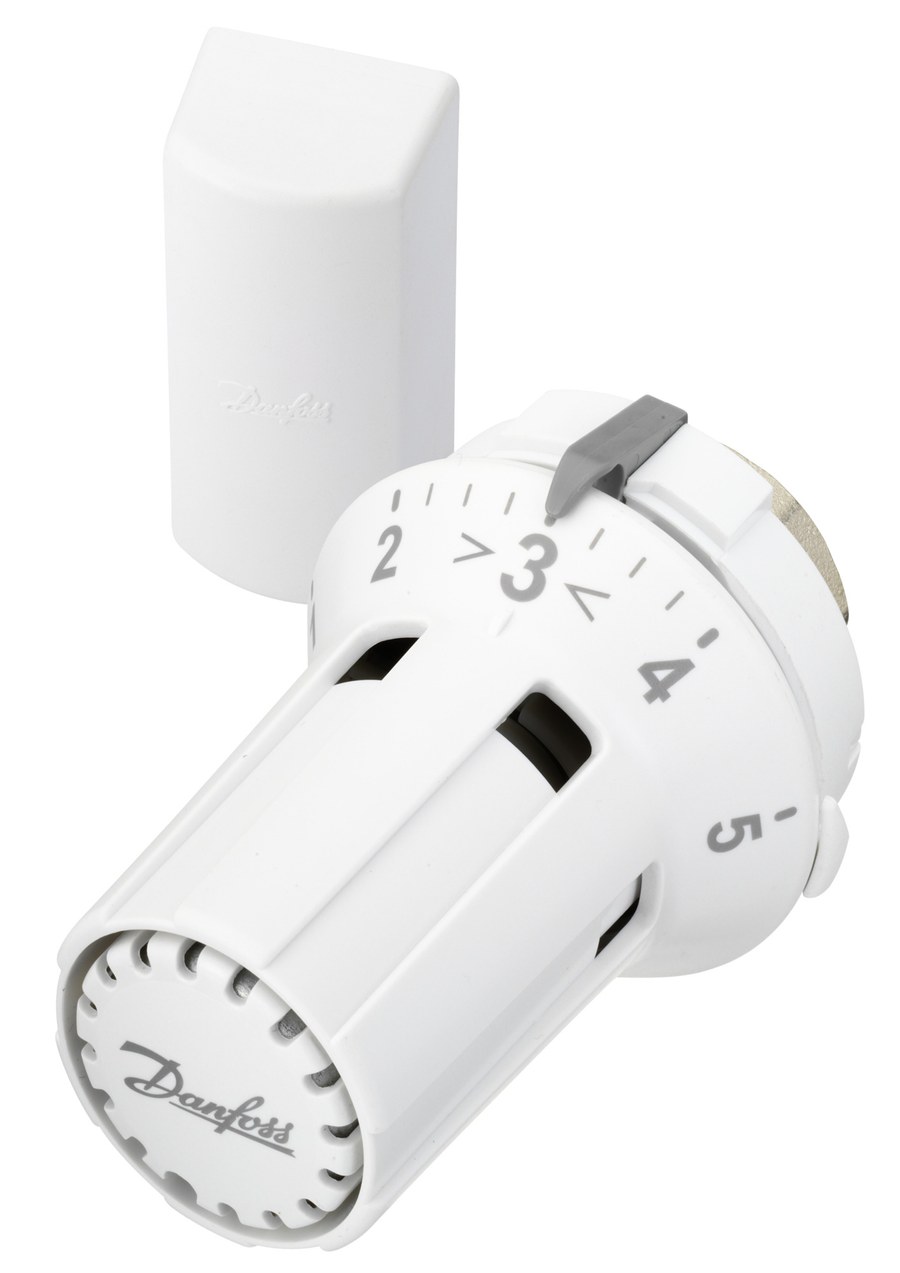

Danfoss RAW-K thermostatic radiator sensor — liquid-charged, remote sensor, 8–28 °C, M30X1.5 connection

Danfoss RAW-K Sensors thermostatic radiator sensor, OEM order code 013G5032 — a remote (off-valve) thermostatic operator: the liquid-charged sensing bulb reads the room air and is linked to the valve head by a 2 m capillary tube, for radiators that are boxed in, curtained or close to the floor. It fits Danfoss and other manufacturers' radiator valves with an M30x1.5 connection via the M30x1.5 connection (metal nut fixing) and needs no wiring or batteries. Temperature setting range 8 °C to 28 °C; sensing charge liquid; housing colour White RAL 9016. The head provides built-in frost protection (holds a minimum setting at the snowflake position), maximum/minimum temperature limiting and set-point locking with concealed pins under the dial. Genuine Danfoss part; technical data quoted verbatim from store.danfoss.com (code 013G5032). OEM P/N 013G5032, EAN 5702420020709. HS 9032.10 (thermostats).

Code number

013G5032 Brand: Danfoss Type: RAW-K Sensors Product group: Radiator Sensors Sensor version: RAW-K 5032 Sensor design: RAW-K Function: Self-acting thermostatic radiator operator (sensor head) Sensor charge medium: Liquid (self-acting, no power) Sensor type: Remote sensor Temperature setting range: 8 °C to 28 °C Connection to valve: M30x1.5 Sensor / adjuster connection: Metal nut Capillary (remote) tube length: 2 m Frost protection: Yes Temperature limiting & locking: Yes Shut-off (0 / closed) position: No Colour: White RAL 9016 Feature description: For non Danfoss valves; temperature limitation feature CE mark: No REACH candidate-list substances: Lead (CAS no. 7439-92-1) Net weight: 0.22 kg Gross weight: 0.222 kg EAN: 5702420020709 HS code: 9032.10 (thermostats)

Material

Housing polymer (White RAL 9016); liquid-charged thermostatic sensing element

Temperature Range

setting 8 °C to 28 °C

HS Code

9032.10
