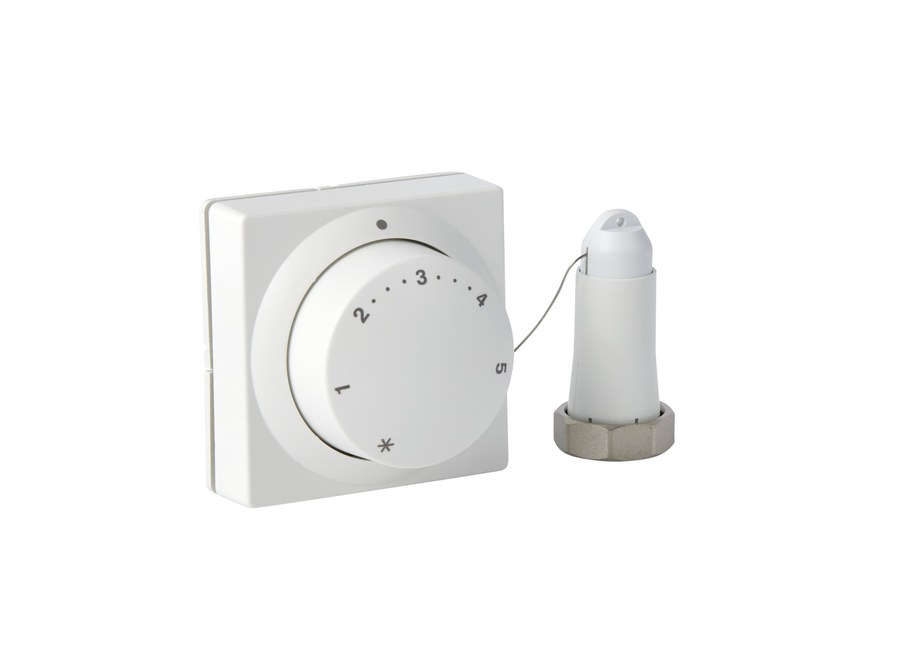

Danfoss RA Remote Setting thermostatic radiator remote adjuster — liquid-charged, remote temperature adjuster, 8–28 °C, M30X1.5 connection
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss RA Remote Setting thermostatic radiator remote adjuster, OEM order code 013G5067 — a remote temperature adjuster: the liquid-charged element is set on a wall-mounted dial and linked to the valve by a 2 m capillary, so the radiator valve is adjusted from an accessible position while the sensing point stays at the valve. It fits Danfoss and other manufacturers' radiator valves with an M30x1.5 connection via the M30x1.5 connection (metal nut fixing) and needs no wiring or batteries. Temperature setting range 8 °C to 28 °C; sensing charge liquid; housing colour White RAL 9016. The head provides built-in frost protection (holds a minimum setting at the snowflake position), maximum/minimum temperature limiting and set-point locking with concealed pins under the dial. Genuine Danfoss part; technical data quoted verbatim from store.danfoss.com (code 013G5067). OEM P/N 013G5067, EAN 5702420119830. HS 9032.10 (thermostats).
Technical Specifications
- Code number
- 013G5067 Brand: Danfoss Type: RA Remote Setting Product group: Radiator Sensors Sensor version: RA 5067 Sensor design: M30 Function: Self-acting thermostatic radiator remote adjuster Sensor charge medium: Liquid (self-acting, no power) Sensor type: Remote temp. adjuster Temperature setting range: 8 °C to 28 °C Connection to valve: M30x1.5 Sensor / adjuster connection: Metal nut Capillary (remote) tube length: 2 m Frost protection: Yes Temperature limiting & locking: Yes Shut-off (0 / closed) position: No Colour: White RAL 9016 Feature description: Remote temperature adjuster with frost protection, limiting and locking of temperature set-point CE mark: No REACH candidate-list substances: Lead (CAS no. 7439-92-1) Net weight: 0.274 kg Gross weight: 0.274 kg EAN: 5702420119830 HS code: 9032.10 (thermostats)
Standards & Compliance
- Material
- Housing polymer (White RAL 9016); liquid-charged thermostatic sensing element
- Temperature Range
- setting 8 °C to 28 °C
- HS Code
- 9032.10
Compatibility & Fitment
Thermostatic remote adjuster for Danfoss and other manufacturers' radiator valves with an M30x1.5 connection (M30x1.5 valve connection). Route the 2 m capillary and fix with the clamping ring / nut supplied. Confirm the valve connection (M30x1.5) before ordering. Self-acting — no power supply required. Setting range 8 °C–28 °C.
