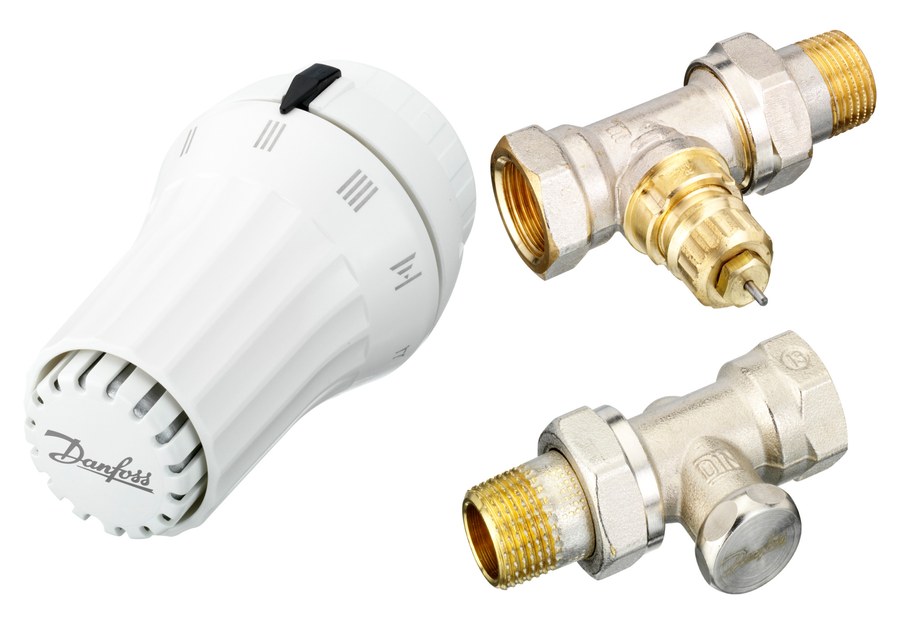

Danfoss RAE + RA-FN + RLV radiator valve set (TRV set) — Straight DN 15, 3-Elements, RAE sensor

Danfoss RAE + RA-FN + RLV thermostatic radiator valve set (TRV set), OEM order code 013G5084 — a matched 3-elements package for a single radiator: Includes RAE sensor, RA-FN straight valve and RLV-S straight lockshield valve. Straight pattern, valve size DN 15. The RAE sensor is liquid-charged and self-acting (setting range 8–28 °C °C, no power or wiring); the RLV return valve allows the radiator to be balanced and isolated for service. Genuine Danfoss parts; technical data quoted verbatim from store.danfoss.com (code 013G5084). OEM P/N 013G5084, EAN 5702420069616. HS 8481.80.

Code number

013G5084

Brand

Danfoss

Type

RAE + RA-FN + RLV

Product group

TRV set

Set contents

3-elements — Includes RAE sensor, RA-FN straight valve and RLV-S straight lockshield valve.

Design

Straight

Valve size

DN 15

Valve type

RA-FN

Lockshield / return valve type

RLV

Sensor-to-valve connection

RA

Sensor design

RAE (liquid-charged, self-acting)

Sensor temperature setting range

8 °C to 28 °C

Tailpiece

With o-ring

Colour

White RAL 9016

REACH candidate-list substances

Lead (CAS no. 7439-92-1)

Net weight

0.616 kg

EAN

5702420069616

HS code

8481.80 (taps, cocks, valves)

CE mark

No

Connection type to valve

RA

Contents of set

3-elements

Description

Includes RAE sensor, RA-FN straight valve and RLV-S straight lockshield valve.

Packaging type

Box

RLV type

RLV

Sensor media

Liquid

Sensor setting temperature [°C] [Max]

28 °C

Sensor setting temperature [°C] [Min]

8 °C

Sensor type

Built-in sensor

Tailpiece type

With o-ring

UL mark

No

Material

Nickel-plated brass valve body; liquid-charged polymer thermostatic sensor

Temperature Range

sensor setting 8 °C to 28 °C

HS Code

8481.80
