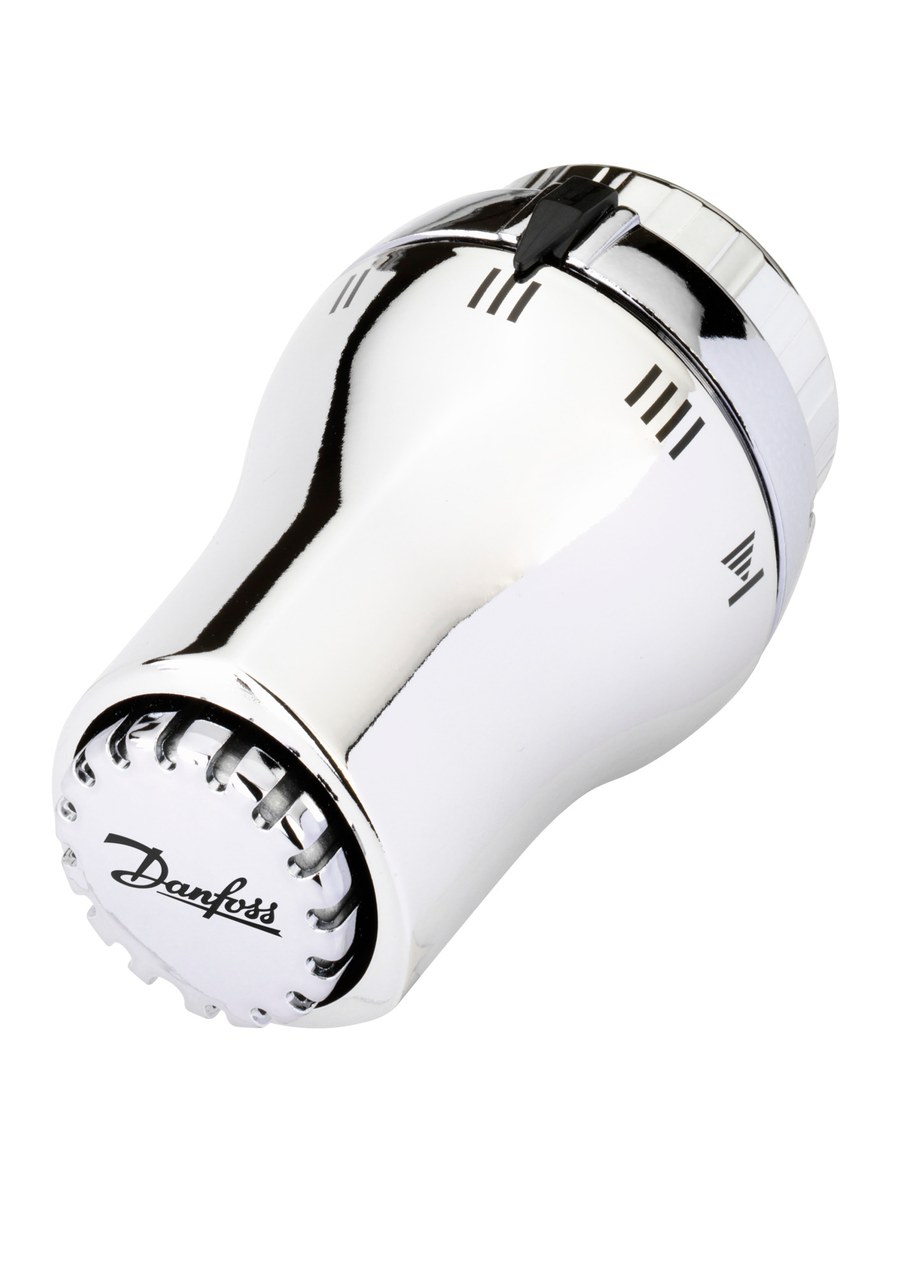

Danfoss RAS-D thermostatic radiator sensor — liquid-charged, built-in sensor, 8–28 °C, RA connection

Danfoss RAS-D Sensors thermostatic radiator sensor, OEM order code 013G5128 — a self-acting thermostatic operator (sensor head): the liquid-charged sensing element expands and contracts with room temperature and drives the valve cone, throttling flow to hold the set room temperature with no external power. It fits Danfoss RA radiator valves via the RA connection (ra-click fixing) and needs no wiring or batteries. Temperature setting range 8 °C to 28 °C; sensing charge liquid; housing colour Chrome. The head provides built-in frost protection (holds a minimum setting at the snowflake position), maximum/minimum temperature limiting and set-point locking with concealed pins under the dial, a positive shut-off (0) position that fully closes the valve. Genuine Danfoss part; technical data quoted verbatim from store.danfoss.com (code 013G5128). OEM P/N 013G5128, EAN 5702420049984. HS 9032.10 (thermostats). Modulates refrigerant flow to the evaporator in response to superheat at the evaporator outlet.

Code number

013G5128 Brand: Danfoss Type: RAS-D Sensors Product group: Radiator Sensors Sensor version: RAS-D 5128 Sensor design: RAS-D Function: Self-acting thermostatic radiator operator (sensor head) Sensor charge medium: Liquid (self-acting, no power) Sensor type: Built-in sensor Temperature setting range: 8 °C to 28 °C Connection to valve: RA Sensor / adjuster connection: RA-click Frost protection: Yes Temperature limiting & locking: Yes Shut-off (0 / closed) position: Yes Colour: Chrome Feature description: For use when design radiators are the primary heating source. Temperature lock and limitation feature. CE mark: No REACH candidate-list substances: No Net weight: 0.162 kg Gross weight: 0.162 kg EAN: 5702420049984 HS code: 9032.10 (thermostats)

Material

Housing polymer (Chrome); liquid-charged thermostatic sensing element

Temperature Range

setting 8 °C to 28 °C

HS Code

9032.10
