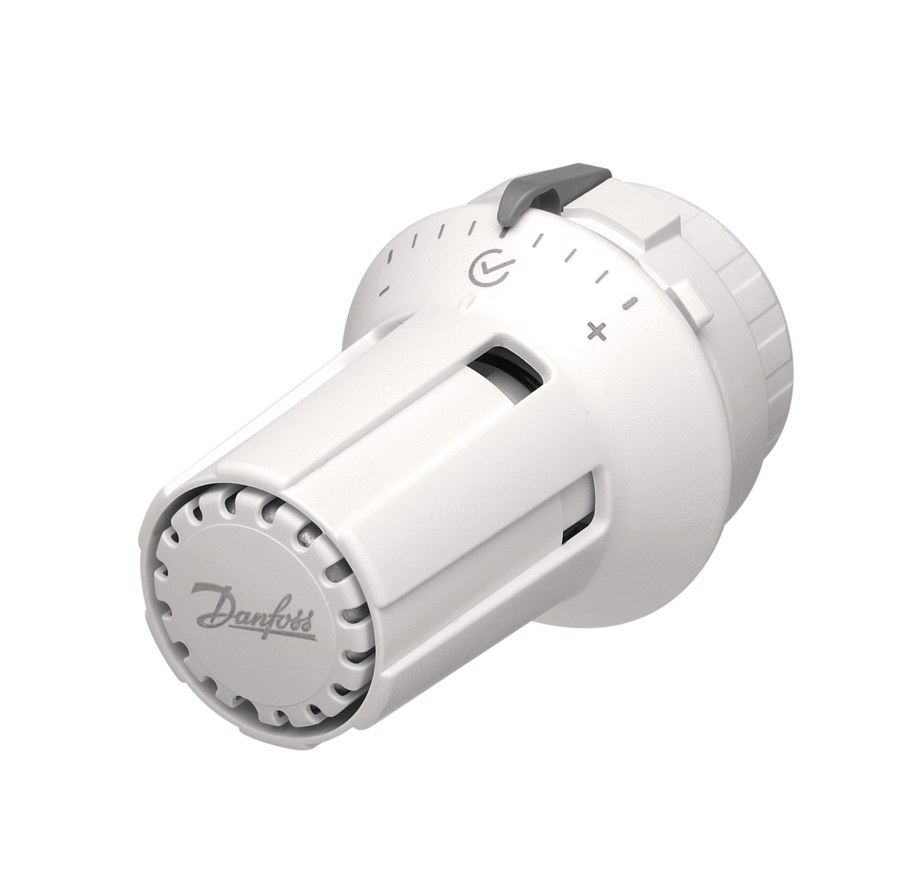

Danfoss React™ thermostatic radiator sensor — liquid-charged, built-in sensor, 8–28 °C, RA connection

Danfoss Danfoss React™ Sensors thermostatic radiator sensor, OEM order code 013G5144 — a self-acting thermostatic operator (sensor head): the liquid-charged sensing element expands and contracts with room temperature and drives the valve cone, throttling flow to hold the set room temperature with no external power. It fits Danfoss RA radiator valves via the RA connection (ra-click fixing) and needs no wiring or batteries. Temperature setting range 8 °C to 28 °C; sensing charge liquid; housing colour White RAL 9016. The head provides built-in frost protection (holds a minimum setting at the snowflake position), maximum/minimum temperature limiting and set-point locking with concealed pins under the dial. Genuine Danfoss part; technical data quoted verbatim from store.danfoss.com (code 013G5144). OEM P/N 013G5144, EAN 5715162434529. HS 9032.10 (thermostats). Modulates refrigerant flow to the evaporator in response to superheat at the evaporator outlet.

Code number

013G5144 Brand: Danfoss Type: Danfoss React™ Sensors Product group: Radiator Sensors Sensor version: React +/- Sensor design: React +/- Function: Self-acting thermostatic radiator operator (sensor head) Sensor charge medium: Liquid (self-acting, no power) Sensor type: Built-in sensor Temperature setting range: 8 °C to 28 °C Connection to valve: RA Sensor / adjuster connection: RA-click Frost protection: Yes Temperature limiting & locking: Yes Shut-off (0 / closed) position: No Colour: White RAL 9016 Feature description: White socket; temperature limitation feature CE mark: No EU RoHS compliance: Yes REACH candidate-list substances: No Net weight: 0.131 kg Gross weight: 0.15 kg EAN: 5715162434529 HS code: 9032.10 (thermostats)

Material

Housing polymer (White RAL 9016); liquid-charged thermostatic sensing element

Temperature Range

setting 8 °C to 28 °C

HS Code

9032.10
