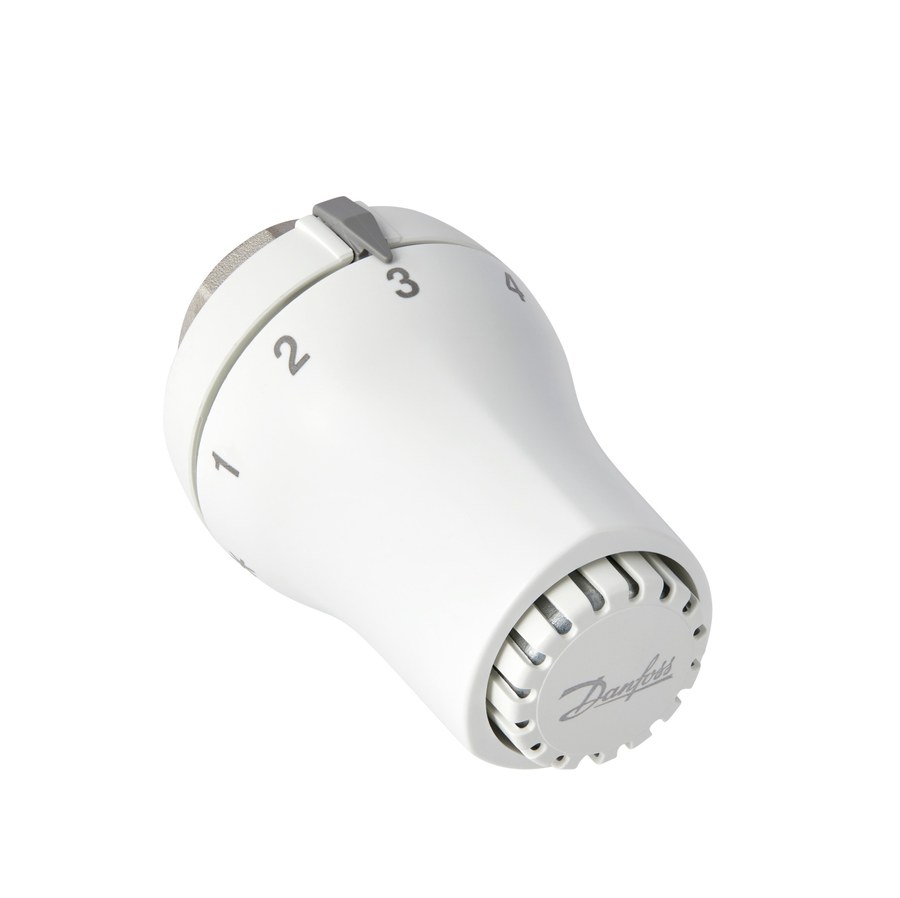

Danfoss RAS-DK thermostatic radiator sensor — liquid-charged, built-in sensor, 8–28 °C, M30X1.5 connection

Danfoss RAS-DK Sensors thermostatic radiator sensor, OEM order code 013G5169 — a self-acting thermostatic operator (sensor head): the liquid-charged sensing element expands and contracts with room temperature and drives the valve cone, throttling flow to hold the set room temperature with no external power. It fits Danfoss and other manufacturers' radiator valves with an M30x1.5 connection via the M30x1.5 connection (metal nut fixing) and needs no wiring or batteries. Temperature setting range 8 °C to 28 °C; sensing charge liquid; housing colour White RAL 9016. The head provides built-in frost protection (holds a minimum setting at the snowflake position), maximum/minimum temperature limiting and set-point locking with concealed pins under the dial, a positive shut-off (0) position that fully closes the valve. Genuine Danfoss part; technical data quoted verbatim from store.danfoss.com (code 013G5169). OEM P/N 013G5169, EAN 5702425231599. HS 9032.10 (thermostats). Modulates refrigerant flow to the evaporator in response to superheat at the evaporator outlet.

Code number

013G5169 Brand: Danfoss Type: RAS-DK Sensors Product group: Radiator Sensors Sensor version: RAS-DK 5169 Sensor design: RAS-DK Function: Self-acting thermostatic radiator operator (sensor head) Sensor charge medium: Liquid (self-acting, no power) Sensor type: Built-in sensor Temperature setting range: 8 °C to 28 °C Connection to valve: M30x1.5 Sensor / adjuster connection: Metal nut Frost protection: Yes Temperature limiting & locking: Yes Shut-off (0 / closed) position: Yes Colour: White RAL 9016 Feature description: Frost protection, limiting and locking of temperature set-point; for non Danfoss valves, positive shut-off feature CE mark: No REACH candidate-list substances: Lead (CAS no. 7439-92-1) Net weight: 0.143 kg Gross weight: 0.161 kg EAN: 5702425231599 HS code: 9032.10 (thermostats)

Material

Housing polymer (White RAL 9016); liquid-charged thermostatic sensing element

Temperature Range

setting 8 °C to 28 °C

HS Code

9032.10
