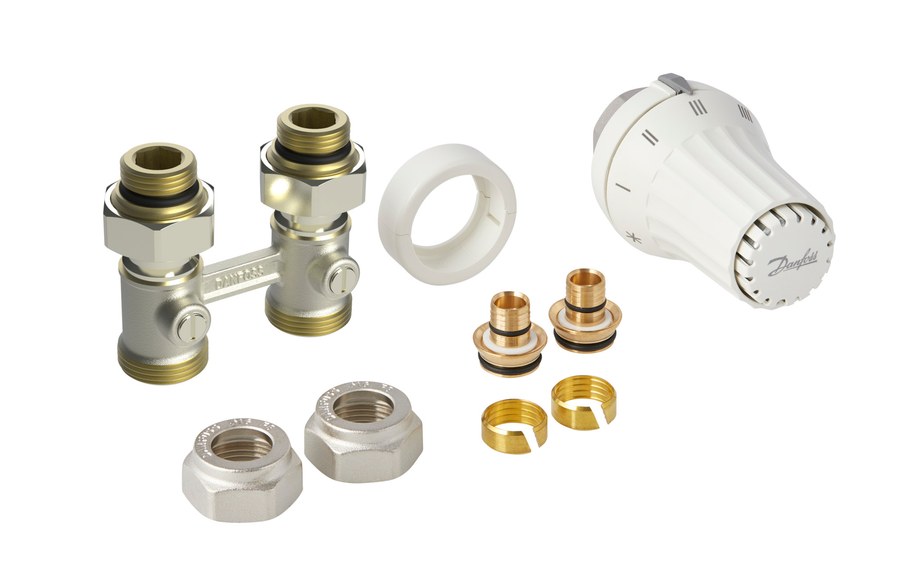

Danfoss RAE-K + RLV-KB radiator valve set (TRV set) — Straight ½", 2-Elements, RAE-K sensor (013G5176)
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss RAE-K + RLV-KB thermostatic radiator valve set (TRV set), OEM order code 013G5176 — a matched 2-elements package for a single radiator: RAE-K compact set straight, with 16x2 mm Alupex fittings. Straight pattern, valve size ½". The RAE-K sensor is liquid-charged and self-acting (setting range 8–28 °C °C, no power or wiring); the RLV-KB return valve allows the radiator to be balanced and isolated for service. Genuine Danfoss parts; technical data quoted verbatim from store.danfoss.com (code 013G5176). OEM P/N 013G5176, EAN 5702425089299. HS 8481.80.
Technical Specifications
- Code number
- 013G5176
- Brand
- Danfoss
- Type
- RAE-K + RLV-KB
- Product group
- TRV set
- Set contents
- 2-elements — RAE-K compact set straight, with 16x2 mm Alupex fittings
- Design
- Straight
- Valve size
- ½"
- Lockshield / return valve type
- RLV-KB
- Sensor-to-valve connection
- M30x1.5
- Sensor design
- RAE-K (liquid-charged, self-acting)
- Sensor temperature setting range
- 8 °C to 28 °C
- Tailpiece
- Without tailpiece
- Colour
- White RAL 9016
- REACH candidate-list substances
- Lead (CAS no. 7439-92-1)
- Net weight
- 0.297 kg
- EAN
- 5702425089299
- HS code
- 8481.80 (taps, cocks, valves)
- CE mark
- No
- China RoHS compliance
- Out of scope
- Connection type to valve
- M30x1.5
- Contents of set
- 2-elements
- Description
- RAE-K compact set straight, with 16x2 mm Alupex fittings
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- Packaging type
- Box
- RLV type
- RLV-KB
- Sensor media
- Liquid
- Sensor setting temperature [°C] [Max]
- 28 °C
- Sensor setting temperature [°C] [Min]
- 8 °C
- Sensor type
- Built-in sensor
- Tailpiece type
- Without tailpiece
- UL mark
- No
- Valve type
- no valve
Standards & Compliance
- Material
- Nickel-plated brass valve body; liquid-charged polymer thermostatic sensor
- Temperature Range
- sensor setting 8 °C to 28 °C
- HS Code
- 8481.80
Compatibility & Fitment
Complete straight-pattern TRV set for a ½" radiator connection (M30x1.5 sensor fixing). Supplied as 2-elements: RAE-K compact set straight, with 16x2 mm Alupex fittings. Confirm radiator tapping size (½") and flow/return pattern (Straight) before ordering; the set components are matched and not individually substituted.
