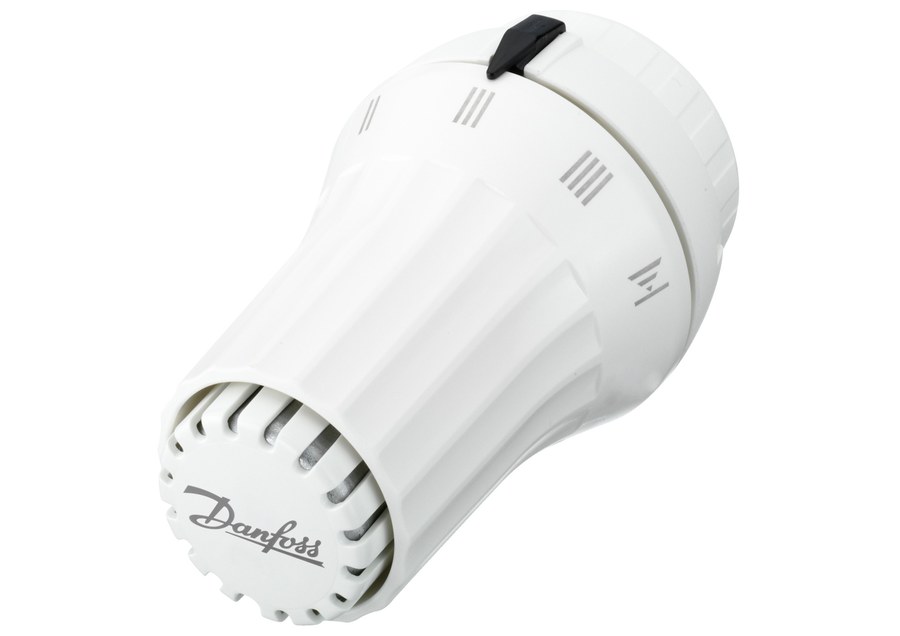

Danfoss RAE thermostatic radiator sensor — liquid-charged, built-in sensor, 8–28 °C, RA connection (013G5154)

Danfoss RAE Sensors thermostatic radiator sensor, OEM order code 013G5154 — a self-acting thermostatic operator (sensor head): the liquid-charged sensing element expands and contracts with room temperature and drives the valve cone, throttling flow to hold the set room temperature with no external power. It fits Danfoss RA radiator valves via the RA connection (ra-click fixing) and needs no wiring or batteries. Temperature setting range 8 °C to 28 °C; sensing charge liquid; housing colour White RAL 9016. The head provides built-in frost protection (holds a minimum setting at the snowflake position), maximum/minimum temperature limiting and set-point locking with concealed pins under the dial, a positive shut-off (0) position that fully closes the valve. Genuine Danfoss part; technical data quoted verbatim from store.danfoss.com (code 013G5154). OEM P/N 013G5154, EAN 5702420044989. HS 9032.10 (thermostats). Modulates refrigerant flow to the evaporator in response to superheat at the evaporator outlet.

Code number

013G5154 Brand: Danfoss Type: RAE Sensors Product group: Radiator Sensors Sensor version: RAE 5154 Sensor design: RAE Function: Self-acting thermostatic radiator operator (sensor head) Sensor charge medium: Liquid (self-acting, no power) Sensor type: Built-in sensor Temperature setting range: 8 °C to 28 °C Connection to valve: RA Sensor / adjuster connection: RA-click Frost protection: Yes Temperature limiting & locking: Yes Shut-off (0 / closed) position: Yes Colour: White RAL 9016 Feature description: Frost protection, limiting and locking of temperature set-point, positive shut-off feature, white socket CE mark: No Net weight: 0.136 kg Gross weight: 0.148 kg EAN: 5702420044989 HS code: 9032.10 (thermostats)

Material

Housing polymer (White RAL 9016); liquid-charged thermostatic sensing element

Temperature Range

setting 8 °C to 28 °C

HS Code

9032.10
