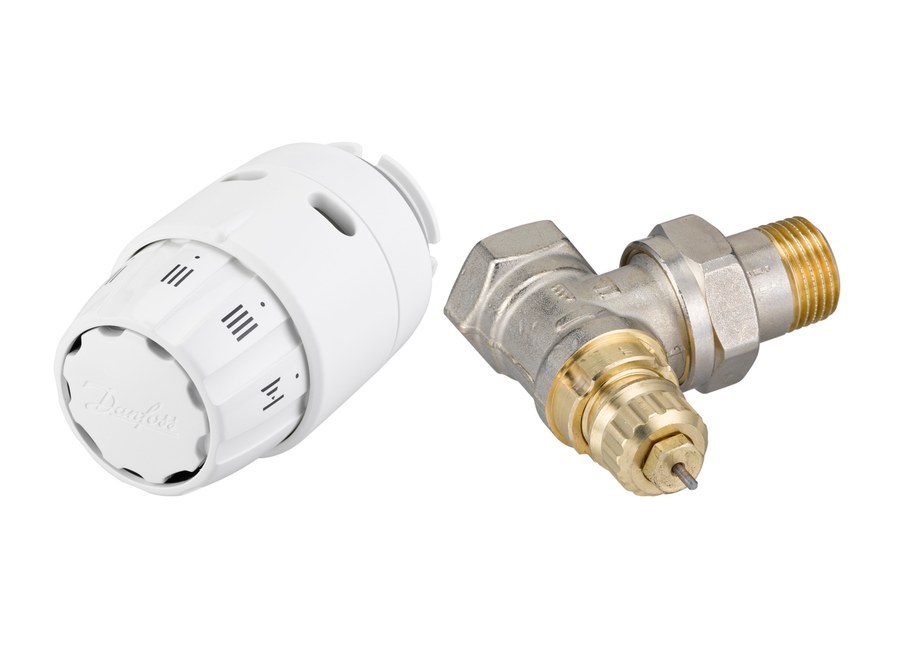

Danfoss RAS-C2 + RA-FN radiator valve set (TRV set) — Angle DN 15, 2-Elements, RAS-C2 sensor

Danfoss RAS-C2 + RA-FN thermostatic radiator valve set (TRV set), OEM order code 013G5143 — a matched 2-elements package for a single radiator: RAS-C2+RA-FN DN15 "A". Angle pattern, valve size DN 15. The RAS-C2 sensor is liquid-charged and self-acting (setting range 8–28 °C °C, no power or wiring); the no RLV return valve allows the radiator to be balanced and isolated for service. Genuine Danfoss parts; technical data quoted verbatim from store.danfoss.com (code 013G5143). OEM P/N 013G5143, EAN 5702420115764. HS 8481.80.

Code number

013G5143

Brand

Danfoss

Type

RAS-C2 + RA-FN

Product group

TRV set

Set contents

2-elements — RAS-C2+RA-FN DN15 "A"

Design

Angle

Valve size

DN 15

Valve type

RA-FN

Lockshield / return valve type

no RLV

Sensor-to-valve connection

RA

Sensor design

RAS-C2 (liquid-charged, self-acting)

Sensor temperature setting range

8 °C to 28 °C

Tailpiece

With o-ring

Colour

White RAL 9016

REACH candidate-list substances

Lead (CAS no. 7439-92-1)

Net weight

0.413 kg

EAN

5702420115764

HS code

8481.80 (taps, cocks, valves)

CE mark

No

China RoHS compliance

Out of scope

Connection type to valve

RA

Contents of set

2-elements

Description

RAS-C2+RA-FN DN15 "A"

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Limiter pins

No

Packaging type

Box

Response time [m]

22 min

RLV type

no RLV

Sensor media

Liquid

Sensor setting temperature [°C] [Max]

28 °C

Sensor setting temperature [°C] [Min]

8 °C

Sensor type

Built-in sensor

Tailpiece type

With o-ring

UL mark

No

Zero-blocking

Yes

Material

Nickel-plated brass valve body; liquid-charged polymer thermostatic sensor

Temperature Range

sensor setting 8 °C to 28 °C

HS Code

8481.80
