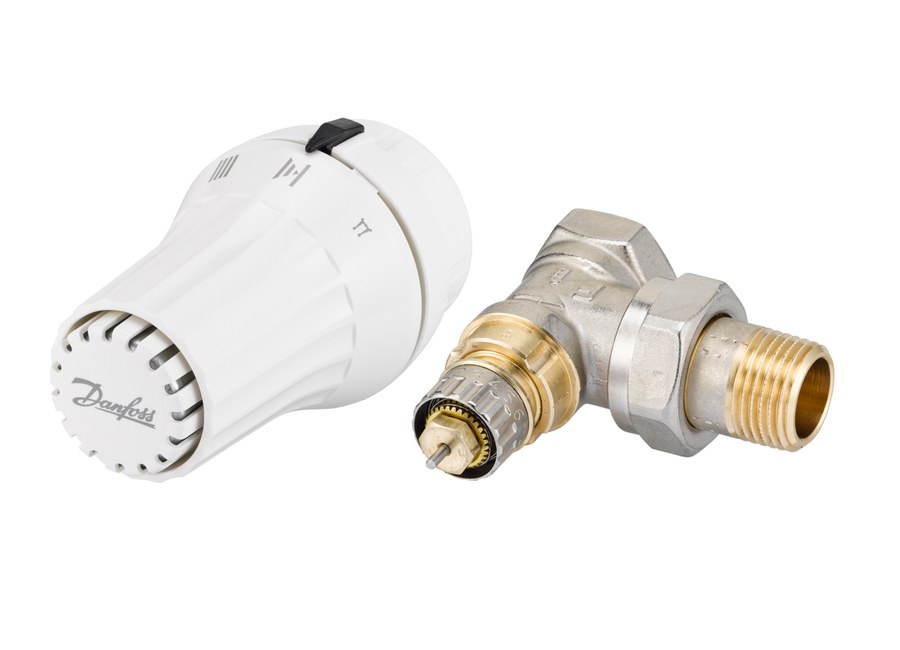

Danfoss RAE + RA-N radiator valve set (TRV set) — Angle DN 15, 2-Elements, RAE sensor

Danfoss RAE + RA-N thermostatic radiator valve set (TRV set), OEM order code 013G5093 — a matched 2-elements package for a single radiator: RAE 013G5054 Sensor + RA-N 013G0013 Valve. Angle pattern, valve size DN 15. The RAE sensor is liquid-charged and self-acting (setting range 8–28 °C °C, no power or wiring); the no RLV return valve allows the radiator to be balanced and isolated for service. Genuine Danfoss parts; technical data quoted verbatim from store.danfoss.com (code 013G5093). OEM P/N 013G5093, EAN 5702420090559. HS 8481.80.

Code number

013G5093

Brand

Danfoss

Type

RAE + RA-N

Product group

TRV set

Set contents

2-elements — RAE 013G5054 Sensor + RA-N 013G0013 Valve

Design

Angle

Valve size

DN 15

Valve type

RA-N

Lockshield / return valve type

no RLV

Sensor-to-valve connection

RA

Sensor design

RAE (liquid-charged, self-acting)

Sensor temperature setting range

8 °C to 28 °C

Tailpiece

Standard

Colour

White RAL 9016

REACH candidate-list substances

Lead (CAS no. 7439-92-1)

Net weight

0.412 kg

EAN

5702420090559

HS code

8481.80 (taps, cocks, valves)

CE mark

No

Connection type to valve

RA

Contents of set

2-elements

Description

RAE 013G5054 Sensor + RA-N 013G0013 Valve

Packaging type

Box

RLV type

no RLV

Sensor media

Liquid

Sensor setting temperature [°C] [Max]

28 °C

Sensor setting temperature [°C] [Min]

8 °C

Sensor type

Built-in sensor

Tailpiece type

Standard

UL mark

No

Material

Nickel-plated brass valve body; liquid-charged polymer thermostatic sensor

Temperature Range

sensor setting 8 °C to 28 °C

HS Code

8481.80
