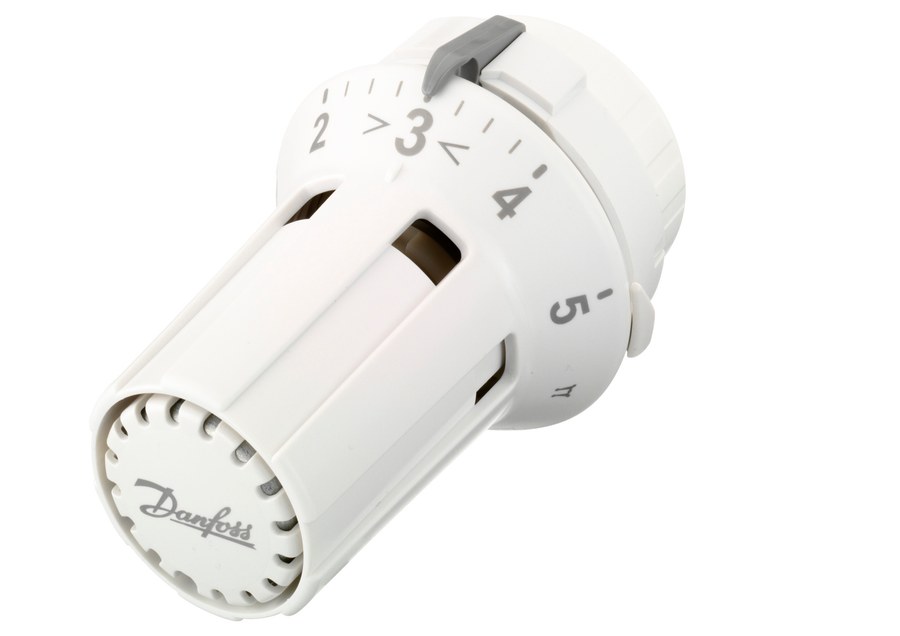

Danfoss RAW thermostatic radiator sensor — liquid-charged, built-in sensor, 16–28 °C, RA connection

Danfoss RAW Sensors thermostatic radiator sensor, OEM order code 013G5116 — a self-acting thermostatic operator (sensor head): the liquid-charged sensing element expands and contracts with room temperature and drives the valve cone, throttling flow to hold the set room temperature with no external power. It fits Danfoss RA radiator valves via the RA connection (ra-click fixing) and needs no wiring or batteries. Temperature setting range 16 °C to 28 °C; sensing charge liquid; housing colour White RAL 9016. The head provides maximum/minimum temperature limiting and set-point locking with concealed pins under the dial. Genuine Danfoss part; technical data quoted verbatim from store.danfoss.com (code 013G5116). OEM P/N 013G5116, EAN 5702420091976. HS 9032.10 (thermostats). Modulates refrigerant flow to the evaporator in response to superheat at the evaporator outlet.

Code number

013G5116 Brand: Danfoss Type: RAW Sensors Product group: Radiator Sensors Sensor version: RAW 5116 Sensor design: RAW Function: Self-acting thermostatic radiator operator (sensor head) Sensor charge medium: Liquid (self-acting, no power) Sensor type: Built-in sensor Temperature setting range: 16 °C to 28 °C Connection to valve: RA Sensor / adjuster connection: RA-click Frost protection: No Temperature limiting & locking: Yes Shut-off (0 / closed) position: No Colour: White RAL 9016 Feature description: Limited temperature range CE mark: No Net weight: 0.133 kg Gross weight: 0.146 kg EAN: 5702420091976 HS code: 9032.10 (thermostats)

Material

Housing polymer (White RAL 9016); liquid-charged thermostatic sensing element

Temperature Range

setting 16 °C to 28 °C

HS Code

9032.10
