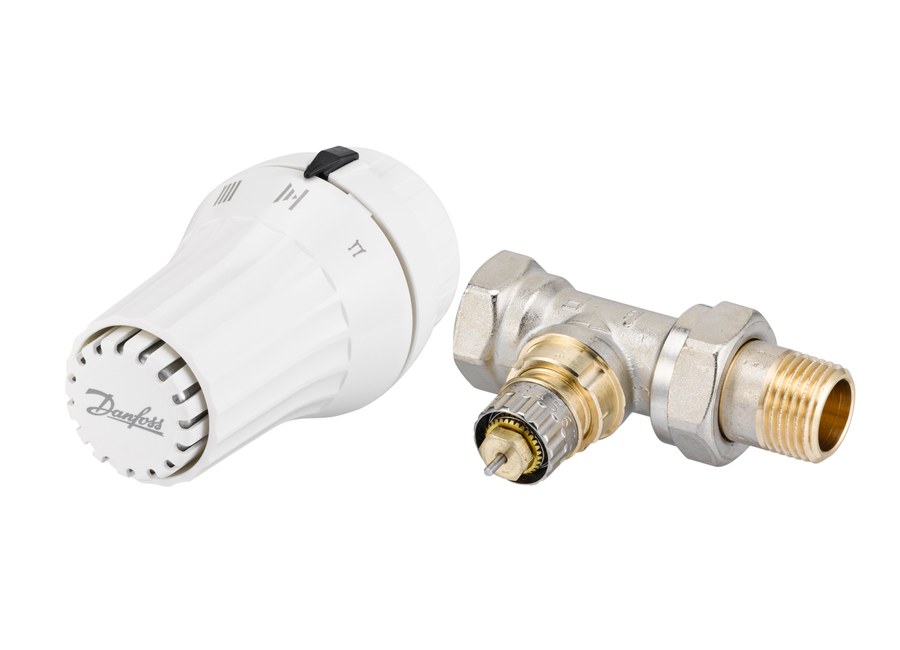

Danfoss RAE + RA-N radiator valve set (TRV set) — Straight DN 15, 2-Elements, RAE sensor
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss RAE + RA-N thermostatic radiator valve set (TRV set), OEM order code 013G5094 — a matched 2-elements package for a single radiator: RAE 013G5054 Sensor + RA-N 013G0014 Valve. Straight pattern, valve size DN 15. The RAE sensor is liquid-charged and self-acting (setting range 8–28 °C °C, no power or wiring); the no RLV return valve allows the radiator to be balanced and isolated for service. Genuine Danfoss parts; technical data quoted verbatim from store.danfoss.com (code 013G5094). OEM P/N 013G5094, EAN 5702420090566. HS 8481.80.
Technical Specifications
- Code number
- 013G5094
- Brand
- Danfoss
- Type
- RAE + RA-N
- Product group
- TRV set
- Set contents
- 2-elements — RAE 013G5054 Sensor + RA-N 013G0014 Valve
- Design
- Straight
- Valve size
- DN 15
- Valve type
- RA-N
- Lockshield / return valve type
- no RLV
- Sensor-to-valve connection
- RA
- Sensor design
- RAE (liquid-charged, self-acting)
- Sensor temperature setting range
- 8 °C to 28 °C
- Tailpiece
- Standard
- Colour
- White RAL 9016
- REACH candidate-list substances
- Lead (CAS no. 7439-92-1)
- Net weight
- 0.418 kg
- EAN
- 5702420090566
- HS code
- 8481.80 (taps, cocks, valves)
- CE mark
- No
- Connection type to valve
- RA
- Contents of set
- 2-elements
- Description
- RAE 013G5054 Sensor + RA-N 013G0014 Valve
- Packaging type
- Box
- RLV type
- no RLV
- Sensor media
- Liquid
- Sensor setting temperature [°C] [Max]
- 28 °C
- Sensor setting temperature [°C] [Min]
- 8 °C
- Sensor type
- Built-in sensor
- Tailpiece type
- Standard
- UL mark
- No
Standards & Compliance
- Material
- Nickel-plated brass valve body; liquid-charged polymer thermostatic sensor
- Temperature Range
- sensor setting 8 °C to 28 °C
- HS Code
- 8481.80
Compatibility & Fitment
Complete straight-pattern TRV set for a DN 15 radiator connection (RA sensor fixing). Supplied as 2-elements: RAE 013G5054 Sensor + RA-N 013G0014 Valve. Confirm radiator tapping size (DN 15) and flow/return pattern (Straight) before ordering; the set components are matched and not individually substituted.
Product Documentation
More from Danfoss
Danfoss
Danfoss RAE + RLV-KB radiator valve set (TRV set) — Angle ¾", 2-Elements, RAE sensor
013G5096
Danfoss
Danfoss RAE + RLV-KB radiator valve set (TRV set) — Straight ¾", 2-Elements, RAE sensor
013G5097
Danfoss

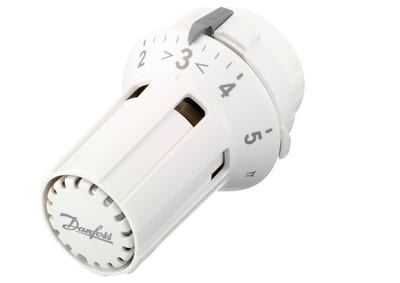

Danfoss RAW thermostatic radiator sensor — liquid-charged, built-in sensor, 16–28 °C, RA connection
013G5116
Danfoss

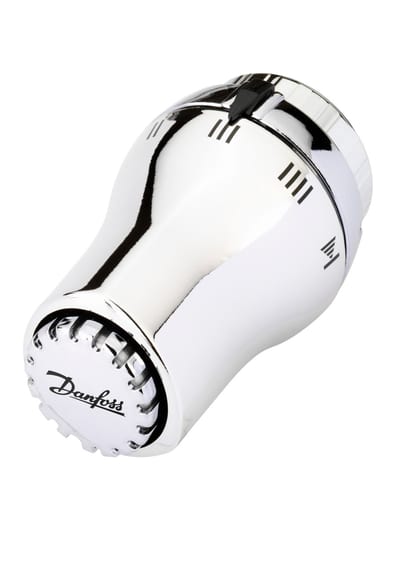

Danfoss RAS-D thermostatic radiator sensor — liquid-charged, built-in sensor, 8–28 °C, RA connection
013G5128
Danfoss

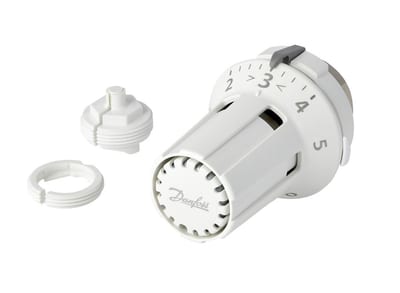

Danfoss RAW-K thermostatic radiator sensor — liquid-charged, built-in sensor, 8–28 °C, M30X1.5, Caleffi, Giacomini connection
013G5133
Danfoss

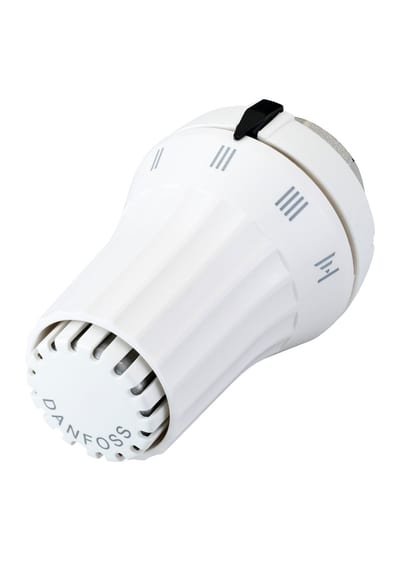

Danfoss RAE-K thermostatic radiator sensor — liquid-charged, built-in sensor, 8–28 °C, M30X1.5 connection (013G5134)
Danfoss

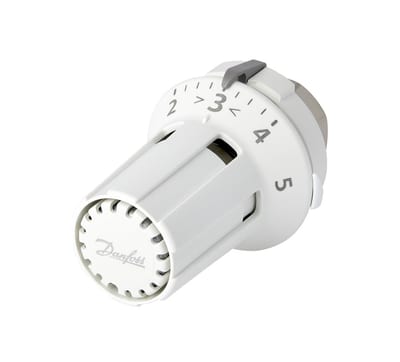

Danfoss RAW-K thermostatic radiator sensor — liquid-charged, built-in sensor, 16–28 °C, M30X1.5 connection
013G5136
Danfoss

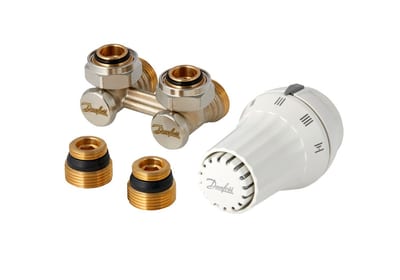

Danfoss RAE + RLV-KB radiator valve set (TRV set) — Angle ½", 2-Elements, RAE sensor
