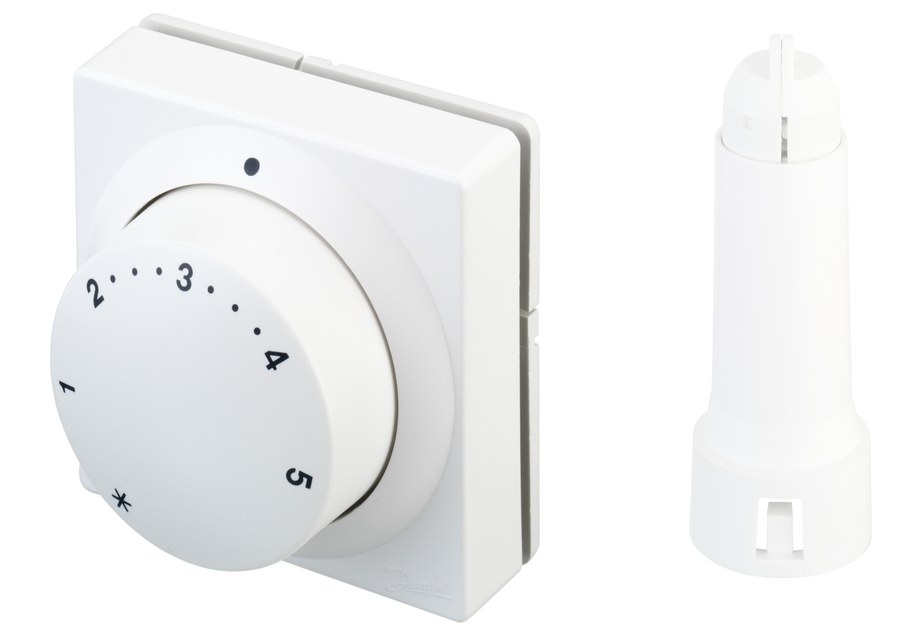

Danfoss RA Remote Setting thermostatic radiator remote adjuster — liquid-charged, remote temperature adjuster, 8–28 °C, RA connection

Danfoss RA Remote Setting thermostatic radiator remote adjuster, OEM order code 013G5068 — a remote temperature adjuster: the liquid-charged element is set on a wall-mounted dial and linked to the valve by a 8 m capillary, so the radiator valve is adjusted from an accessible position while the sensing point stays at the valve. It fits Danfoss RA radiator valves via the RA connection (ra adaptor fixing) and needs no wiring or batteries. Temperature setting range 8 °C to 28 °C; sensing charge liquid; housing colour White RAL 9016. The head provides built-in frost protection (holds a minimum setting at the snowflake position), maximum/minimum temperature limiting and set-point locking with concealed pins under the dial. Genuine Danfoss part; technical data quoted verbatim from store.danfoss.com (code 013G5068). OEM P/N 013G5068, EAN 5702421034583. HS 9032.10 (thermostats).

Code number

013G5068 Brand: Danfoss Type: RA Remote Setting Product group: Radiator Sensors Sensor version: RA 5068 Sensor design: RA 2000 Function: Self-acting thermostatic radiator remote adjuster Sensor charge medium: Liquid (self-acting, no power) Sensor type: Remote temp. adjuster Temperature setting range: 8 °C to 28 °C Connection to valve: RA Sensor / adjuster connection: RA adaptor Capillary (remote) tube length: 8 m Frost protection: Yes Temperature limiting & locking: Yes Shut-off (0 / closed) position: No Colour: White RAL 9016 Feature description: Remote temperature adjuster with frost protection, limiting and locking of temperature set-point CE mark: No EU RoHS compliance: Yes with exemptions REACH candidate-list substances: Lead (CAS no. 7439-92-1) Net weight: 0.258 kg Gross weight: 0.28 kg EAN: 5702421034583 HS code: 9032.10 (thermostats)

Material

Housing polymer (White RAL 9016); liquid-charged thermostatic sensing element

Temperature Range

setting 8 °C to 28 °C

HS Code

9032.10
