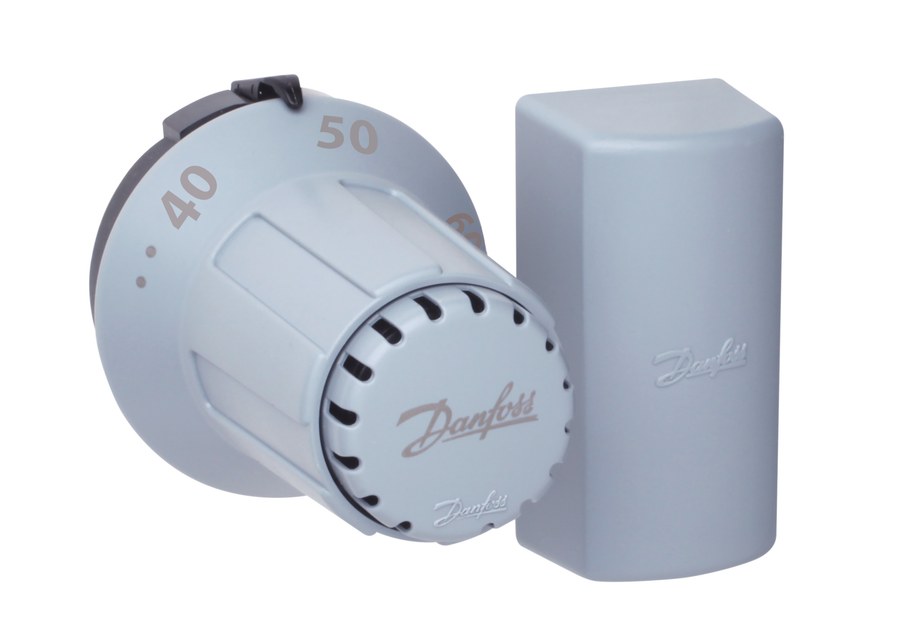

Danfoss FTC thermostatic element — self-acting, 35–70 °C setting range, 2 m capillary

Danfoss FTC thermostatic element, OEM order code 013G5080 — a self-acting thermostatic operator with a 2 m capillary and remote sensing bulb, setting range 35 °C to 70 °C. The liquid-charged element opens and closes the associated valve as the sensed temperature moves across the set range, holding a target temperature without external power or wiring. Genuine Danfoss part; technical data quoted verbatim from store.danfoss.com (code 013G5080). OEM P/N 013G5080, EAN 5702420054902. HS 9032.10 (thermostats).

Code number

013G5080

Brand

Danfoss

Type

FTC

Product group

Sensor

Function

Self-acting thermostatic element (return-temperature control)

Temperature setting range

35 °C to 70 °C

Capillary tube length

2 m

Maximum sensor temperature

65 °C

Feature description

FTC Thermostatic Element, 35-70 Celcius

REACH candidate-list substances

Lead (CAS no. 7439-92-1)

Net weight

0.257 kg

Gross weight

0.284 kg

EAN

5702420054902

HS code

9032.10 (thermostats)

Capillary tube length [m]

2 m

Description

FTC Thermostatic Element, 35-70 Celcius

Sensor temperature [°C] [Max]

65 °C

Temperature setting range [°C] [Max]

70 °C

Temperature setting range [°C] [Min]

35 °C

Material

Liquid-charged thermostatic sensing element with capillary and remote bulb

Temperature Range

setting 35 °C to 70 °C

HS Code

9032.10
