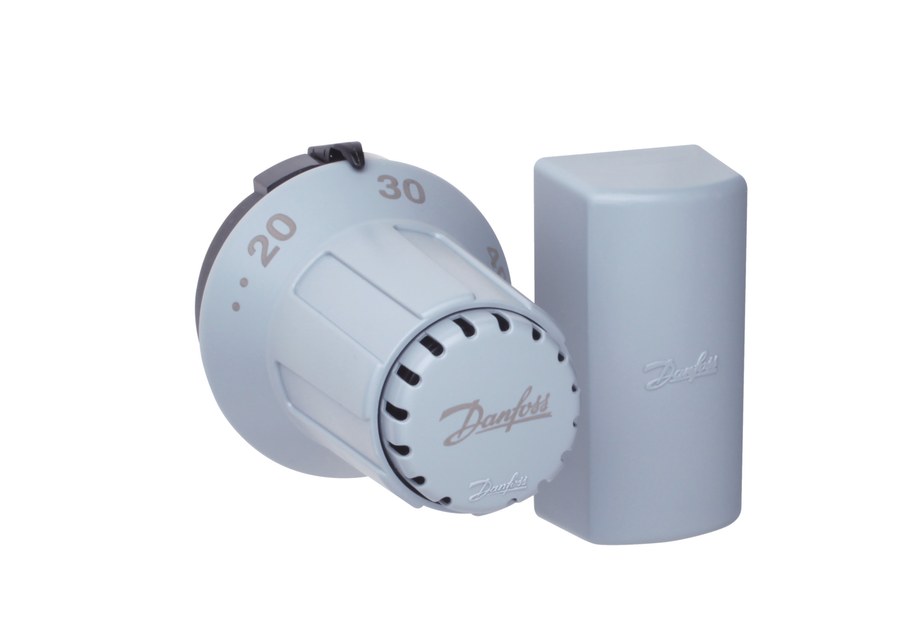

Danfoss FTC thermostatic element — self-acting, 15–50 °C setting range, 2 m capillary

Danfoss FTC thermostatic element, OEM order code 013G5081 — a self-acting thermostatic operator with a 2 m capillary and remote sensing bulb, setting range 15 °C to 50 °C. The liquid-charged element opens and closes the associated valve as the sensed temperature moves across the set range, holding a target temperature without external power or wiring. Genuine Danfoss part; technical data quoted verbatim from store.danfoss.com (code 013G5081). OEM P/N 013G5081, EAN 5702420045504. HS 9032.10 (thermostats).

Code number

013G5081

Brand

Danfoss

Type

FTC

Product group

Sensor

Function

Self-acting thermostatic element (return-temperature control)

Temperature setting range

15 °C to 50 °C

Capillary tube length

2 m

Maximum sensor temperature

65 °C

Feature description

FTC Thermostatic Element, 15-50 Celcius

REACH candidate-list substances

No

Net weight

0.284 kg

Gross weight

0.284 kg

EAN

5702420045504

HS code

9032.10 (thermostats)

Capillary tube length [m]

2 m

Description

FTC Thermostatic Element, 15-50 Celcius

EU RoHS compliance

Yes

Sensor temperature [°C] [Max]

65 °C

Temperature setting range [°C] [Max]

50 °C

Temperature setting range [°C] [Min]

15 °C

Material

Liquid-charged thermostatic sensing element with capillary and remote bulb

Temperature Range

setting 15 °C to 50 °C

HS Code

9032.10
