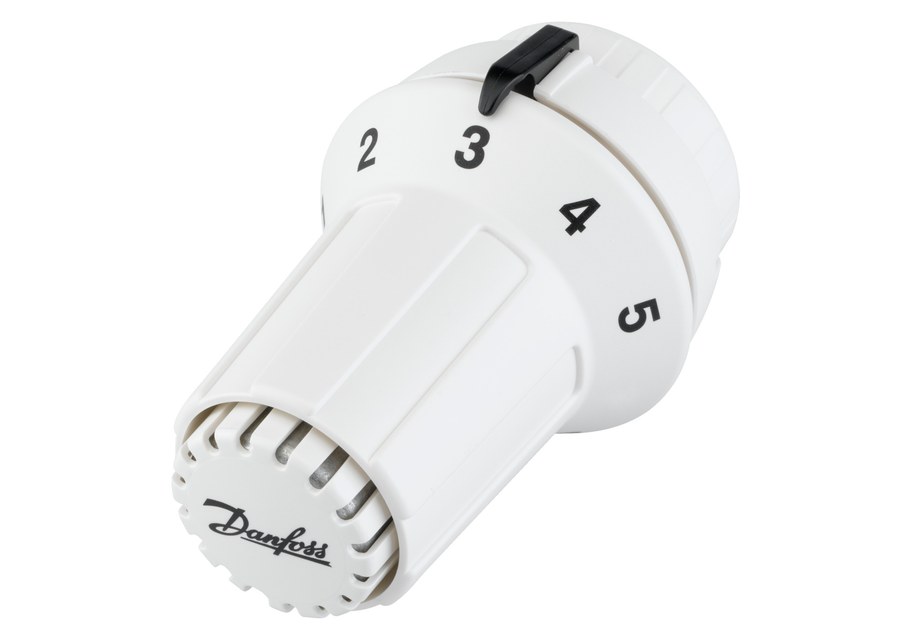

Danfoss RAS-C thermostatic radiator sensor — liquid-charged, built-in sensor, 8–28 °C, RA connection (013G5041)

Danfoss RAS-C Sensors thermostatic radiator sensor, OEM order code 013G5041 — a self-acting thermostatic operator (sensor head): the liquid-charged sensing element expands and contracts with room temperature and drives the valve cone, throttling flow to hold the set room temperature with no external power. It fits Danfoss RA radiator valves via the RA connection (ra-click fixing) and needs no wiring or batteries. Temperature setting range 8 °C to 28 °C; sensing charge liquid; housing colour White RAL 9016. The head provides built-in frost protection (holds a minimum setting at the snowflake position), a positive shut-off (0) position that fully closes the valve. Genuine Danfoss part; technical data quoted verbatim from store.danfoss.com (code 013G5041). OEM P/N 013G5041. HS 9032.10 (thermostats).

Code number

013G5041 Brand: Danfoss Type: RAS-C Sensors Product group: Radiator Sensors Sensor version: RAS-C 5041 Sensor design: RAS-C Function: Self-acting thermostatic radiator operator (sensor head) Sensor charge medium: Liquid (self-acting, no power) Sensor type: Built-in sensor Temperature setting range: 8 °C to 28 °C Connection to valve: RA Sensor / adjuster connection: RA-click Frost protection: Yes Temperature limiting & locking: No Shut-off (0 / closed) position: Yes Colour: White RAL 9016 Feature description: White socket, positive shut-off feature. CE mark: No Net weight: 0.132 kg Gross weight: 0.153 kg HS code: 9032.10 (thermostats) Connection type to sensor: RA-click Connection type to valve: RA Temperature limitation: No UL mark: No Capillary tube length: max. 0.0 m Contents of set: Sensor Sensor media: Liquid Sensor setting temperature: 8 °C to 28 °C Shut-off function: Yes

Material

Housing polymer (White RAL 9016); liquid-charged thermostatic sensing element

Temperature Range

setting 8 °C to 28 °C

HS Code

9032.10
