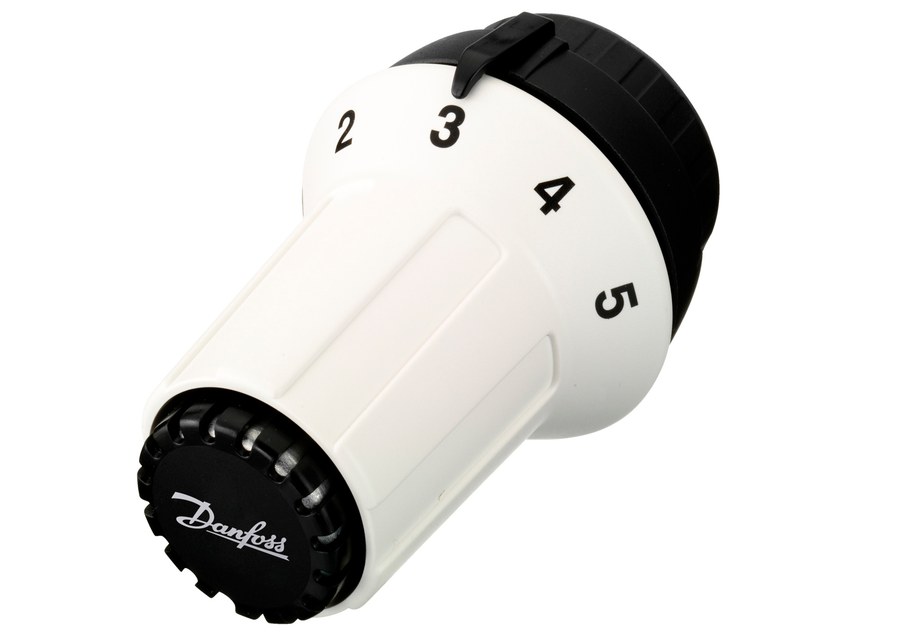

Danfoss RAS-C thermostatic radiator sensor — liquid-charged, built-in sensor, 8–28 °C, RA connection (013G5023)

Danfoss RAS-C Sensors thermostatic radiator sensor, OEM order code 013G5023 — a self-acting thermostatic operator (sensor head): the liquid-charged sensing element expands and contracts with room temperature and drives the valve cone, throttling flow to hold the set room temperature with no external power. It fits Danfoss RA radiator valves via the RA connection (ra-click fixing) and needs no wiring or batteries. Temperature setting range 8 °C to 28 °C; sensing charge liquid; housing colour Black RAL 9005 / White RAL 9016. The head provides built-in frost protection (holds a minimum setting at the snowflake position), maximum/minimum temperature limiting and set-point locking with concealed pins under the dial. Genuine Danfoss part; technical data quoted verbatim from store.danfoss.com (code 013G5023). OEM P/N 013G5023, EAN 5702420052601. HS 9032.10 (thermostats). Modulates refrigerant flow to the evaporator in response to superheat at the evaporator outlet.

Code number

013G5023 Brand: Danfoss Type: RAS-C Sensors Product group: Radiator Sensors Sensor version: RAS-C 5023 Sensor design: RAS-C Function: Self-acting thermostatic radiator operator (sensor head) Sensor charge medium: Liquid (self-acting, no power) Sensor type: Built-in sensor Temperature setting range: 8 °C to 28 °C Connection to valve: RA Sensor / adjuster connection: RA-click Frost protection: Yes Temperature limiting & locking: Yes Shut-off (0 / closed) position: No Colour: Black RAL 9005 / White RAL 9016 Feature description: Black socket, temperature limitation feature. CE mark: No Net weight: 0.137 kg Gross weight: 0.148 kg EAN: 5702420052601 HS code: 9032.10 (thermostats)

Material

Housing polymer (Black RAL 9005 / White RAL 9016); liquid-charged thermostatic sensing element

Temperature Range

setting 8 °C to 28 °C

HS Code

9032.10
