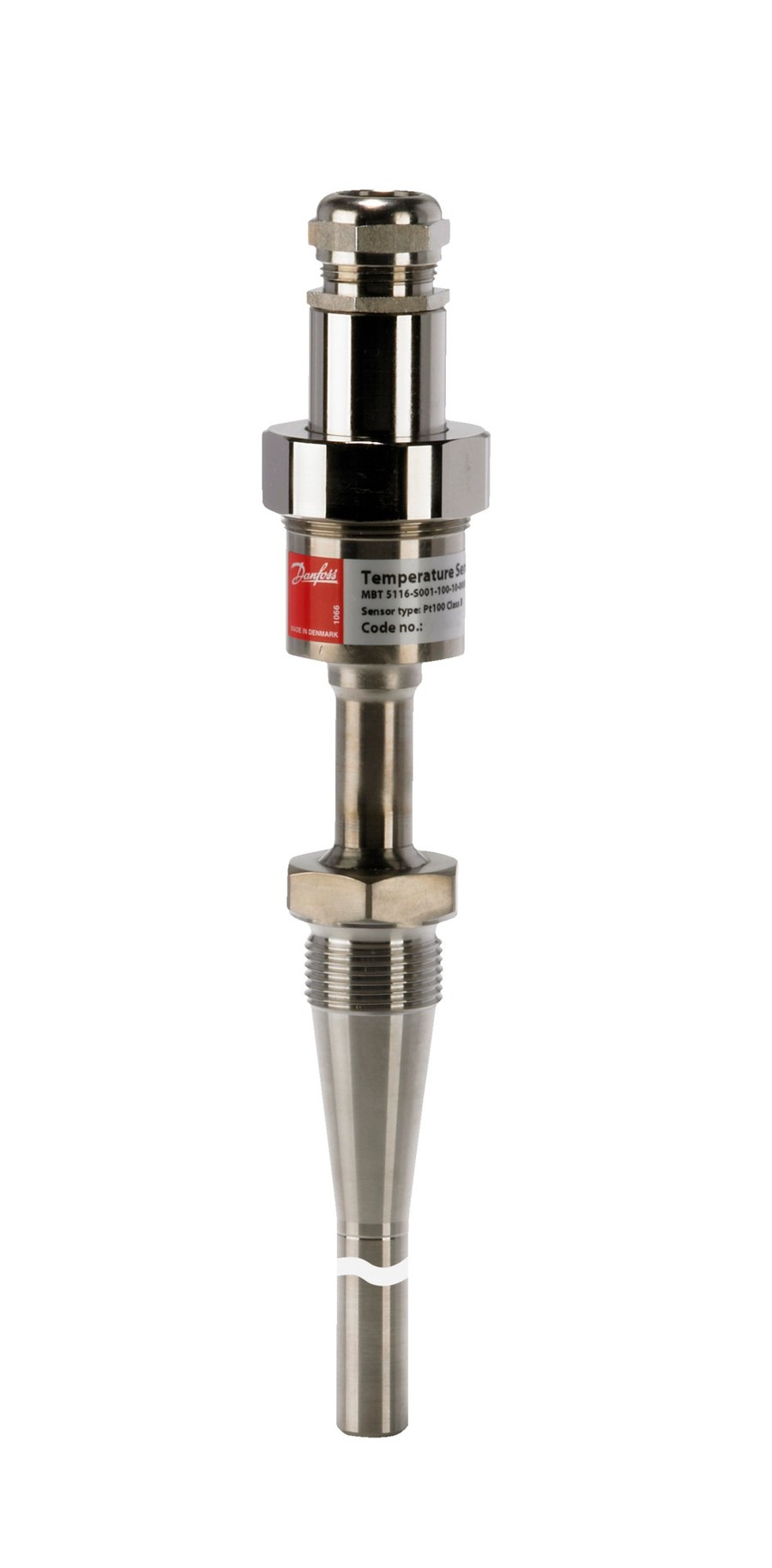

Danfoss MBT 5116 high-temperature sensor, Pt 1000, -50 to +600 C, 100 mm insertion, G 3/4 process connection (code 084Z2369)
Danfoss · Sensors & Instrumentation · Temperature Sensors
Danfoss MBT 5116 high-temperature insertion sensor, code 084Z2369 (type designation MBT 5116-S301-100-11-0000). Heavy-duty RTD for high-temperature process measurement such as compressor discharge, oil and exhaust circuits. Pt 1000 platinum measuring element (1000 ohm at 0 C), Class B tolerance per EN 60751; two measuring elements. Insertion length 100 mm plus 50 mm extension neck; G 3/4 male (ISO 228-1-A) process connection; AISI 316 Ti stainless-steel protection tube, 14-24 mm diameter. Measuring range -50 to +600 C (-58 to +1112 F); resistance (ohm) output. Slim-line connection head, Pg 13.5; IP65 enclosure per IEC 60529. CE marked.
Specifications
- Part number
- 084Z2369
- HS code
- 9025.19
- Material
- AISI 316 Ti stainless steel
- Temperature range
- -50 to +600 C (-58 to +1112 F)
- IP rating
- IP65
- Standard size
- 100 mm insertion
- Thread standard
- ISO 228-1-A
Compatibility
MBT 5116 high-temperature sensor. Confirm insertion length (100 mm), process thread (G 3/4) and the -50 to +600 C range suit the application; the slim-line head accepts Pg 13.5 cable entry.
Standards
- EN 60751
- ISO 228-1-A
- IEC 60529
Approvals
