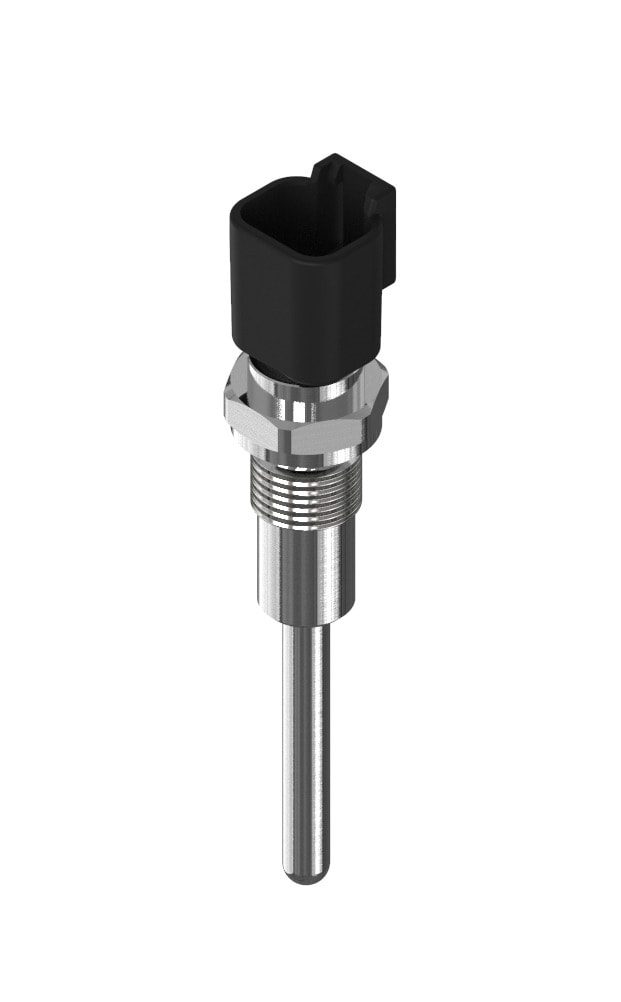

Danfoss MBT 3270 temperature sensor, NTC 2000 ohm, 70 mm insertion, M14X1.5 process connection
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBT 3270 compact temperature sensor, code 084Z2421 (type designation MBT 3270-061A2-070-K0C00-000). Rugged fixed-insert RTD/thermistor sensor for engines, compressors and machinery temperature monitoring. Sensor element NTC thermistor, 2000 ohm, tolerance +/-1%. Insertion length 70 mm; M14x1.5 male (ISO 965) process connection; AISI 316 Ti stainless steel protection tube, 6 mm diameter. Measuring range -50 to +150 C (-58 to +302 F); resistance (ohm) output. Electrical connection Deutsch DT04, 2-pin; IP54 enclosure per IEC 60529. CE marked.
Technical Specifications
- Type
- MBT 3270 (compact fixed-insert sensor)
- Type designation
- MBT 3270-061A2-070-K0C00-000
- Code number
- 084Z2421
- Sensor element
- NTC thermistor, 2000 ohm
- Tolerance
- +/-1%
- Insertion length
- 70 mm
- Process connection
- M14x1.5 (ISO 965)
- Protection tube
- AISI 316 Ti stainless steel, 6 mm diameter
- Measuring range
- -50 to +150 C (-58 to +302 F)
- Output signal
- Ohm (resistance)
- Electrical connection
- Deutsch DT04, 2-pin
- Enclosure rating
- IP54 per IEC 60529
- Packing quantity
- 40 pc
- Net weight
- 0.039 kg
- Approvals
- CE
- EAN
- 5702428962605
- Product group
- Sensors
- Ambient temperature max. [°C]
- 125 °C
- Ambient temperature max. [°F]
- 257 °F
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Connection material
- AISI 316 Ti
- Connection type
- M
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical conn. comments
- Flying leads
- Electrical connection size
- 2 pin
- Enclosure rating IP
- IP54
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- In scope of WEEE
- Yes
- Insertion length [in]
- 2.76 in
- Insertion length [mm]
- 70 mm
- Insertion type
- Fixed
- Measuring range [°C] [max]
- 150 °C
- Measuring range [°C] [min]
- -50 °C
- Measuring range [°F] [max]
- 302 °F
- Measuring range [°F] [min]
- -58 °F
- Process connection Male/Female
- Male
- Process connection material
- AISI 316 Ti
- Process connection size
- 14x1.5
- Process connection standard
- ISO 965
- Process connection type
- M
- Protection tube diameter [in]
- 0.236 in
- Protection tube diameter [mm]
- 6 mm
- Protection tube material
- AISI 316 TI
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Sensor elem. resistance [Ohm]
- 2000 Ohm
- Sensor element [pc]
- 1 pc
- Sensor element tolerance
- ± 1%
- Sensor element type
- NTC
- Sensor Insert
- Fixed
- Temperature range [°C] [max]
- 150 °C
- Temperature range [°C] [min]
- -50 °C
- Temperature range [°F] [max]
- 302 °F
- Temperature range [°F] [min]
- -58 °F
- Wires [pcs]
- 4 pc
Standards & Compliance
- Size / Series
- 70 mm insertion
- Material
- AISI 316 Ti stainless steel
- Thread Standard
- ISO 965
- Temperature Range
- -50 to +150 C (-58 to +302 F)
- IP Rating
- IP54
- HS Code
- 9025.19
Compatibility & Fitment
MBT 3270 compact sensor. Confirm insertion length (70 mm), process thread (M14x1.5), element (NTC 2000 ohm) and connector (Deutsch DT04, 2-pin) match the mounting boss and controller input.
