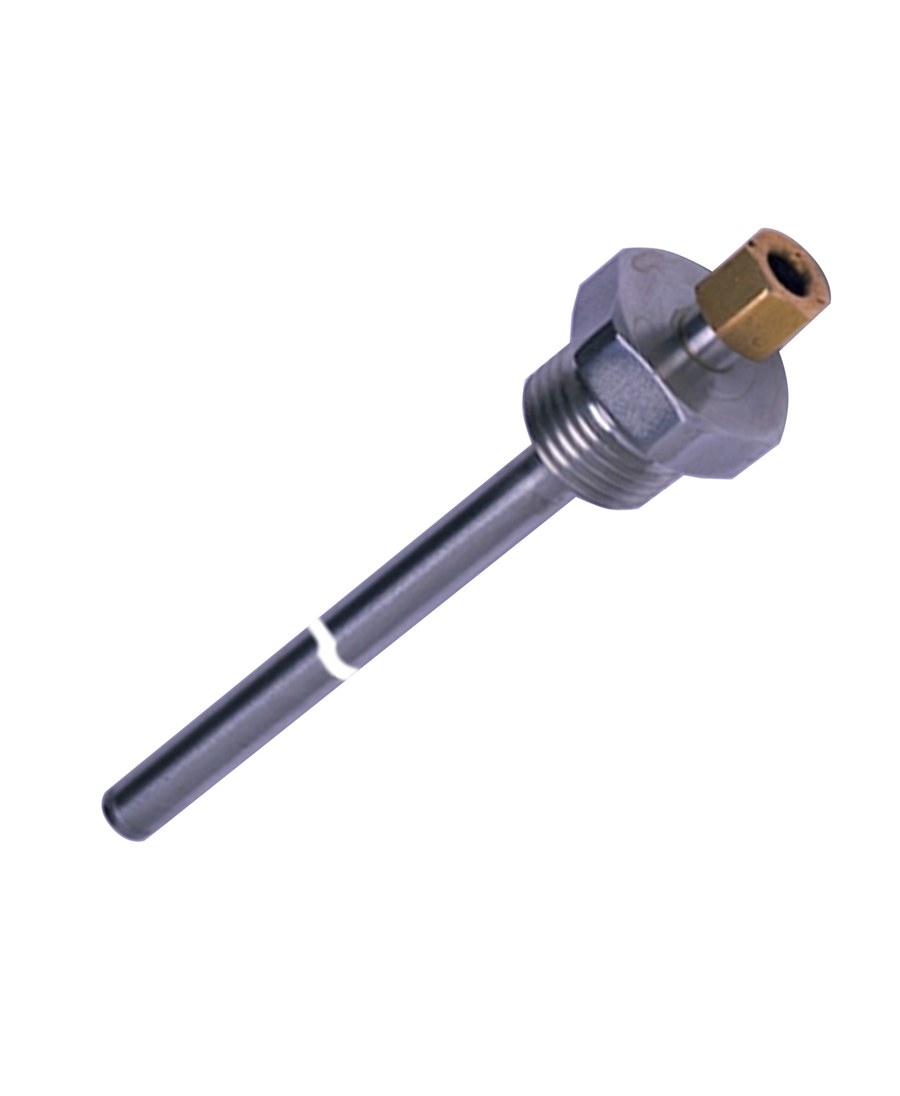

Danfoss MBT 120 sensor pocket (thermowell), 110 mm insertion, G 1/2 connection, AISI 316 Ti
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBT 120 sensor pocket (thermowell), code 084Z2431 (type designation MBT 120-210-110-3). Weld-in / screw-in protection pocket that lets an MBT 153 cable sensor (or equivalent exchangeable insert) be removed for service without draining or depressurising the system. Insertion length 110 mm; G 1/2 male (ISO 228-1-A) process connection; AISI 316 Ti stainless-steel construction, 8 mm bore. Rated -50 to +200 C (-58 to +392 F). Sensor insert exchangeable. CE compliant.
Technical Specifications
- Type
- MBT 120 (sensor pocket / thermowell)
- Type designation
- MBT 120-210-110-3
- Code number
- 084Z2431
- Insertion length
- 110 mm
- Process connection
- G 1/2 (ISO 228-1-A)
- Protection tube
- AISI 316 Ti stainless steel, 8 mm diameter
- Measuring range
- -50 to +200 C (-58 to +392 F)
- Packing quantity
- 10 pc
- Net weight
- 0.209 kg
- Approvals
- CE
- EAN
- 5702428970839
- Product group
- Accessories, sensors
- Connection standard
- ISO 228
- Connection type
- G
- Temperature range
- -50 °C to 200 °C
- UL mark
- No
- CE mark
- Yes
- REACH candidate-list substances
- Lead (CAS no. 7439-92-1)
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- In scope of WEEE
- Yes
- Process connection Male/Female
- Male
- Process connection size
- 1/2
- Process connection standard
- ISO 228-1-A
- Process connection type
- G
- Protection tube diameter
- 8.0 mm
- Protection tube material
- AISI 316 TI
- Sensor Insert
- Exchangeable
- EU RoHS compliance
- Yes with exemptions
Standards & Compliance
- Size / Series
- 110 mm insertion
- Material
- AISI 316 Ti stainless steel
- Thread Standard
- ISO 228-1-A
- Temperature Range
- -50 to +200 C (-58 to +392 F)
- HS Code
- 9025.90
Compatibility & Fitment
MBT 120 sensor pocket. Match the pocket insertion length (110 mm) and G 1/2 process thread to the sensor and the mounting boss; pairs with the MBT 153 cable sensor.
