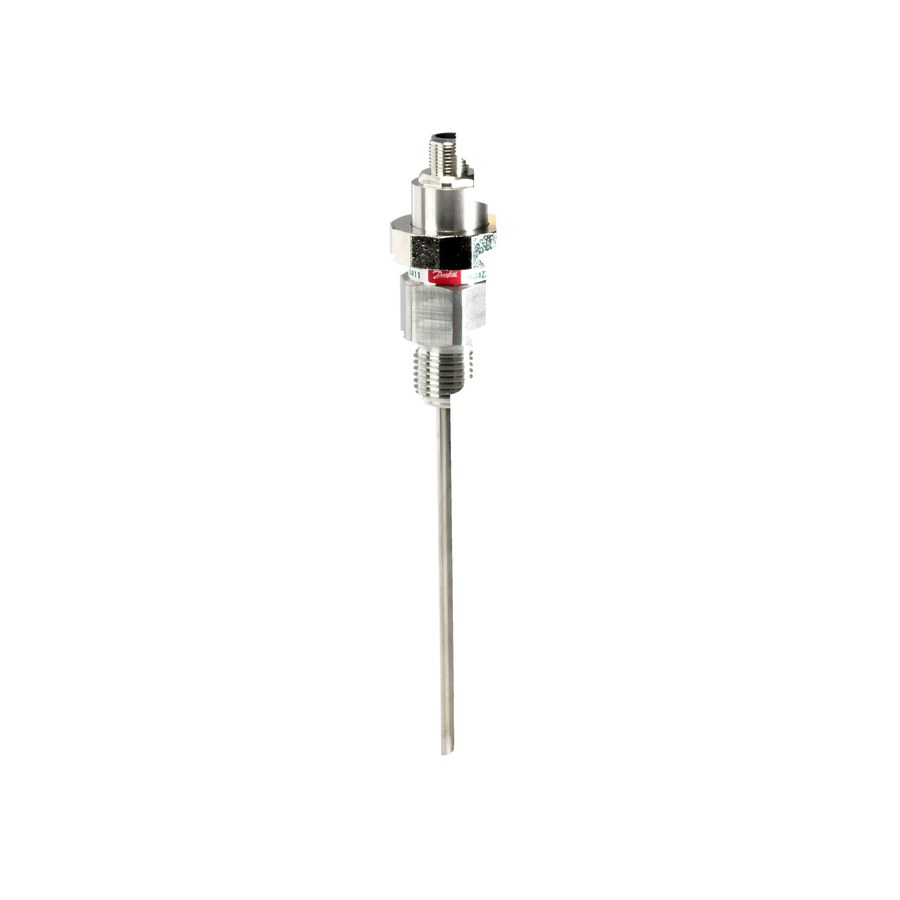

Danfoss MBT 5310 temperature sensor, Pt 100, 323–335 mm insertion, G 1/2 process connection (code 084Z2472)
Danfoss · Sensors & Instrumentation · Temperature Sensors
Danfoss MBT 5310 marine adjustable-insertion temperature sensor, code 084Z2472 (type designation MBT 5310-00-335-B00). Insertion RTD for cooling water, lubricating and hydraulic oil, refrigeration and general machinery temperature measurement. Pt 100 platinum measuring element (100 ohm at 0 C), Class B tolerance per EN 60751; Adjustable insertion depth 323–335 mm (sliding compression fitting); insertion length 323–335 mm; G 1/2 male (ISO 228-1-A) process connection; AISI 316 Ti stainless steel protection tube, 8 mm diameter. Measuring range -50 to +200 C (-58 to +392 F); resistance (ohm) output. M12 x 1 male connector, 4-pin (IEC 61076-2-101); IP65 per IEC 60529. CE marked.
Specifications
- Part number
- 084Z2472
- HS code
- 9025.19
- Material
- AISI 316 Ti stainless steel
- Temperature range
- -50 to +200 C (-58 to +392 F)
- IP rating
- IP65
- Standard size
- 323–335 mm insertion
- Thread standard
- IEC 61076-2-101
Compatibility
MBT 5310 insertion sensor. Confirm insertion length (323–335 mm), process thread (G 1/2) and element (Pt 100) match the pocket and controller input.
Standards
- EN 60751
- IEC 60529
- IEC 61076-2-101
