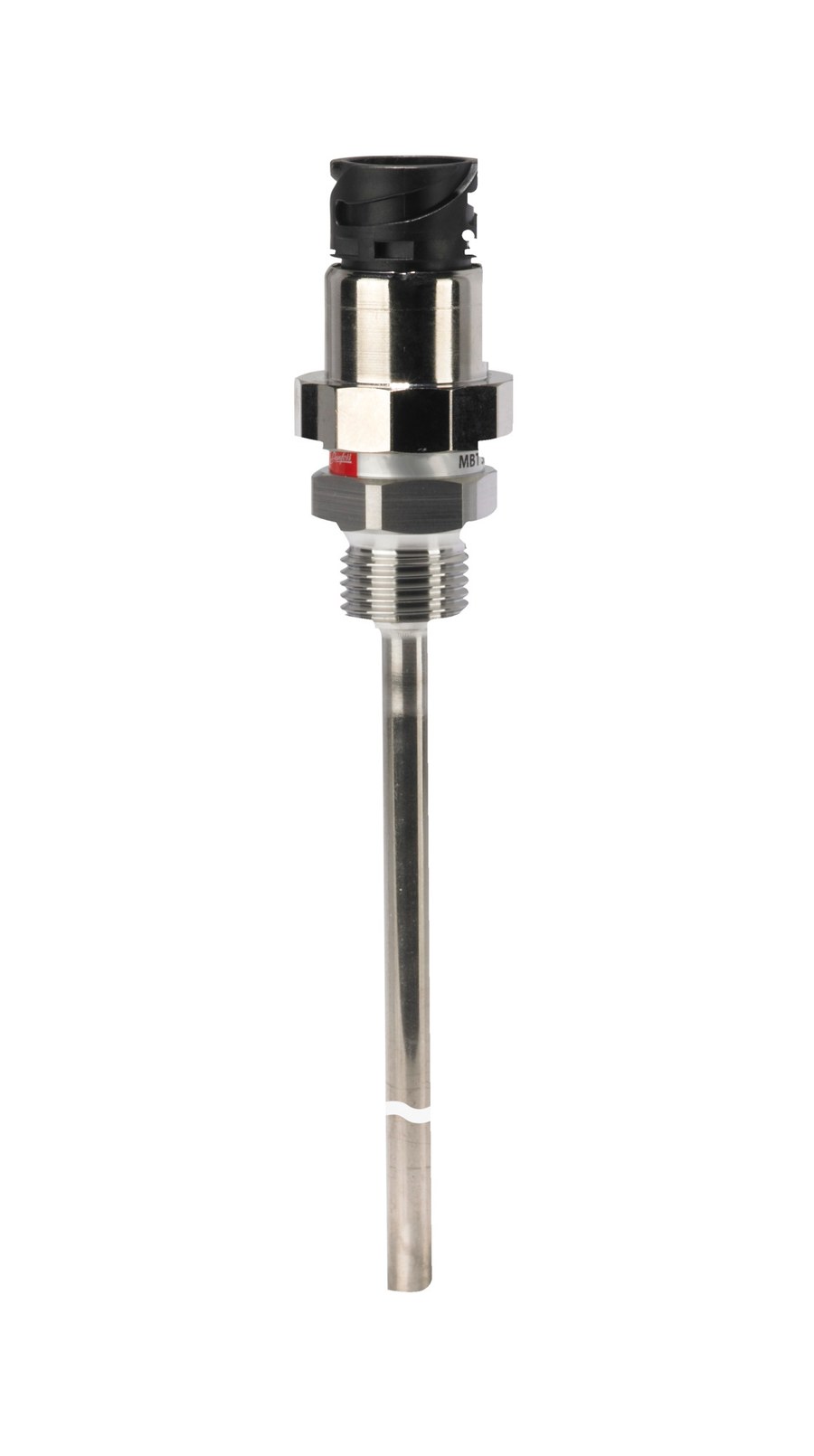

Danfoss MBT 5250 temperature sensor, Pt 100, 60 mm insertion, UNF 3/4-16 process connection (code 084Z2434)
Danfoss · Sensors & Instrumentation · Temperature Sensors
Danfoss MBT 5250 heavy-duty insertion temperature sensor, code 084Z2434 (type designation MBT 5250-0000-060-4E0). Insertion RTD for cooling water, lubricating and hydraulic oil, refrigeration and general machinery temperature measurement. Pt 100 platinum measuring element (100 ohm at 0 C), Class B tolerance per EN 60751; exchangeable measuring insert; insertion length 60 mm; UNF 3/4-16 male (ASME B1.1) process connection; AISI 316 Ti stainless steel protection tube, 8 mm diameter. Measuring range -50 to +200 C (-58 to +392 F); resistance (ohm) output. Bayonet connector, 4-pin (DIN 72585); IP65 per IEC 60529. CE marked.
Specifications
- Part number
- 084Z2434
- HS code
- 9025.19
- Material
- AISI 316 Ti stainless steel
- Temperature range
- -50 to +200 C (-58 to +392 F)
- IP rating
- IP65
- Standard size
- 60 mm insertion
- Thread standard
- DIN 72585
Compatibility
MBT 5250 insertion sensor with changeable insert. Confirm insertion length (60 mm), process thread (UNF 3/4-16) and element (Pt 100) match the pocket and controller input.
Standards
- EN 60751
- IEC 60529
- DIN 72585
Approvals
