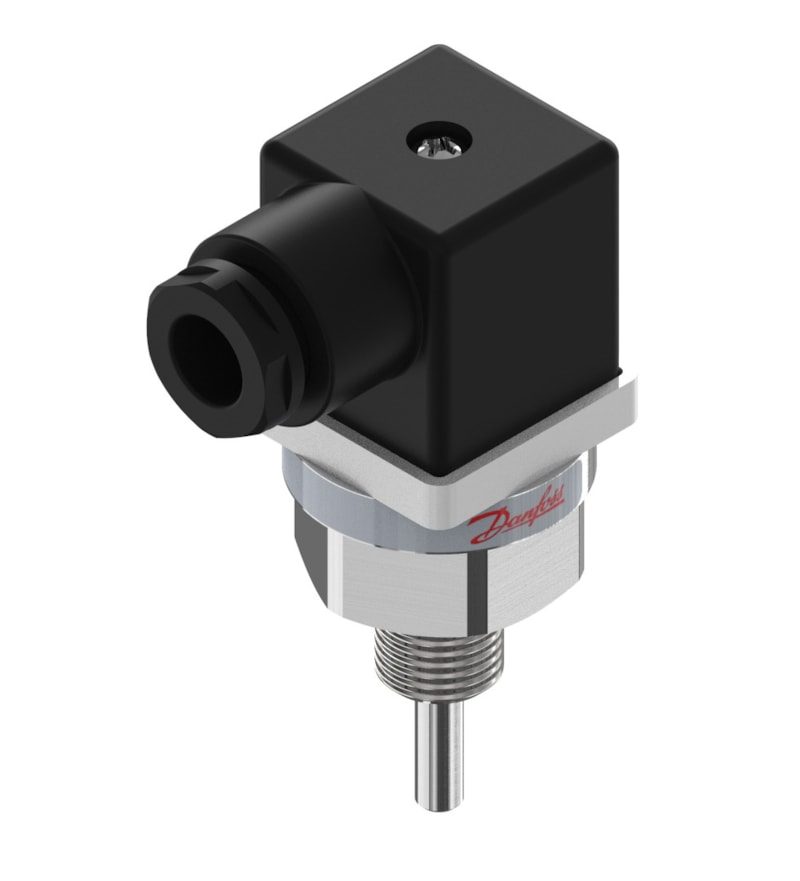

Danfoss MBT 3270 temperature sensor, Pt 100, 30 mm insertion, G 1/4 process connection (code 084Z2443)
Danfoss · Sensors & Instrumentation · Temperature Sensors
Danfoss MBT 3270 compact temperature sensor, code 084Z2443 (type designation MBT 3270-30001-030-00730-000). Insertion RTD for cooling water, lubricating and hydraulic oil, refrigeration and general machinery temperature measurement. Pt 100 platinum measuring element (100 ohm at 0 C), Class B tolerance per EN 60751; insertion length 30 mm; G 1/4 male (ISO 228-1-A) process connection; AISI 316 Ti stainless steel protection tube, 6 mm diameter. Measuring range -50 to +120 C (-58 to +248 F); resistance (ohm) output. Angular connector (form A) per EN 175301-803-A, Pg 9; IP54 per IEC 60529. CE marked.
Specifications
- Part number
- 084Z2443
- HS code
- 9025.19
- Material
- AISI 316 Ti stainless steel
- Temperature range
- -50 to +120 C (-58 to +248 F)
- IP rating
- IP54
- Standard size
- 30 mm insertion
- Thread standard
- EN 175301-803-A
Compatibility
MBT 3270 insertion sensor. Confirm insertion length (30 mm), process thread (G 1/4) and element (Pt 100) match the pocket and controller input.
Standards
- EN 60751
- IEC 60529
- EN 175301-803-A
Approvals
