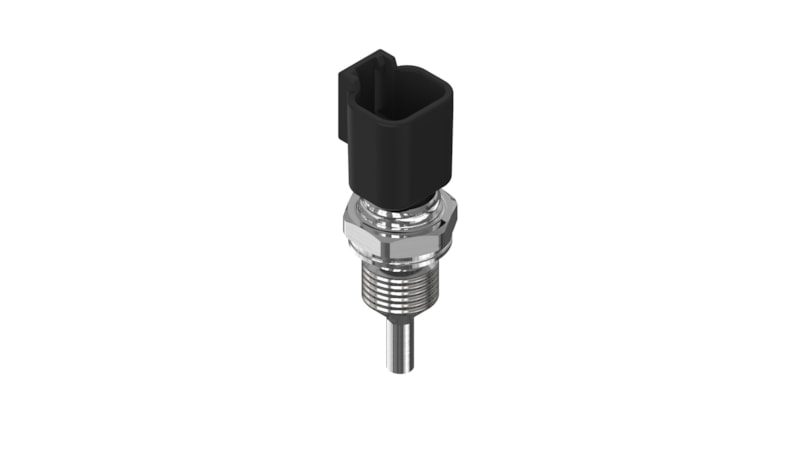

Danfoss MBT 3270 temperature sensor, Pt 100, 28 mm insertion, M14x1.5 process connection (code 084Z2415)
Danfoss · Sensors & Instrumentation · Temperature Sensors
Danfoss MBT 3270 compact temperature sensor, code 084Z2415 (type designation MBT 3270-10001-028-B0C00-000). Rugged fixed-insert RTD/thermistor sensor for engines, compressors and machinery temperature monitoring. Sensor element Pt 100 platinum resistance (100 ohm at 0 C), Class B per EN 60751. Insertion length 28 mm; M14x1.5 male (ISO 965) process connection; AISI 303 stainless steel protection tube, 5 mm diameter. Measuring range -50 to +200 C (-58 to +392 F); resistance (ohm) output. Electrical connection Deutsch DT04, 2-pin; IP67 enclosure per IEC 60529. CE marked.
Specifications
- Part number
- 084Z2415
- HS code
- 9025.19
- Material
- AISI 303 stainless steel
- Temperature range
- -50 to +200 C (-58 to +392 F)
- IP rating
- IP67
- Standard size
- 28 mm insertion
- Thread standard
- ISO 965
Compatibility
MBT 3270 compact sensor. Confirm insertion length (28 mm), process thread (M14x1.5), element (Pt 100) and connector (Deutsch DT04, 2-pin) match the mounting boss and controller input.
Standards
Approvals
