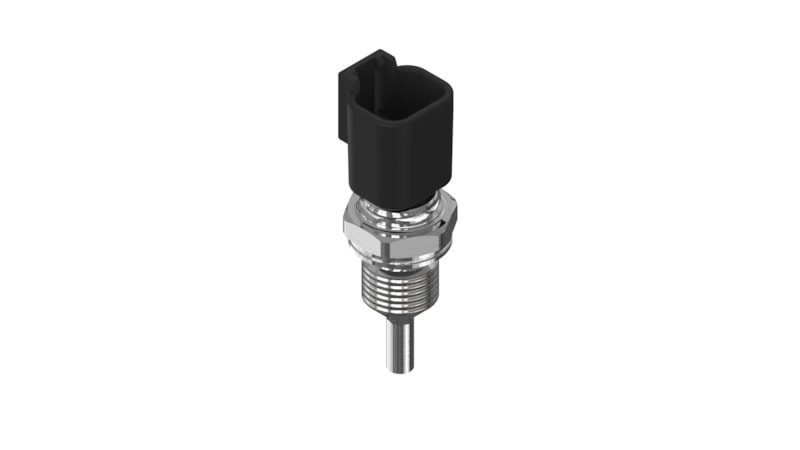

Danfoss MBT 3270 temperature sensor, Pt 1000, 28 mm insertion, M14X1.5 process connection
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBT 3270 compact temperature sensor, code 084Z2416 (type designation MBT 3270-12001-028-B0C00-000). Rugged fixed-insert RTD/thermistor sensor for engines, compressors and machinery temperature monitoring. Sensor element Pt 1000 platinum resistance (1000 ohm at 0 C), Class B per EN 60751. Insertion length 28 mm; M14x1.5 male (ISO 965) process connection; AISI 316 stainless steel protection tube, 5 mm diameter. Measuring range -50 to +200 C (-58 to +392 F); resistance (ohm) output. Electrical connection Deutsch DT04, 2-pin; IP67 enclosure per IEC 60529. CE marked.
Technical Specifications
- Type
- MBT 3270 (compact fixed-insert sensor)
- Type designation
- MBT 3270-12001-028-B0C00-000
- Code number
- 084Z2416
- Sensor element
- Pt 1000 platinum resistance (1000 ohm at 0 C)
- Tolerance
- Class B per EN 60751
- Insertion length
- 28 mm
- Process connection
- M14x1.5 (ISO 965)
- Protection tube
- AISI 316 stainless steel, 5 mm diameter
- Measuring range
- -50 to +200 C (-58 to +392 F)
- Output signal
- Ohm (resistance)
- Electrical connection
- Deutsch DT04, 2-pin
- Enclosure rating
- IP67 per IEC 60529
- Packing quantity
- 40 pc
- Net weight
- 0.03 kg
- Approvals
- CE
- EAN
- 5702428955485
- Product group
- Sensors
- Ambient temperature max. [°C]
- 125 °C
- Ambient temperature max. [°F]
- 257 °F
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Connection material
- AISI 316
- Connection type
- M
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical conn. comments
- Integrated
- Electrical connection size
- 2 pin
- Enclosure rating IP
- IP67
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- In scope of WEEE
- Yes
- Insertion length [in]
- 1.1 in
- Insertion length [mm]
- 28 mm
- Insertion type
- Fixed
- Measuring range [°C] [max]
- 200 °C
- Measuring range [°C] [min]
- -50 °C
- Measuring range [°F] [max]
- 392 °F
- Measuring range [°F] [min]
- -58 °F
- Process connection Male/Female
- Male
- Process connection material
- Stainless steel
- Process connection size
- 14x1.5
- Process connection type
- M
- Protection tube diameter [in]
- 0.197 in
- Protection tube diameter [mm]
- 5 mm
- Protection tube material
- AISI 316
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Sensor elem. resistance [Ohm]
- 1000 Ohm
- Sensor element [pc]
- 1 pc
- Sensor element standard
- EN 60751
- Sensor element tolerance
- Class B
- Sensor element type
- Pt
- Sensor Insert
- Fixed
- Temperature range [°C] [max]
- 200 °C
- Temperature range [°C] [min]
- -50 °C
- Temperature range [°F] [max]
- 392 °F
- Temperature range [°F] [min]
- -58 °F
- Wires [pcs]
- 2 pc
Standards & Compliance
- Size / Series
- 28 mm insertion
- Material
- AISI 316 stainless steel
- Thread Standard
- ISO 965
- Temperature Range
- -50 to +200 C (-58 to +392 F)
- IP Rating
- IP67
- HS Code
- 9025.19
Compatibility & Fitment
MBT 3270 compact sensor. Confirm insertion length (28 mm), process thread (M14x1.5), element (Pt 1000) and connector (Deutsch DT04, 2-pin) match the mounting boss and controller input.
