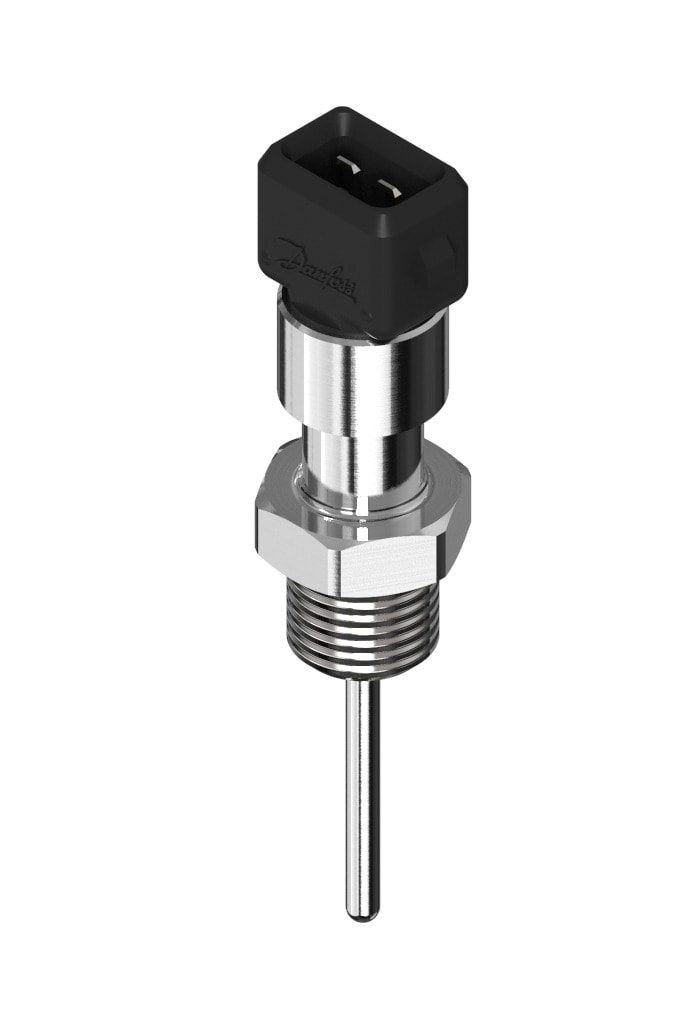

Danfoss MBT 3270 temperature sensor, Pt 1000, 40 mm insertion, NPT 1/2-14 process connection
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBT 3270 compact temperature sensor, code 084Z2403 (type designation MBT 3270-22001-040-0300-0000). Rugged fixed-insert RTD/thermistor sensor for engines, compressors and machinery temperature monitoring. Sensor element Pt 1000 platinum resistance (1000 ohm at 0 C), Class B per EN 60751. Insertion length 40 mm; NPT 1/2-14 male (ANSI/ASME B1.20.1) process connection; stainless steel protection tube, 6 mm diameter. Measuring range -50 to +300 C (-58 to +572 F); resistance (ohm) output. Electrical connection AMP Junior Power Timer, 2-pin; IP67 enclosure per IEC 60529. CE marked.
Technical Specifications
- Type
- MBT 3270 (compact fixed-insert sensor)
- Type designation
- MBT 3270-22001-040-0300-0000
- Code number
- 084Z2403
- Sensor element
- Pt 1000 platinum resistance (1000 ohm at 0 C)
- Tolerance
- Class B per EN 60751
- Insertion length
- 40 mm
- Process connection
- NPT 1/2-14 (ANSI/ASME B1.20.1)
- Protection tube
- stainless steel, 6 mm diameter
- Measuring range
- -50 to +300 C (-58 to +572 F)
- Output signal
- Ohm (resistance)
- Electrical connection
- AMP Junior Power Timer, 2-pin
- Enclosure rating
- IP67 per IEC 60529
- Packing quantity
- 40 pc
- Net weight
- 0.09 kg
- Approvals
- CE
- EAN
- 5715162830703
- Product group
- Sensors
- Ambient temperature max. [°C]
- 125 °C
- Ambient temperature max. [°F]
- 257 °F
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Connection material
- Stainless steel
- Connection type
- NPT
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical connection size
- 2 pin
- Enclosure rating IP
- IP67
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- In scope of WEEE
- Yes
- Insertion length [in]
- 1.57 in
- Insertion length [mm]
- 40 mm
- Insertion type
- Fixed
- Measuring range [°C] [max]
- 300 °C
- Measuring range [°C] [min]
- -50 °C
- Measuring range [°F] [max]
- 572 °F
- Measuring range [°F] [min]
- -58 °F
- Process connection Male/Female
- Male
- Process connection material
- Stainless steel
- Process connection size
- 1/2-14
- Process connection standard
- SUS 303
- Process connection type
- NPT
- Protection tube diameter [in]
- 0.236 in
- Protection tube diameter [mm]
- 6 mm
- Protection tube material
- STAINLEES STEEL
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Sensor elem. resistance [Ohm]
- 1000 Ohm
- Sensor element [pc]
- 1 pc
- Sensor element standard
- EN 60751
- Sensor element tolerance
- Class B
- Sensor element type
- Pt
- Sensor Insert
- Fixed
- Temperature range [°C] [max]
- 300 °C
- Temperature range [°C] [min]
- -50 °C
- Temperature range [°F] [max]
- 572 °F
- Temperature range [°F] [min]
- -58 °F
- Wires [pcs]
- 2 pc
Standards & Compliance
- Size / Series
- 40 mm insertion
- Material
- stainless steel
- Thread Standard
- ANSI/ASME B1.20.1
- Temperature Range
- -50 to +300 C (-58 to +572 F)
- IP Rating
- IP67
- HS Code
- 9025.19
Compatibility & Fitment
MBT 3270 compact sensor. Confirm insertion length (40 mm), process thread (NPT 1/2-14), element (Pt 1000) and connector (AMP Junior Power Timer, 2-pin) match the mounting boss and controller input.
