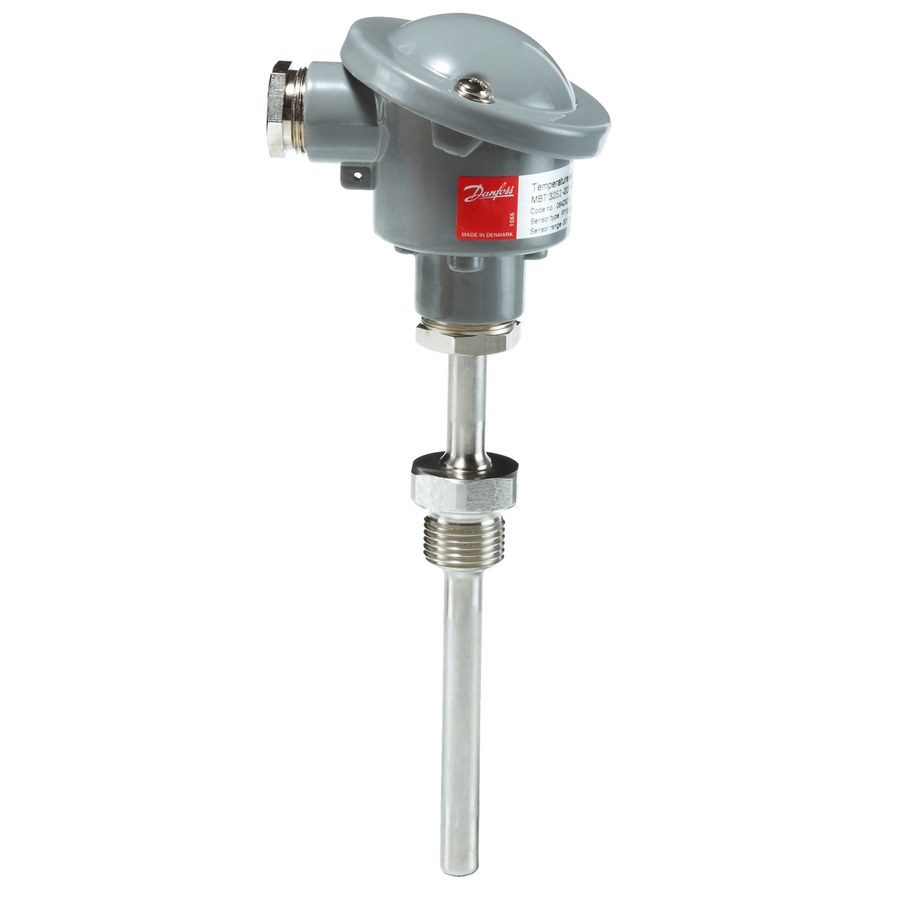

Danfoss MBT 3252 temperature transmitter, Pt 100, 4-20 mA output, 100 mm insertion, R 3/8 process connection
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBT 3252 compact insertion temperature transmitter, code 084Z2384 (type designation MBT 3252-0011-0100-0X0-0GX10). Integrated Pt 100 sensor and 2-wire loop-powered transmitter delivering a 4-20 mA output proportional to the measuring range, for refrigeration, HVAC and machinery control. Pt 100 platinum element (100 ohm at 0 C), Class B tolerance per EN 60751. Insertion length 100 mm plus 50 mm extension; R 3/8 tapered male (ISO 7) process connection; AISI 316 Ti protection tube, 10 mm diameter. Measuring range -50 to +200 C (-58 to +392 F); 8-35 V DC supply; Type B connection head, Pg 16; IP65 enclosure per IEC 60529. CE marked.
Technical Specifications
- Type
- MBT 3252 (compact insertion temperature transmitter)
- Type designation
- MBT 3252-0011-0100-0X0-0GX10
- Code number
- 084Z2384
- Sensor element
- Pt 100 platinum resistance (100 ohm at 0 C)
- Tolerance
- Class B per EN 60751
- Insertion length
- 100 mm
- Extension length
- 50 mm
- Process connection
- R 3/8 (ISO 7 tapered male)
- Protection tube
- AISI 316 Ti stainless steel, 10 mm diameter
- Measuring range
- -50 to +200 C (-58 to +392 F)
- Output signal
- 4-20 mA (2-wire, loop-powered)
- Supply voltage
- 8-35 V DC
- Electrical connection
- Type B connection head, Pg 16
- Enclosure rating
- IP65 per IEC 60529
- Packing quantity
- 8 pc
- Net weight
- 0.378 kg
- Approvals
- CE
- EAN
- 5702428931052
- Product group
- Sensors
- Ambient temperature max. [°C]
- 85 °C
- Ambient temperature max. [°F]
- 185 °F
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Connection material
- Stainless steel
- Connection standard
- ISO 7
- Connection type
- R
- Electrical connection size
- Pg 16
- Enclosure rating IP
- IP65
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- Extension length [in]
- 1.97 in
- Extension length [mm]
- 50 mm
- Insertion length [in]
- 3.94 in
- Insertion length [mm]
- 100 mm
- Insertion type
- Fixed
- Measuring range [°C] [max]
- 100 °C
- Measuring range [°C] [min]
- -20 °C
- Measuring range [°F] [max]
- 212 °F
- Measuring range [°F] [min]
- -4 °F
- Number of terminals [pcs]
- 3 pc
- Output signal [mA] [max]
- 20 mA
- Output signal [mA] [min]
- 4 mA
- Process connection Male/Female
- Male
- Process connection material
- Stainless steel
- Process connection size
- 3/8
- Process connection standard
- ISO 7
- Process connection type
- R
- Protection tube diameter [in]
- 0.394 in
- Protection tube diameter [mm]
- 10 mm
- Protection tube material
- AISI 316 TI
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Sensor elem. resistance [Ohm]
- 100 Ohm
- Sensor element [pc]
- 1 pc
- Sensor element standard
- EN 60751
- Sensor element tolerance
- Class B
- Sensor element type
- Pt
- Sensor Insert
- Exchangeable
- Supply voltage [V] DC [max]
- 35 V
- Supply voltage [V] DC [min]
- 8 V
- Temperature range [°C] [max]
- 200 °C
- Temperature range [°C] [min]
- -50 °C
- Temperature range [°F] [max]
- 392 °F
- Temperature range [°F] [min]
- -58 °F
- Transmitter setting range [°C] [max]
- 100 °C
- Transmitter setting range [°C] [min]
- -20 °C
- Transmitter setting range [°F] [max]
- 212 °F
- Transmitter setting range [°F] [min]
- -4 °F
- Transmitter type
- Standard
- Wires [pcs]
- 2 pc
Standards & Compliance
- Size / Series
- 100 mm insertion
- Material
- AISI 316 Ti stainless steel
- Thread Standard
- ISO 7
- Temperature Range
- -50 to +200 C (-58 to +392 F)
- IP Rating
- IP65
- HS Code
- 9025.19
Compatibility & Fitment
MBT 3252 transmitter (4-20 mA). Confirm the measuring range (-50 to +200 C) matches the receiving controller/PLC scaling and that an 8-35 V DC loop supply is available. Insertion 100 mm, R 3/8 thread.
