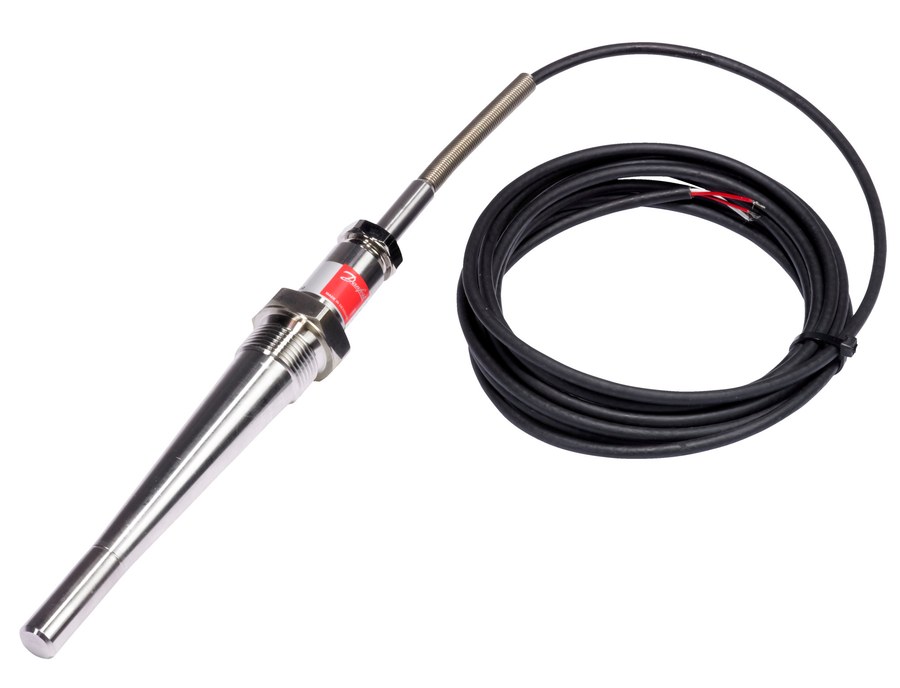

Danfoss MBT 5116 temperature sensor, Pt 100 100 ohm, 70 mm insertion, M18X1.5 process connection
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBT 5116 high-temperature Pt 100 sensor for measurements up to +600 C with an M18x1.5 fitting and a 5 m screened connecting cable, code 084Z7092 (type designation MBT 5116-C000-070-2013-500). Standardized Pt 100 platinum resistance (100 ohm at 0 C), Class B per EN 60751. Insertion length 70 mm insertion; M18x1.5 (ISO 965) process connection; AISI 316 Ti stainless steel, 14-24 mm diameter. Measuring range -50 to +600 C (-58 to +1112 F); output Ohm (resistance). Electrical connection: Cable, 3-wire, 5 m (polyolefine screened). Enclosure IP65 per IEC 60529. CE marked. High-temperature range to +600 C; exchangeable Pt 100 insert; 5 m polyolefine screened cable.
Technical Specifications
- Type
- MBT 5116 (temperature sensor)
- Type designation
- MBT 5116-C000-070-2013-500
- Code number
- 084Z7092
- Sensor element
- Pt 100 platinum resistance (100 ohm at 0 C)
- Tolerance
- Class B per EN 60751
- Insertion length
- 70 mm insertion
- Process connection
- M18x1.5 male (ISO 965)
- Protection tube
- AISI 316 Ti stainless steel, 14-24 mm diameter
- Temperature range
- -50 to +600 C (-58 to +1112 F)
- Output signal
- Ohm (resistance)
- Electrical connection
- Cable, 3-wire, 5 m (polyolefine screened)
- Enclosure rating
- IP65 per IEC 60529
- Packing quantity
- 9 pc
- Net weight
- 0.195 kg
- Approvals
- CE
- EAN
- 5702423202188
- Product group
- Sensors
- Ambient temperature max. [°C]
- 75 °C
- Ambient temperature max. [°F]
- 167 °F
- Approval
- CE
- Cable length [in]
- 19.7 in
- Cable length [m]
- 5 m
- Cable tempr. range [°C] [max]
- 150 °C
- Cable tempr. range [°C] [min]
- -40 °C
- Cable tempr. range [°F] [max]
- 302 °F
- Cable tempr. range [°F] [min]
- -40 °F
- Cable type
- Polyolefine, screened
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Connection material
- AISI 316 Ti
- Connection type
- M
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical connection size
- 3 wire
- Enclosure rating IP
- IP65
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- In scope of WEEE
- Yes
- Insertion length [in]
- 2.76 in
- Insertion length [mm]
- 70 mm
- Insertion type
- Fixed
- Measuring range [°C] [max]
- 600 °C
- Measuring range [°C] [min]
- -50 °C
- Measuring range [°F] [max]
- 1112 °F
- Measuring range [°F] [min]
- -58 °F
- Number of terminals [pcs]
- 3 pc
- Process connection Male/Female
- Male
- Process connection material
- AISI 316 Ti
- Process connection size
- 18x1.5
- Process connection standard
- ISO 965
- Process connection type
- M
- Protection tube diameter [in] [max]
- 0.945 in
- Protection tube diameter [in] [min]
- 0.551 in
- Protection tube diameter [mm] [max]
- 24 mm
- Protection tube diameter [mm] [min]
- 14 mm
- Protection tube material
- AISI 316 TI
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Sensor elem. resistance [Ohm]
- 100 Ohm
- Sensor element [pc]
- 1 pc
- Sensor element standard
- EN 60751
- Sensor element tolerance
- Class B
- Sensor element type
- Pt
- Sensor Insert
- Exchangeable
- Temperature range [°C] [max]
- 600 °C
- Temperature range [°C] [min]
- -50 °C
- Temperature range [°F] [max]
- 1112 °F
- Temperature range [°F] [min]
- -58 °F
- Wires [pcs]
- 2 pc
Standards & Compliance
- Size / Series
- 70 mm insertion
- Material
- AISI 316 Ti stainless steel
- Thread Standard
- ISO 965
- Temperature Range
- -50 to +600 C (-58 to +1112 F)
- IP Rating
- IP65
- HS Code
- 9025.19
Compatibility & Fitment
MBT 5116 insertion sensor. Confirm insertion length (70 mm insertion), process thread (M18x1.5) and element (Pt 100 100 ohm) match the pocket and controller input. The measuring insert is field-replaceable.
Product Documentation
More from Danfoss
Danfoss

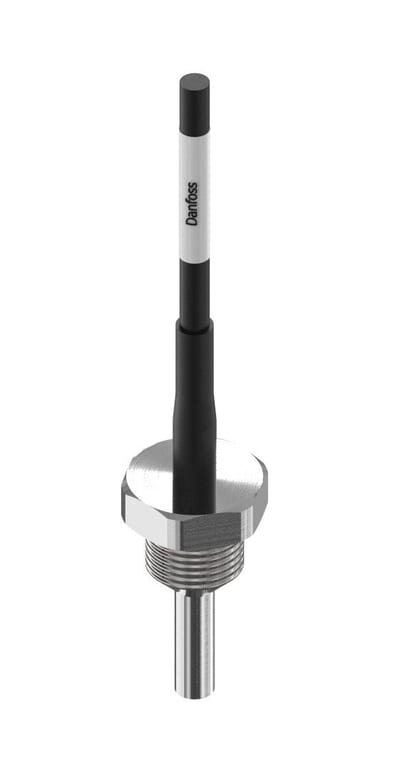

Danfoss MBT 3270 temperature sensor, Pt 1000 1000 ohm, 35 mm insertion, M16X1.5 process connection
084Z7119
Danfoss

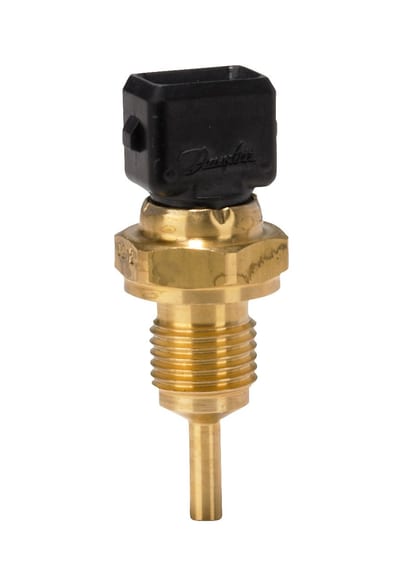

Danfoss MBT 3270 temperature sensor, Pt 100 100 ohm, 22 mm insertion, G 1/4 process connection
084Z7138
Danfoss

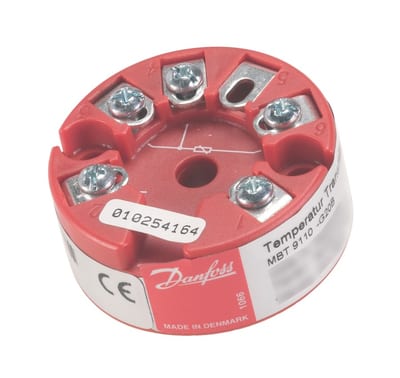

Danfoss MBT 9110 temperature transmitter, Pt 100 input, -10 to +100 C (14 to 212 F) measuring range
084Z7164
Danfoss

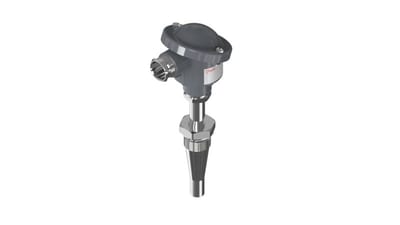

Danfoss MBT 5116 temperature sensor, Pt 100 100 ohm, 80 mm insertion, G 3/4 process connection
084Z7165
Danfoss

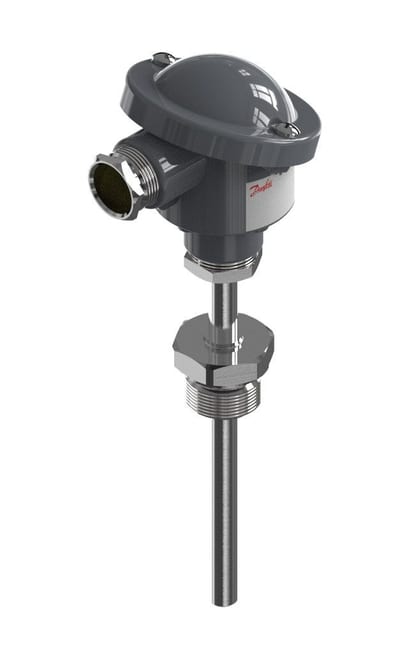

Danfoss MBT 5252 temperature transmitter, Pt 100 100 ohm, 100 mm insertion, G 3/4 process connection
084Z7173
Danfoss

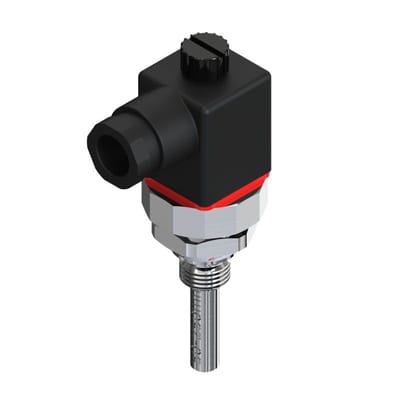

Danfoss MBT 5250 temperature sensor, Pt 100 100 ohm, 40 mm insertion, M14X1.5 process connection
084Z7195
Danfoss

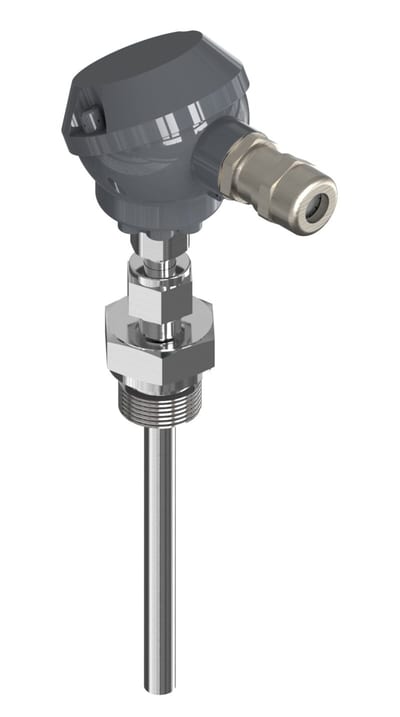

Danfoss MBT 5252 temperature sensor, Pt 100 100 ohm, 100 mm insertion, G 1/2 process connection (code 084Z7203)
Danfoss

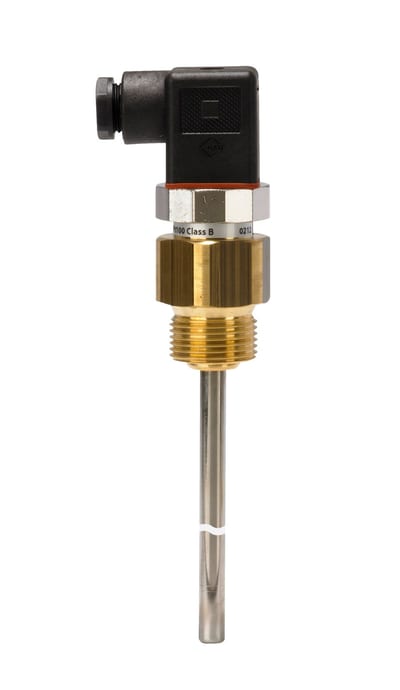

Danfoss MBT 5310 temperature sensor, Pt 100 100 ohm, 115-130 mm adjustable insertion, G 3/4 process connection
