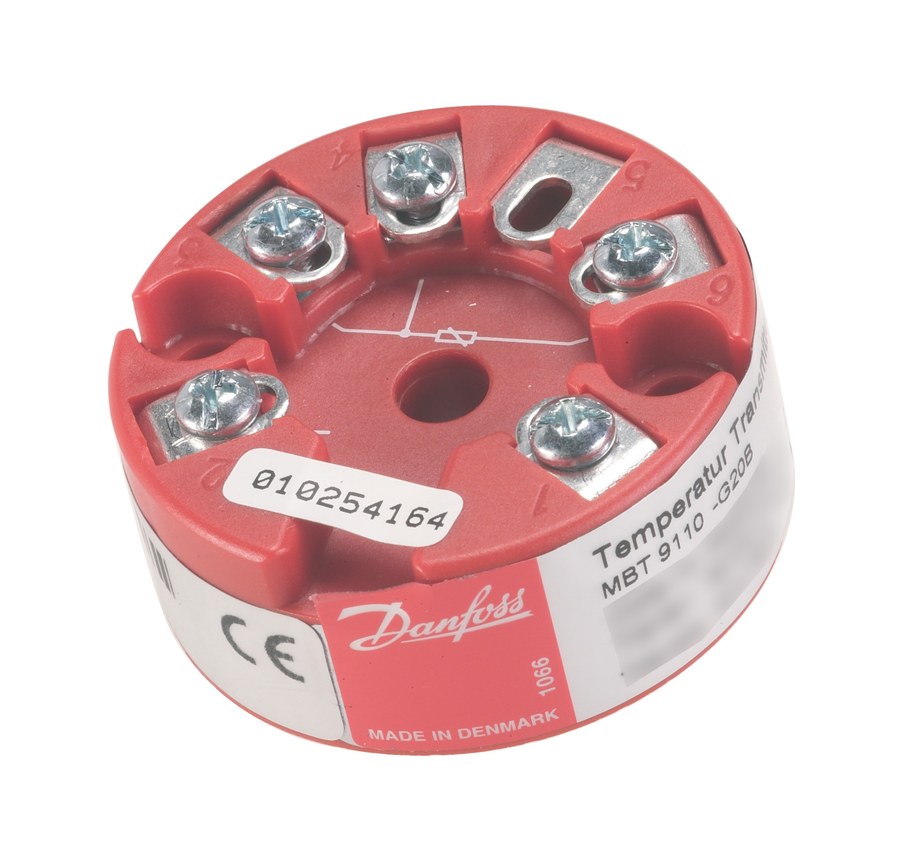

Danfoss MBT 9110 temperature transmitter, Pt 100 input, -10 to +100 C (14 to 212 F) measuring range
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBT 9110 head-mounted 2-wire temperature transmitter module that converts a Pt 100 input into a 4-20 mA signal, factory-scaled -10 to +100 C, code 084Z7164 (type designation MBT 9110-000B-L210). Element: Pt 100 platinum resistance input. Measuring/temperature span -10 to +100 C (14 to 212 F) measuring range; output 4-20 mA, 2-wire (supply 7.2-30 V DC). Electrical connection: 2-wire, screw terminals. Enclosure IP00 per IEC 60529. CE marked. Head-mount transmitter module (IP00, mounts inside a sensor head); ambient temperature maximum +60 C.
Technical Specifications
- Type
- MBT 9110 (temperature transmitter)
- Type designation
- MBT 9110-000B-L210
- Code number
- 084Z7164
- Sensor element
- Pt 100 platinum resistance input
- Temperature range
- -10 to +100 C (14 to 212 F) measuring range
- Output signal
- 4-20 mA, 2-wire (supply 7.2-30 V DC)
- Electrical connection
- 2-wire, screw terminals
- Enclosure rating
- IP00 per IEC 60529
- Packing quantity
- 6 pc
- Net weight
- 0.041 kg
- Approvals
- CE
- EAN
- 5702423192168
- Product group
- Sensors
- Ambient temperature max. [°C]
- 60 °C
- Ambient temperature max. [°F]
- 140 °F
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical connection size
- 2 terminals
- Enclosure rating IP
- IP00
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- In scope of WEEE
- Yes
- Insertion type
- Fixed
- Measuring range [°C] [max]
- 100 °C
- Measuring range [°C] [min]
- -10 °C
- Measuring range [°F] [max]
- 212 °F
- Measuring range [°F] [min]
- 14 °F
- Output signal [mA] [max]
- 20 mA
- Output signal [mA] [min]
- 4 mA
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Sensor elem. resistance [Ohm]
- 100 Ohm
- Sensor element [pc]
- 1 pc
- Sensor element type
- Pt
- Supply voltage [V] DC [max]
- 30 V
- Supply voltage [V] DC [min]
- 7.2 V
- Temperature range [°C] [max]
- 850 °C
- Temperature range [°C] [min]
- -200 °C
- Temperature range [°F] [max]
- 1562 °F
- Temperature range [°F] [min]
- -328 °F
- Transmitter setting range [°C] [max]
- 100 °C
- Transmitter setting range [°C] [min]
- -10 °C
- Transmitter setting range [°F] [max]
- 212 °F
- Transmitter setting range [°F] [min]
- 14 °F
- Transmitter type
- Standard EEx
Standards & Compliance
- Temperature Range
- -10 to +100 C (14 to 212 F) measuring range
- IP Rating
- IP00
- HS Code
- 9025.19
Compatibility & Fitment
MBT 9110 temperature transmitter. Confirm the measuring span, output (4-20 mA, 2-wire (supply 7.2-30 V DC)) and supply voltage suit the input; verify the mounting against the pocket/controller. The measuring insert is field-replaceable.
