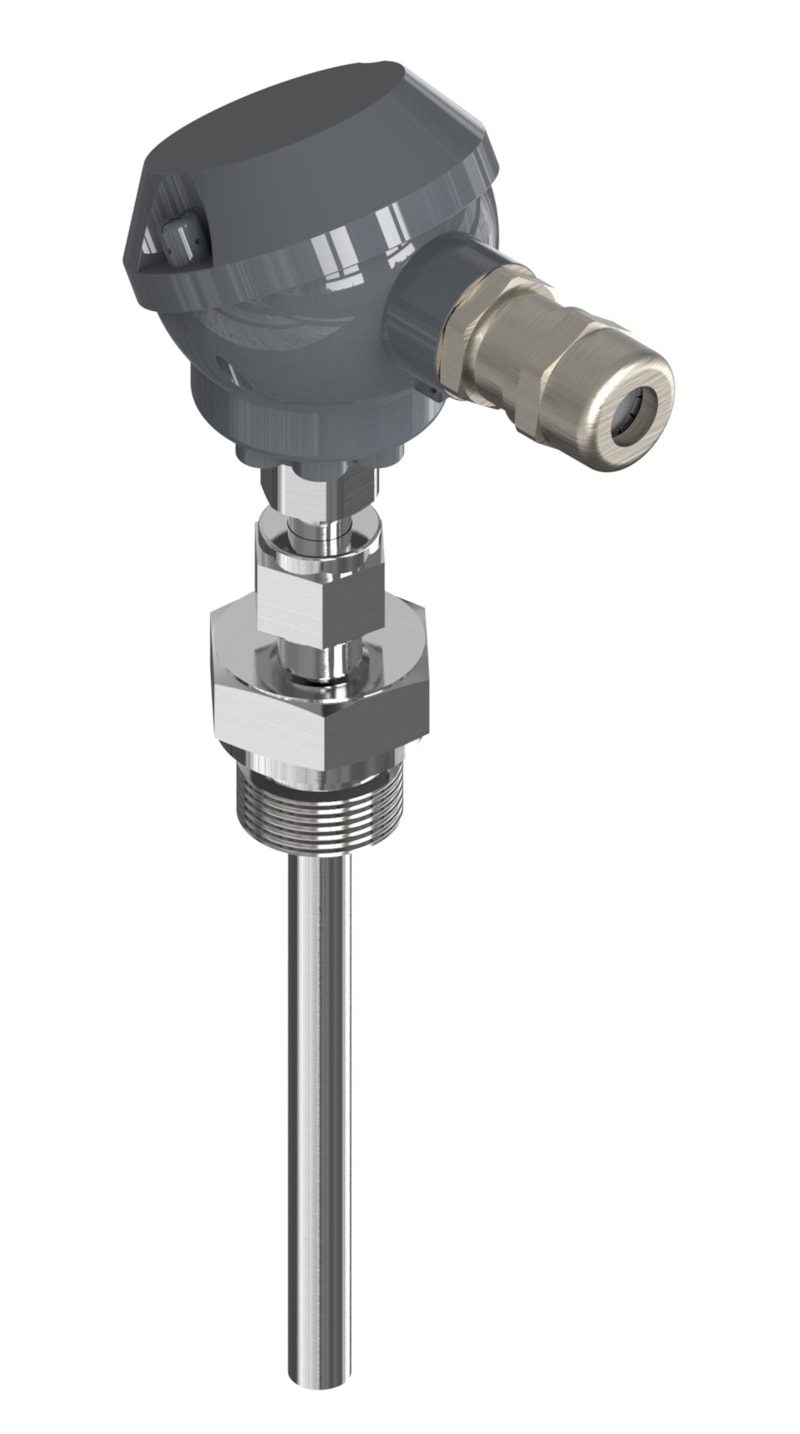

Danfoss MBT 5252 temperature sensor, Pt 100 100 ohm, 100 mm insertion, G 1/2 process connection (code 084Z7203)
Danfoss · Sensors & Instrumentation · Temperature Sensors
Danfoss MBT 5252 heavy-duty insertion sensor with a Class A Pt 100 element (tighter accuracy than the standard Class B build), 100 mm insertion and a Type B mini head, code 084Z7203 (type designation MBT 5252-0000-0100-1F30-0000). Standardized Pt 100 platinum resistance (100 ohm at 0 C), Class A per EN 60751. Insertion length 100 mm insertion; G 1/2 (ISO 228-1-A) process connection; AISI 316 Ti stainless steel, 8 mm diameter. Measuring range -50 to +200 C (-58 to +392 F); output Ohm (resistance). Electrical connection: Type B mini connection head, M16. Enclosure IP65 per IEC 60529. CE marked. Class A Pt 100 element (tighter tolerance than Class B variants); Type B mini head (M16).
Specifications
- Part number
- 084Z7203
- HS code
- 9025.19
- Material
- AISI 316 Ti stainless steel
- Temperature range
- -50 to +200 C (-58 to +392 F)
- IP rating
- IP65
- Standard size
- 100 mm insertion
- Thread standard
- ISO 228-1-A
Compatibility
MBT 5252 insertion sensor. Confirm insertion length (100 mm insertion), process thread (G 1/2) and element (Pt 100 100 ohm) match the pocket and controller input. The measuring insert is field-replaceable.
Standards
- EN 60751
- ISO 228-1-A
- IEC 60529
