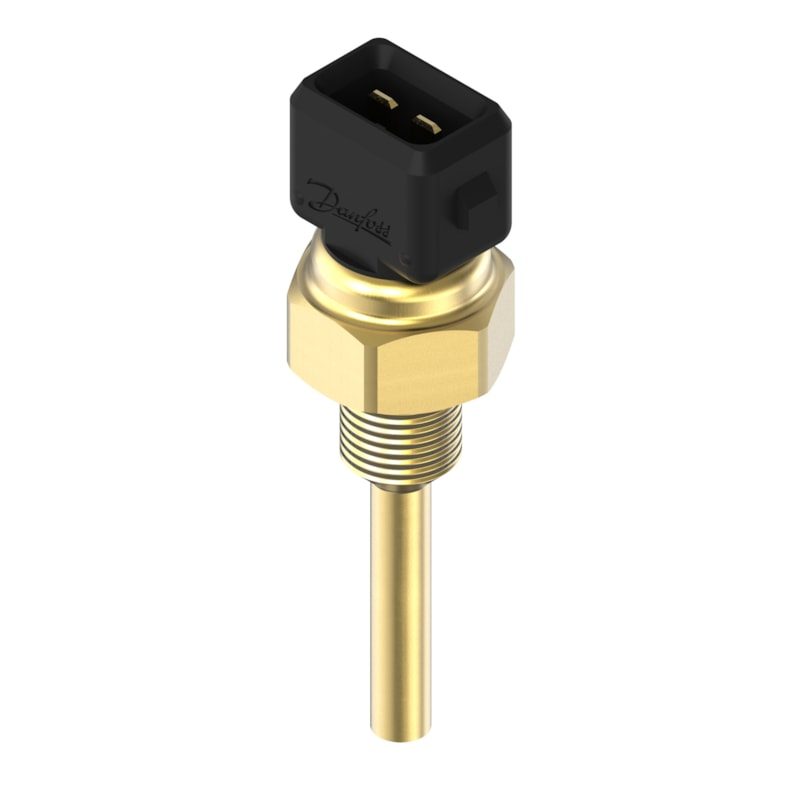

Danfoss MBT 3270 temperature sensor, NTC 3000 ohm, 37 mm insertion, M10X1 process connection
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBT 3270 compact refrigeration and air-conditioning sensor with an NTC element (3000 ohm, +/-1 %), brass M10x1 pocket and an AMP Junior Power Timer 2-pin connector, code 084Z7269 (type designation MBT 3270-0A150-037-30300-000). Standardized NTC (3000 ohm), +/-1 %. Insertion length 37 mm insertion; M10x1 (ISO 965) process connection; Brass, 5 mm diameter. Measuring range -50 to +150 C (-58 to +302 F); output Ohm (resistance). Electrical connection: AMP Junior Power Timer, 2-pin. Enclosure IP67 per IEC 60529. CE marked. NTC element (3000 ohm, +/-1 %); brass protection tube; AMP Junior Power Timer 2-pin connector; IP67.
Technical Specifications
- Type
- MBT 3270 (temperature sensor)
- Type designation
- MBT 3270-0A150-037-30300-000
- Code number
- 084Z7269
- Sensor element
- NTC (3000 ohm)
- Tolerance
- +/-1 %
- Insertion length
- 37 mm insertion
- Process connection
- M10x1 male (ISO 965)
- Protection tube
- Brass, 5 mm diameter
- Temperature range
- -50 to +150 C (-58 to +302 F)
- Output signal
- Ohm (resistance)
- Electrical connection
- AMP Junior Power Timer, 2-pin
- Enclosure rating
- IP67 per IEC 60529
- Packing quantity
- 40 pc
- Net weight
- 0.025 kg
- Approvals
- CE
- EAN
- 5702423200993
- Product group
- Sensors
- Ambient temperature max. [°C]
- 125 °C
- Ambient temperature max. [°F]
- 257 °F
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Connection material
- Brass
- Connection type
- M
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical conn. comments
- Integrated
- Electrical connection size
- 2 pin
- Enclosure rating IP
- IP67
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- In scope of WEEE
- Yes
- Insertion length [in]
- 1.46 in
- Insertion length [mm]
- 37 mm
- Insertion type
- Fixed
- Measuring range [°C] [max]
- 150 °C
- Measuring range [°C] [min]
- -50 °C
- Measuring range [°F] [max]
- 302 °F
- Measuring range [°F] [min]
- -58 °F
- Process connection Male/Female
- Male
- Process connection material
- Brass
- Process connection size
- 10x1
- Process connection standard
- ISO 965
- Process connection type
- M
- Protection tube diameter [in]
- 0.197 in
- Protection tube diameter [mm]
- 5 mm
- Protection tube material
- BRASS
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Sensor elem. resistance [Ohm]
- 3000 Ohm
- Sensor element [pc]
- 1 pc
- Sensor element tolerance
- ± 1%
- Sensor element type
- NTC
- Sensor Insert
- Fixed
- Temperature range [°C] [max]
- 150 °C
- Temperature range [°C] [min]
- -50 °C
- Temperature range [°F] [max]
- 302 °F
- Temperature range [°F] [min]
- -58 °F
- Wires [pcs]
- 2 pc
Standards & Compliance
- Size / Series
- 37 mm insertion
- Material
- Brass
- Thread Standard
- ISO 965
- Temperature Range
- -50 to +150 C (-58 to +302 F)
- IP Rating
- IP67
- HS Code
- 9025.19
Compatibility & Fitment
MBT 3270 insertion sensor. Confirm insertion length (37 mm insertion), process thread (M10x1) and element (NTC 3000 ohm) match the pocket and controller input.
