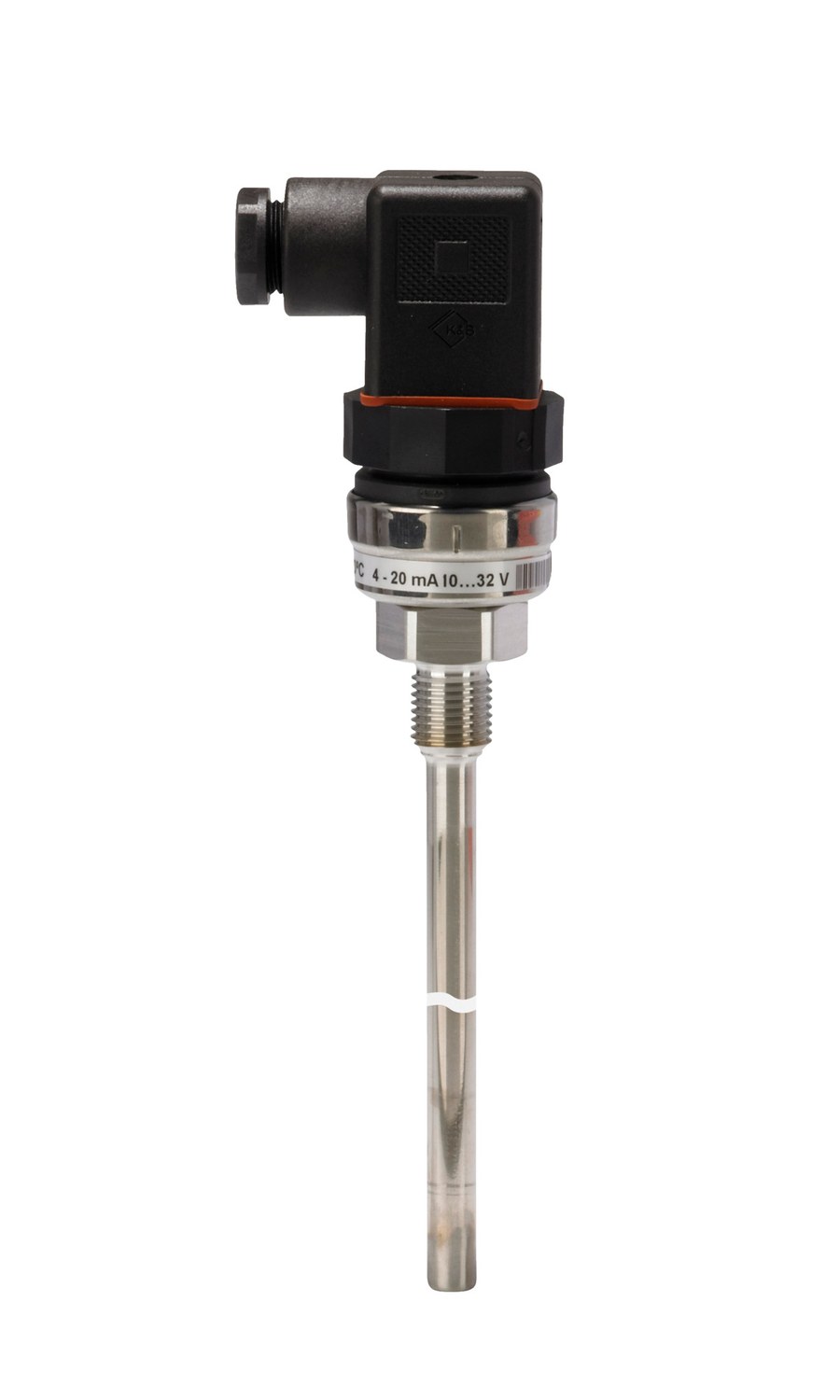

Danfoss MBT 3560 temperature transmitter, Pt 1000 with built-in 4-20 mA transmitter, 250 mm insertion, G 1/4 process connection (code 084Z4106)
Danfoss · Sensors & Instrumentation · Temperature Sensors
Danfoss MBT 3560 insertion temperature transmitter, code 084Z4106 (type designation MBT 3560-0000-0250-10-415). Compact temperature sensor with integrated 2-wire transmitter that converts the resistance of a built-in Pt 1000 platinum element into a standardized 4-20 mA (2-wire) signal, so a defined temperature span is transmitted directly without a separate head or rail transmitter. For engine cooling water, lubricating and hydraulic oil, compressor and HVAC/R circuits, and marine and industrial plant. Insertion length 250 mm; G 1/4 male process connection (ISO 228-1-A); AISI 316 Ti stainless-steel protection tube, 8 mm. Measuring range -50 to +200 C (-58 to +392 F). Output 4-20 mA (2-wire); supply 10-32 V DC. Electrical connection: Angular connector, Pg 9 (EN 175301-803-A). IP65 enclosure per IEC 60529. Supplied in a 9-piece multipack. CE marked.
Specifications
- Part number
- 084Z4106
- HS code
- 9025.19
- Material
- AISI 316 Ti stainless steel
- Temperature range
- -50 to +200 C
- IP rating
- IP65
- Standard size
- 250 mm insertion
- Thread standard
- ISO 228-1-A
Compatibility
MBT 3560 sensor with factory built-in transmitter — the 4-20 mA (2-wire) span is preset by the type designation and is not field-rangeable on the standard version. Confirm the required insertion length (250 mm), process thread (G 1/4), output (4-20 mA (2-wire)) and supply (10-32 V DC) match the pocket/thermowell and controller input before ordering. A matching thermowell can be ordered separately.
