Danfoss MBT 3560 temperature transmitter, Pt 1000 with built-in 4-20 mA transmitter, 50 mm insertion, NPT 1/2-14 process connection (code 084Z4114)
Danfoss · Sensors & Instrumentation · Temperature Sensors

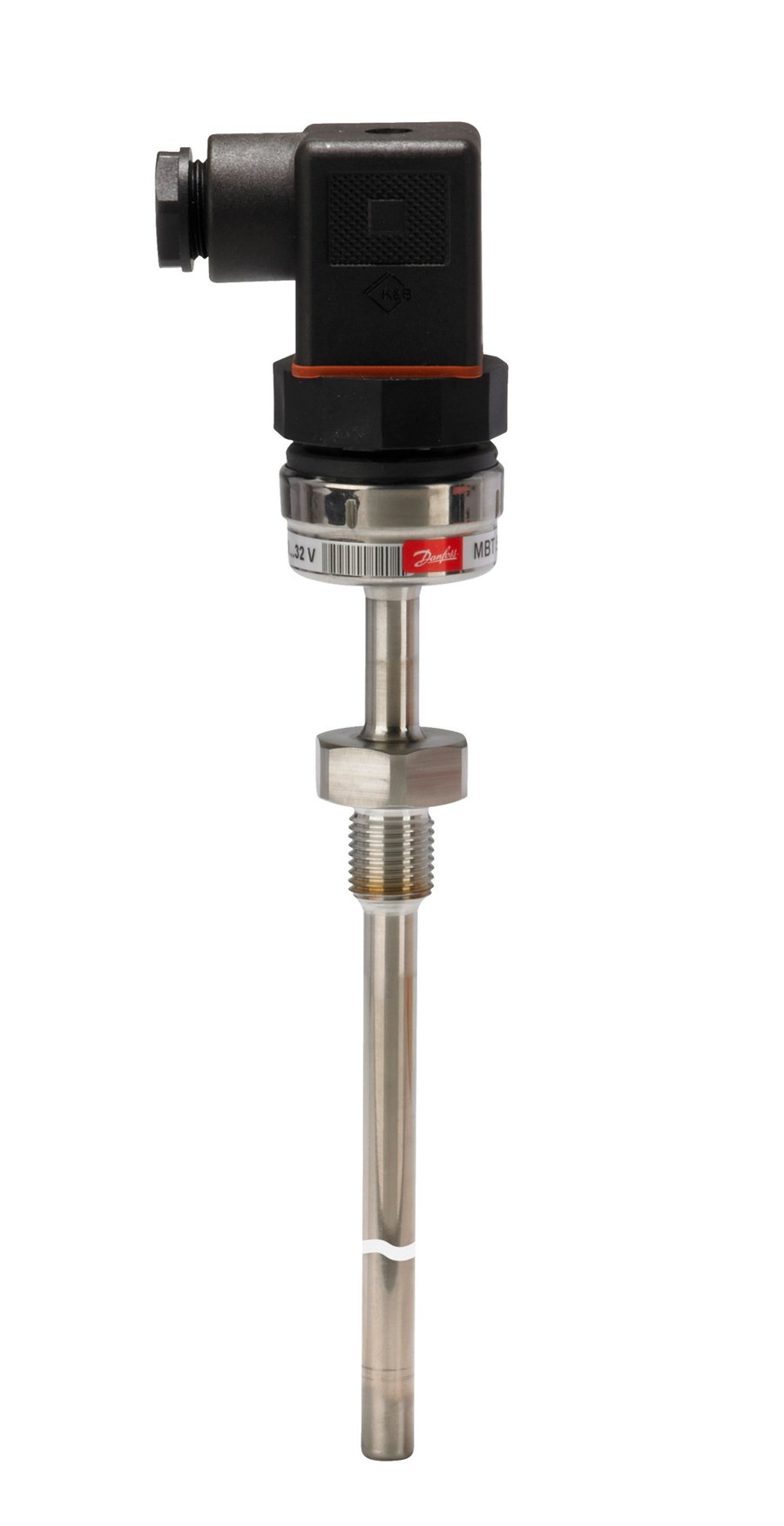

Danfoss MBT 3560 insertion temperature transmitter, code 084Z4114 (type designation MBT 3560-0001-0050-17-415). Compact temperature sensor with integrated 2-wire transmitter that converts the resistance of a built-in Pt 1000 platinum element into a standardized 4-20 mA (2-wire) signal, so a defined temperature span is transmitted directly without a separate head or rail transmitter. For engine cooling water, lubricating and hydraulic oil, compressor and HVAC/R circuits, and marine and industrial plant. Insertion length 50 mm; NPT 1/2-14 male process connection (ANSI/ASME B1.20.1); AISI 316 Ti stainless-steel protection tube, 8 mm. Measuring range -50 to +200 C (-58 to +392 F). Output 4-20 mA (2-wire); supply 10-32 V DC. Electrical connection: Angular connector, Pg 9 (EN 175301-803-A). IP65 enclosure per IEC 60529. Supplied in a 13-piece multipack. CE marked.
Specifications
- Part number
- 084Z4114
- HS code
- 9025.19
- Material
- AISI 316 Ti stainless steel
- Temperature range
- -50 to +200 C
- IP rating
- IP65
- Standard size
- 50 mm insertion
- Thread standard
- ANSI/ASME B1.20.1
Compatibility
MBT 3560 sensor with factory built-in transmitter — the 4-20 mA (2-wire) span is preset by the type designation and is not field-rangeable on the standard version. Confirm the required insertion length (50 mm), process thread (NPT 1/2-14), output (4-20 mA (2-wire)) and supply (10-32 V DC) match the pocket/thermowell and controller input before ordering. A matching thermowell can be ordered separately.
