Product Description

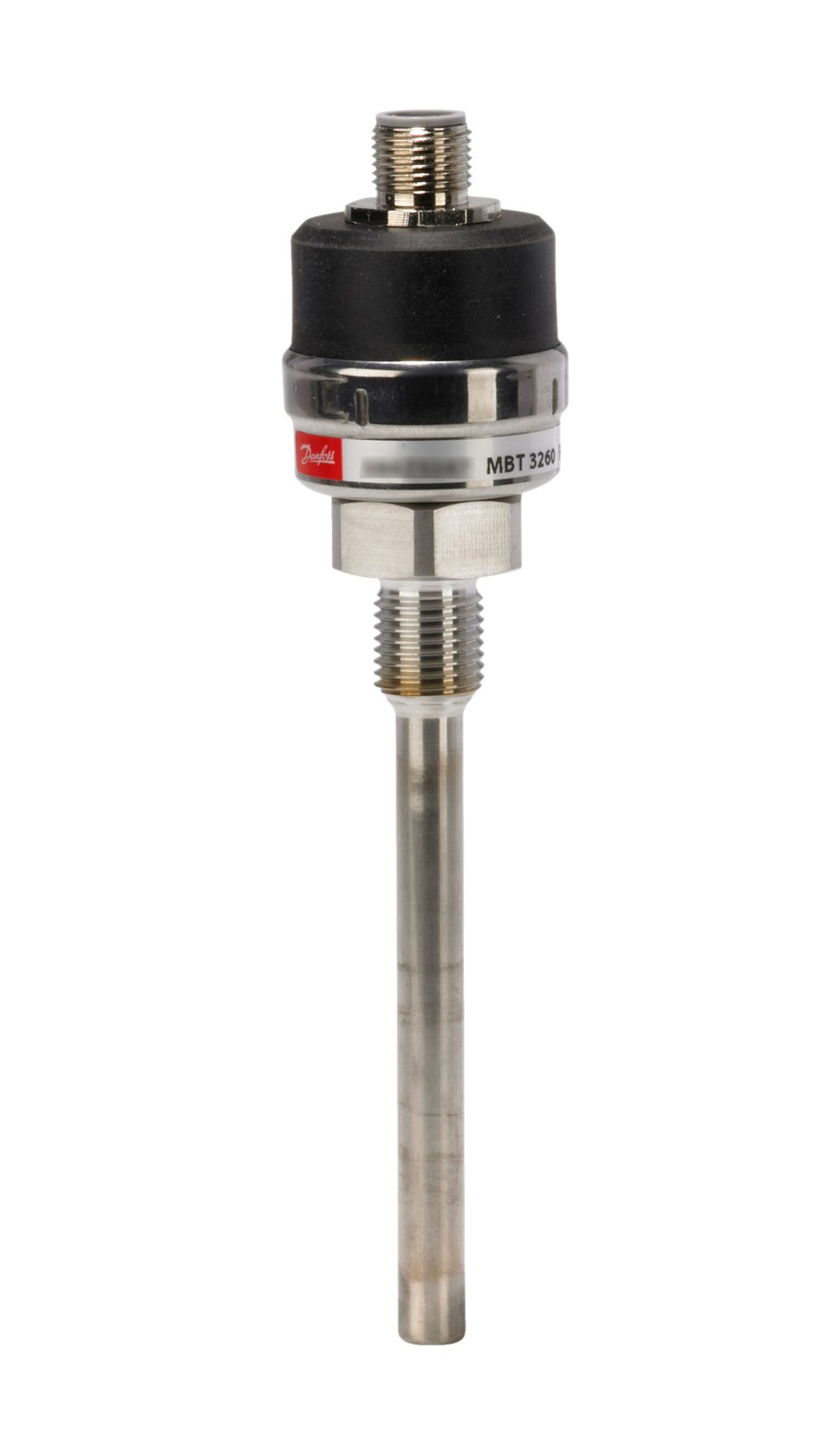

Danfoss MBT 3560 insertion temperature transmitter, code 084Z4121 (type designation MBT 3560-0100-0040-60-415). Compact temperature sensor with integrated 2-wire transmitter that converts the resistance of a built-in Pt 1000 platinum element into a standardized 0.25-4.75 V DC (ratiometric) signal, so a defined temperature span is transmitted directly without a separate head or rail transmitter. For engine cooling water, lubricating and hydraulic oil, compressor and HVAC/R circuits, and marine and industrial plant. Insertion length 40 mm; G 1/4 male process connection (ISO 228-1-A); AISI 316 Ti stainless-steel protection tube, 8 mm. Measuring range -50 to +200 C (-58 to +392 F). Output 0.25-4.75 V DC (ratiometric); supply 5 V DC. Electrical connection: M12 x 1, 4-pin (IEC 61076-2-101). IP67 enclosure per IEC 60529. Supplied in a 13-piece multipack. CE marked.
Technical Specifications
- Type
- MBT 3560 temperature transmitter (sensor with built-in transmitter)
- Type designation
- MBT 3560-0100-0040-60-415
- Code number
- 084Z4121
- Sensor element
- Pt 1000 platinum resistance (1000 ohm at 0 C), EN 60751
- Measuring range
- -50 to +200 C (-58 to +392 F)
- Output signal
- 0.25-4.75 V DC (ratiometric)
- Supply voltage
- 5 V DC
- Insertion length
- 40 mm
- Process connection
- G 1/4 male, ISO 228-1-A
- Protection tube
- AISI 316 Ti stainless steel, 8 mm dia.
- Electrical connection
- M12 x 1, 4-pin (IEC 61076-2-101)
- Enclosure rating
- IP67 per IEC 60529
- Net weight
- 0.087 kg
- Packing format
- Multi pack (13 pc)
- Approvals
- CE
- EAN
- 5702423292233
- Product group
- Sensors
- Ambient temperature max. [°C]
- 85 °C
- Ambient temperature max. [°F]
- 185 °F
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Connection material
- Stainless steel
- Connection standard
- ISO 228
- Connection type
- G
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical conn. Male/Female
- Male
- Electrical connection size
- 4 pin
- Electrical connection standard
- IEC 61076-2-101
- Enclosure rating IP
- IP67
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- In scope of WEEE
- Yes
- Insertion length [in]
- 1.57 in
- Insertion length [mm]
- 40 mm
- Insertion type
- Fixed
- Measuring range [°C] [max]
- 150 °C
- Measuring range [°C] [min]
- -50 °C
- Measuring range [°F] [max]
- 302 °F
- Measuring range [°F] [min]
- -58 °F
- Output signal [V] [max]
- 4.75 V
- Output signal [V] [min]
- 0.25 V
- Process connection Male/Female
- Male
- Process connection material
- Stainless steel
- Process connection size
- 1/4
- Process connection standard
- ISO 228-1-A
- Process connection type
- G
- Protection tube diameter [in]
- 0.315 in
- Protection tube diameter [mm]
- 8 mm
- Protection tube material
- AISI 316 TI
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Sensor elem. resistance [Ohm]
- 1000 Ohm
- Sensor element [pc]
- 1 pc
- Sensor element tolerance
- < ± 1% FS
- Sensor element type
- Pt
- Sensor Insert
- Fixed
- Supply voltage [V] DC
- 5 V
- Temperature range [°C] [max]
- 200 °C
- Temperature range [°C] [min]
- -50 °C
- Temperature range [°F] [max]
- 392 °F
- Temperature range [°F] [min]
- -58 °F
- Transmitter setting range [°C] [max]
- 150 °C
- Transmitter setting range [°C] [min]
- -50 °C
- Transmitter setting range [°F] [max]
- 302 °F
- Transmitter setting range [°F] [min]
- -58 °F
- Transmitter type
- Integrated
Standards & Compliance
- Size / Series
- 40 mm insertion
- Material
- AISI 316 Ti stainless steel
- Thread Standard
- ISO 228-1-A
- Temperature Range
- -50 to +200 C
- IP Rating
- IP67
- HS Code
- 9025.19
Compatibility & Fitment
MBT 3560 sensor with factory built-in transmitter — the 0.25-4.75 V DC (ratiometric) span is preset by the type designation and is not field-rangeable on the standard version. Confirm the required insertion length (40 mm), process thread (G 1/4), output (0.25-4.75 V DC (ratiometric)) and supply (5 V DC) match the pocket/thermowell and controller input before ordering. A matching thermowell can be ordered separately.
