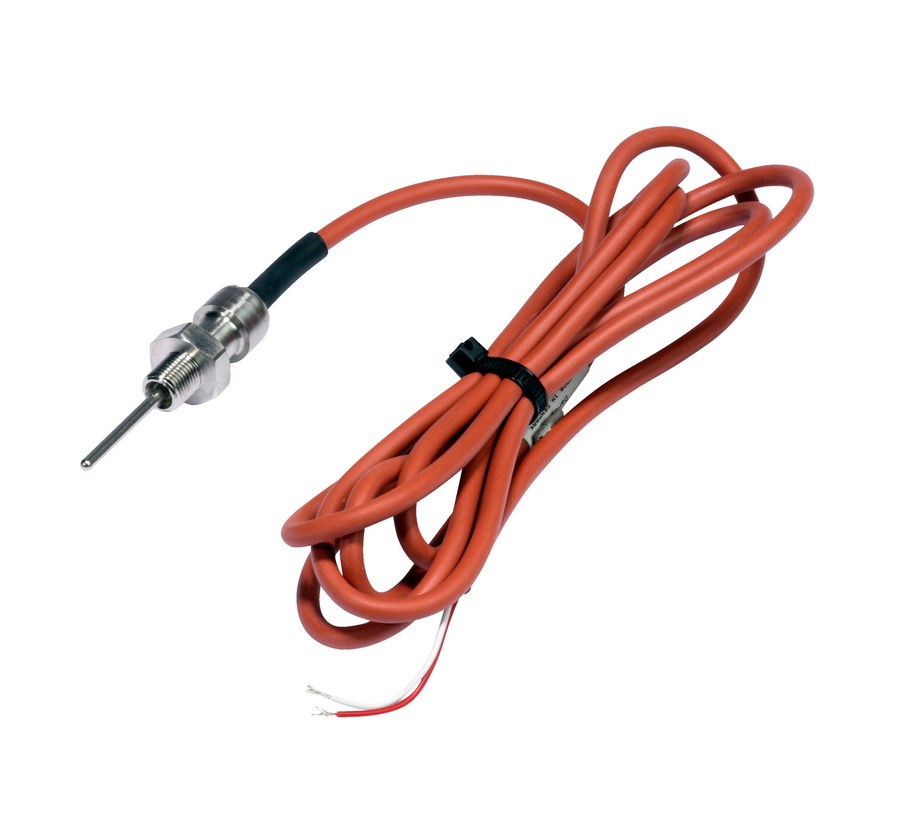

Danfoss MBT 3270 temperature sensor, Pt 100 100 ohm, 20 mm insertion, G 1/4 process connection (code 084Z7284)
Danfoss · Sensors & Instrumentation · Temperature Sensors
Danfoss MBT 3270 compact refrigeration and air-conditioning sensor with a 4 mm AISI 316 Ti tip, G 1/4 thread and a 3 m screened cable, code 084Z7284 (type designation MBT 3270-00001-020-00017-300). Standardized Pt 100 platinum resistance (100 ohm at 0 C), Class B per EN 60751. Insertion length 20 mm insertion; G 1/4 (ISO 228-1-A) process connection; AISI 316 Ti stainless steel, 4 mm diameter. Measuring range -50 to +150 C (-58 to +302 F); output Ohm (resistance). Electrical connection: Cable, 3-wire, 3 m (polyolefine screened). Enclosure IP54 per IEC 60529. CE marked. 4 mm tip; G 1/4 thread; 3 m polyolefine screened cable.
Specifications
- Part number
- 084Z7284
- HS code
- 9025.19
- Material
- AISI 316 Ti stainless steel
- Temperature range
- -50 to +150 C (-58 to +302 F)
- IP rating
- IP54
- Standard size
- 20 mm insertion
- Thread standard
- ISO 228-1-A
Compatibility
MBT 3270 insertion sensor. Confirm insertion length (20 mm insertion), process thread (G 1/4) and element (Pt 100 100 ohm) match the pocket and controller input.
Standards
- EN 60751
- ISO 228-1-A
- IEC 60529
Approvals
