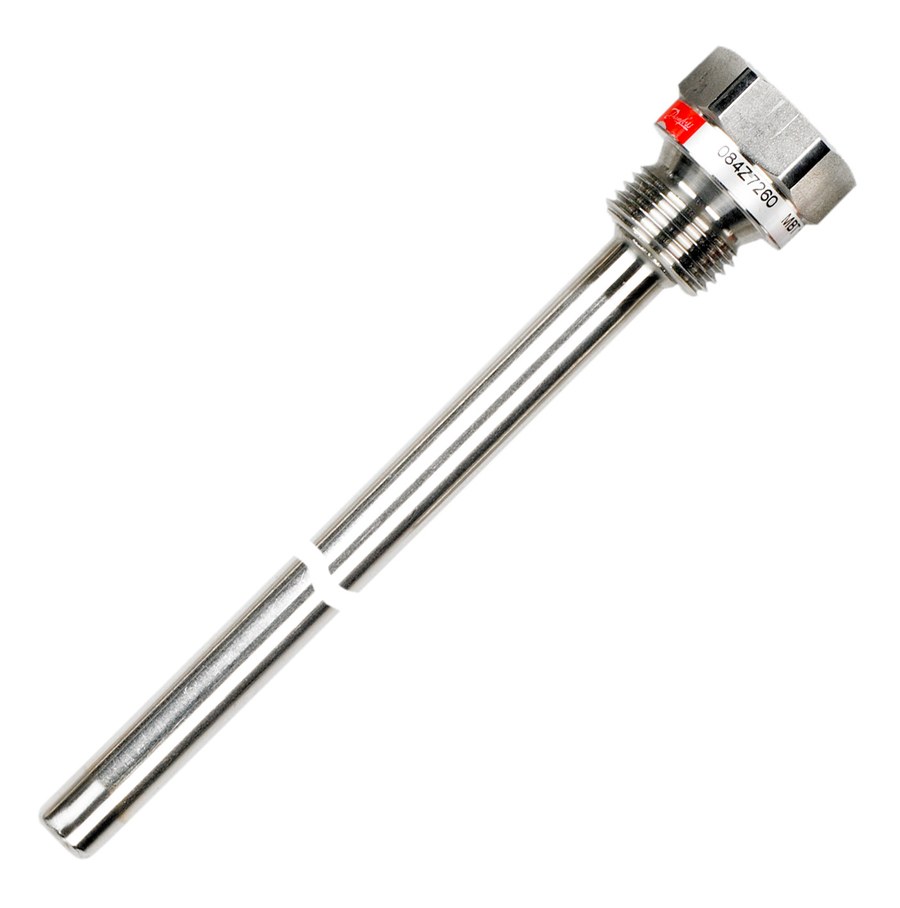

Danfoss MBT 120 sensor pocket (thermowell), 250 mm insertion, G 1/2 process connection, AISI 316 Ti 11 mm
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBT 120 thermowell (sensor pocket) with an 11 mm AISI 316 Ti tube and G 1/2 process thread, allowing an MBT 3560 or MBT 5560 sensor to be removed without breaking the process seal, code 084Z7262 (type designation MBT 120-630-250-3). Insertion length 250 mm insertion; G 1/2 (ISO 228-1-A) process connection; AISI 316 Ti stainless steel, 11 mm diameter. Rated for medium temperatures -50 to +200 C (-58 to +392 F). CE marked.
Technical Specifications
- Type
- MBT 120 (sensor pocket)
- Type designation
- MBT 120-630-250-3
- Code number
- 084Z7262
- Insertion length
- 250 mm insertion
- Process connection
- G 1/2 male (ISO 228-1-A)
- Protection tube
- AISI 316 Ti stainless steel, 11 mm diameter
- Temperature range
- -50 to +200 C (-58 to +392 F)
- Packing quantity
- 20 pc
- Net weight
- 0.142 kg
- Approvals
- CE
- EAN
- 5702423201723
- Product group
- Accessories, sensors
- Connection material
- AISI 316 Ti
- Connection standard
- ISO 228
- Connection type
- G
- UL mark
- No
- CE mark
- Yes
- REACH candidate-list substances
- No
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- In scope of WEEE
- Yes
- Insertion type
- Fixed
- Process connection Male/Female
- Male
- Process connection material
- AISI 316 Ti
- Process connection size
- 1/2
- Process connection standard
- ISO 228-1-A
- Process connection type
- G
- Protection tube diameter
- 11.0 mm
- Protection tube material
- AISI 316 TI
- EU RoHS compliance
- Yes
Standards & Compliance
- Size / Series
- 250 mm insertion
- Material
- AISI 316 Ti stainless steel
- Thread Standard
- ISO 228-1-A
- Temperature Range
- -50 to +200 C (-58 to +392 F)
- HS Code
- 9025.90
Compatibility & Fitment
MBT 120 sensor pocket for MBT 3560 / MBT 5560 sensors. Confirm insertion length (250 mm), thread (G 1/2) and bore match the sensor and process fitting.
