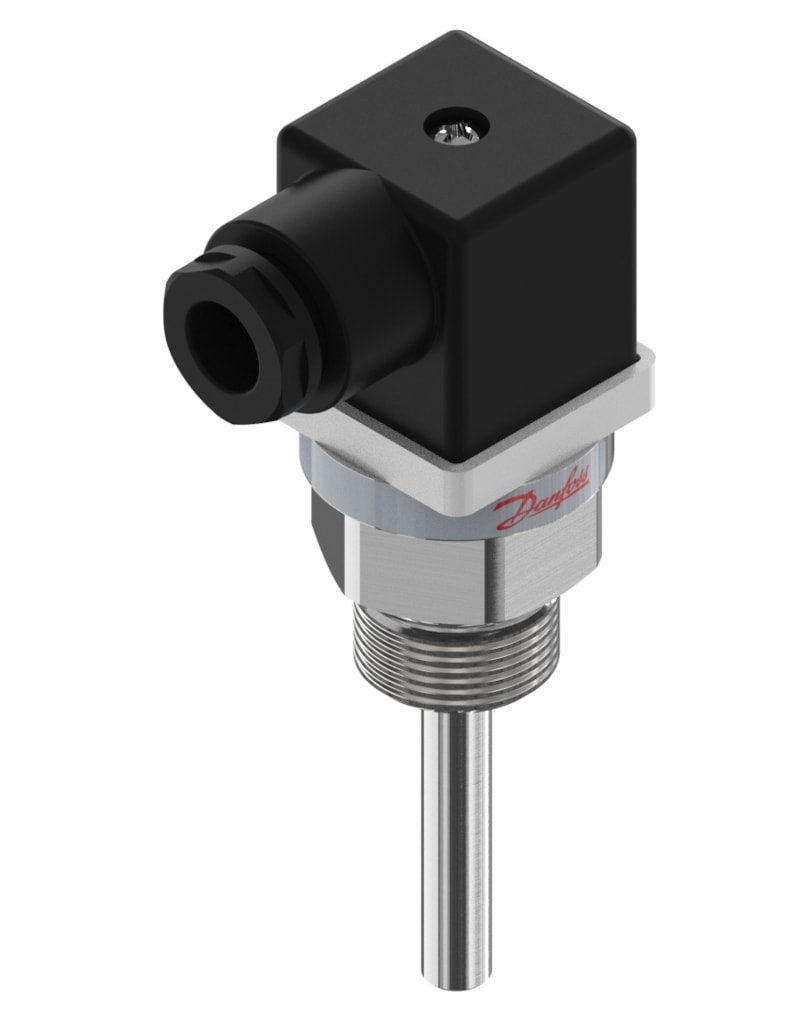

Danfoss MBT 3270 temperature sensor, PTC 80 ohm, 53 mm insertion, G 1/2 process connection (code 084Z7243)
Danfoss · Sensors & Instrumentation · Temperature Sensors
Danfoss MBT 3270 refrigeration and air-conditioning sensor with a PTC element (80 ohm, +/-5 C), brass G 1/2 pocket and an angular DIN plug connector, code 084Z7243 (type designation MBT 3270-0C500-053-20600-000). Standardized PTC (80 ohm), +/-5 C. Insertion length 53 mm insertion; G 1/2 (ISO 228-1-A) process connection; Brass, 6.5 mm diameter. Measuring range -50 to +150 C (-58 to +302 F); output Ohm (resistance). Electrical connection: Angular connector, Pg 9 (EN 175301-803-A). Enclosure IP54 per IEC 60529. CE marked. PTC element (80 ohm, +/-5 C); brass protection tube; angular connector to EN 175301-803-A (Pg 9).
Specifications
- Part number
- 084Z7243
- HS code
- 9025.19
- Material
- Brass
- Temperature range
- -50 to +150 C (-58 to +302 F)
- IP rating
- IP54
- Standard size
- 53 mm insertion
- Thread standard
- ISO 228-1-A
Compatibility
MBT 3270 insertion sensor. Confirm insertion length (53 mm insertion), process thread (G 1/2) and element (PTC 80 ohm) match the pocket and controller input.
Standards
- ISO 228-1-A
- EN 175301-803-A
- IEC 60529
Approvals
