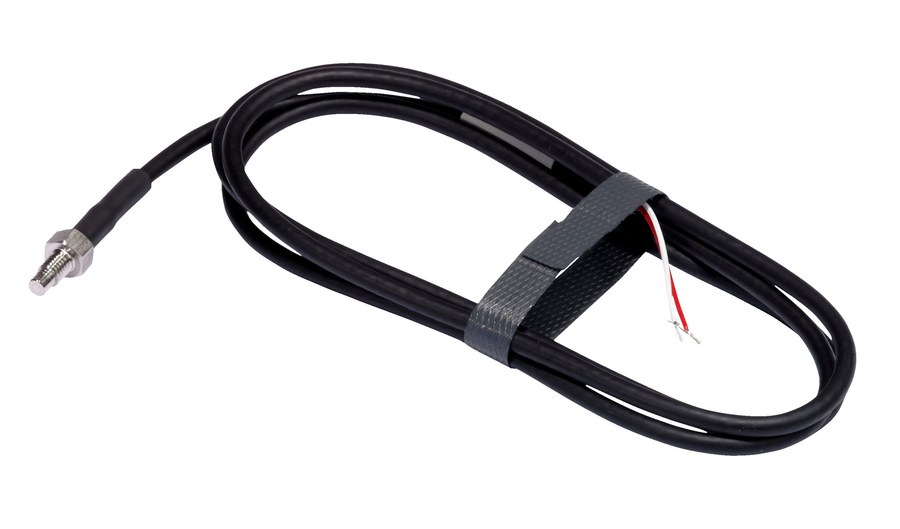

Danfoss MBT 3270 temperature sensor, Pt 100 100 ohm, 12 mm insertion, M6X1 process connection
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBT 3270 miniature refrigeration and air-conditioning sensor with a 3.8 mm AISI 303 tip, M6x1 thread and a 1.3 m screened cable, code 084Z7237 (type designation MBT 3270-00002-012-A0007-013). Standardized Pt 100 platinum resistance (100 ohm at 0 C), Class B per EN 60751. Insertion length 12 mm insertion; M6x1 (ISO 965) process connection; AISI 303 stainless steel, 3.8 mm diameter. Measuring range -50 to +150 C (-58 to +302 F); output Ohm (resistance). Electrical connection: Cable, 2-wire, 1.3 m (polyolefine screened). Enclosure IP54 per IEC 60529. CE marked. Miniature 3.8 mm tip; M6x1 thread; 1.3 m polyolefine screened cable.
Technical Specifications
- Type
- MBT 3270 (temperature sensor)
- Type designation
- MBT 3270-00002-012-A0007-013
- Code number
- 084Z7237
- Sensor element
- Pt 100 platinum resistance (100 ohm at 0 C)
- Tolerance
- Class B per EN 60751
- Insertion length
- 12 mm insertion
- Process connection
- M6x1 male (ISO 965)
- Protection tube
- AISI 303 stainless steel, 3.8 mm diameter
- Temperature range
- -50 to +150 C (-58 to +302 F)
- Output signal
- Ohm (resistance)
- Electrical connection
- Cable, 2-wire, 1.3 m (polyolefine screened)
- Enclosure rating
- IP54 per IEC 60529
- Packing quantity
- 30 pc
- Net weight
- 0.06 kg
- Approvals
- CE
- EAN
- 5702423199440
- Product group
- Sensors
- Ambient temperature max. [°C]
- 125 °C
- Ambient temperature max. [°F]
- 257 °F
- Approval
- CE
- Cable length [in]
- 51 in
- Cable length [m]
- 1.3 m
- Cable tempr. range [°C] [max]
- 125 °C
- Cable tempr. range [°C] [min]
- -40 °C
- Cable tempr. range [°F] [max]
- 257 °F
- Cable tempr. range [°F] [min]
- -40 °F
- Cable type
- Polyolefine, screened
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Connection material
- AISI 303
- Connection type
- M
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical connection size
- 2 wire
- Enclosure rating IP
- IP54
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- In scope of WEEE
- Yes
- Insertion length [in]
- 0.472 in
- Insertion length [mm]
- 12 mm
- Insertion type
- Fixed
- Measuring range [°C] [max]
- 150 °C
- Measuring range [°C] [min]
- -50 °C
- Measuring range [°F] [max]
- 302 °F
- Measuring range [°F] [min]
- -58 °F
- Process connection Male/Female
- Male
- Process connection material
- Stainless steel
- Process connection size
- 6x1
- Process connection standard
- ISO 965
- Process connection type
- M
- Protection tube diameter [in]
- 0.15 in
- Protection tube diameter [mm]
- 3.8 mm
- Protection tube material
- AISI 303
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Sensor elem. resistance [Ohm]
- 100 Ohm
- Sensor element [pc]
- 1 pc
- Sensor element standard
- EN 60751
- Sensor element tolerance
- Class B
- Sensor element type
- Pt
- Sensor Insert
- Fixed
- Temperature range [°C] [max]
- 150 °C
- Temperature range [°C] [min]
- -50 °C
- Temperature range [°F] [max]
- 302 °F
- Temperature range [°F] [min]
- -58 °F
- Wires [pcs]
- 2 pc
Standards & Compliance
- Size / Series
- 12 mm insertion
- Material
- AISI 303 stainless steel
- Thread Standard
- ISO 965
- Temperature Range
- -50 to +150 C (-58 to +302 F)
- IP Rating
- IP54
- HS Code
- 9025.19
Compatibility & Fitment
MBT 3270 insertion sensor. Confirm insertion length (12 mm insertion), process thread (M6x1) and element (Pt 100 100 ohm) match the pocket and controller input.
Product Documentation
More from Danfoss
Danfoss
Danfoss MBT 5722 temperature sensor, Pt 100 100 ohm, flexible probe, brass process connection
084Z7239
Danfoss

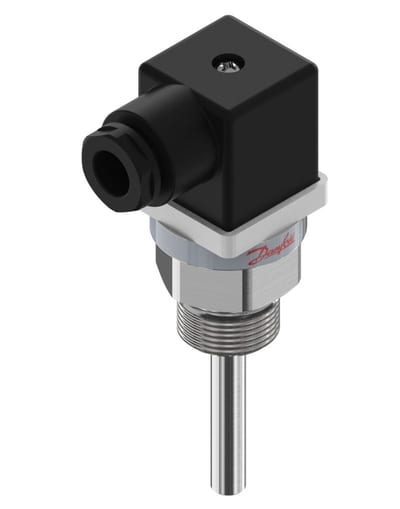

Danfoss MBT 3270 temperature sensor, PTC 80 ohm, 53 mm insertion, G 1/2 process connection
084Z7243
Danfoss
Danfoss MBT 120 sensor pocket (thermowell), 200 mm insertion, G 1/2 process connection, AISI 316 Ti 11 mm
084Z7261
Danfoss

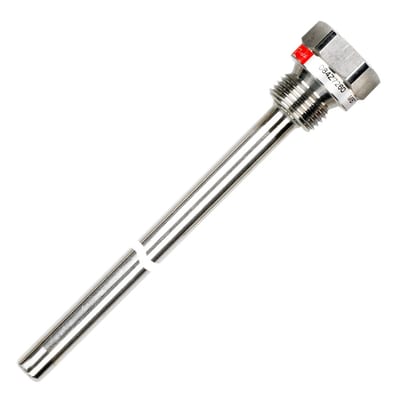

Danfoss MBT 120 sensor pocket (thermowell), 250 mm insertion, G 1/2 process connection, AISI 316 Ti 11 mm
084Z7262
Danfoss

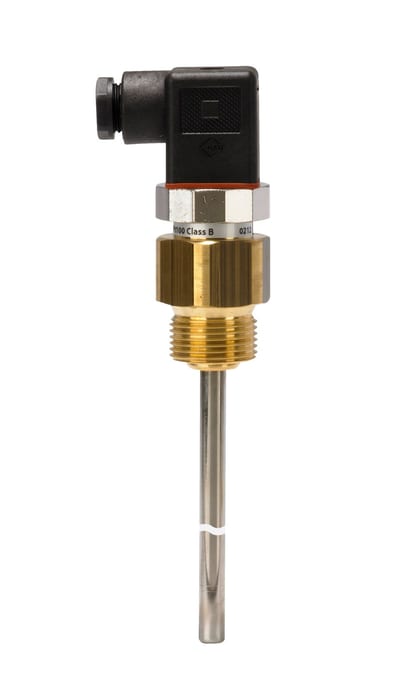

Danfoss MBT 5310 temperature sensor, Pt 100 100 ohm, 195-210 mm adjustable insertion, G 3/4 process connection
084Z7263
Danfoss

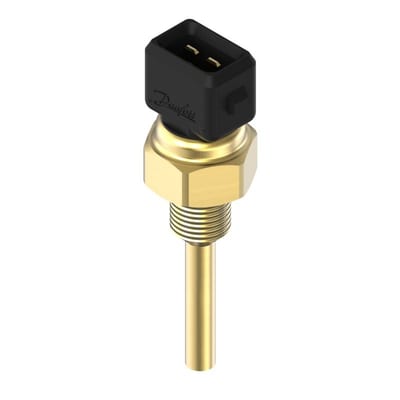

Danfoss MBT 3270 temperature sensor, NTC 3000 ohm, 37 mm insertion, M10X1 process connection
084Z7269
Danfoss

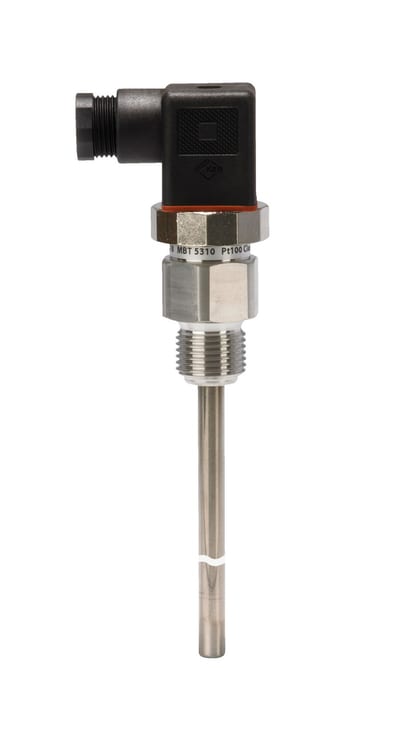

Danfoss MBT 5310 temperature sensor, Pt 100 100 ohm, 116-128 mm adjustable insertion, G 1/2 process connection
084Z7276
Danfoss

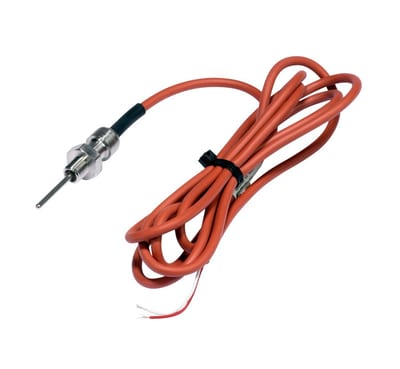

Danfoss MBT 3270 temperature sensor, Pt 100 100 ohm, 20 mm insertion, G 1/4 process connection
